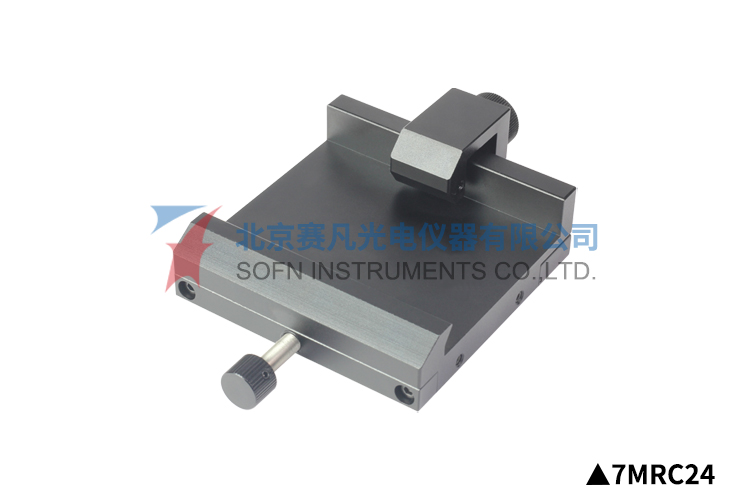

7MRC24 Rail Carrier
Model：
7MRC24
Characteristics：
1、Used with 7MR2 series sliding rails to make coaxial optical system; 2、Rigid locking handwheel with plastic head,firm locking without hurting rails; 3、Multi supports can be used simultaneously; 4、With adjustable nut to adjust height and horizontal; 5、Multiple mounting holes with standard pitch,strong applicability.

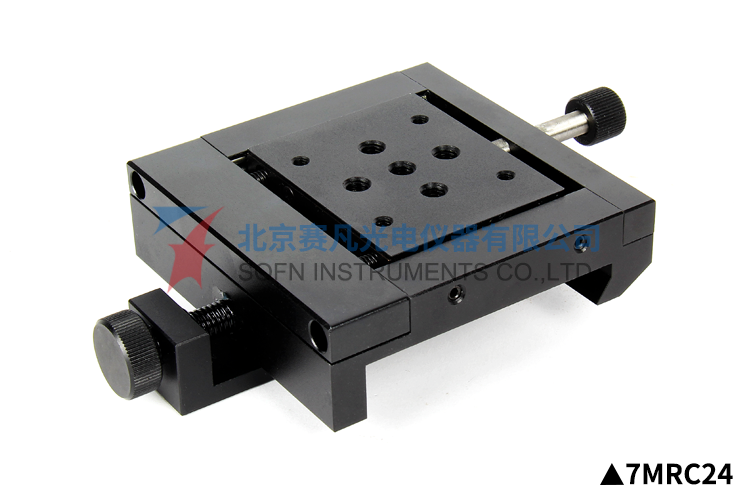

7MRC24 Rail Carrier
Characteristics:

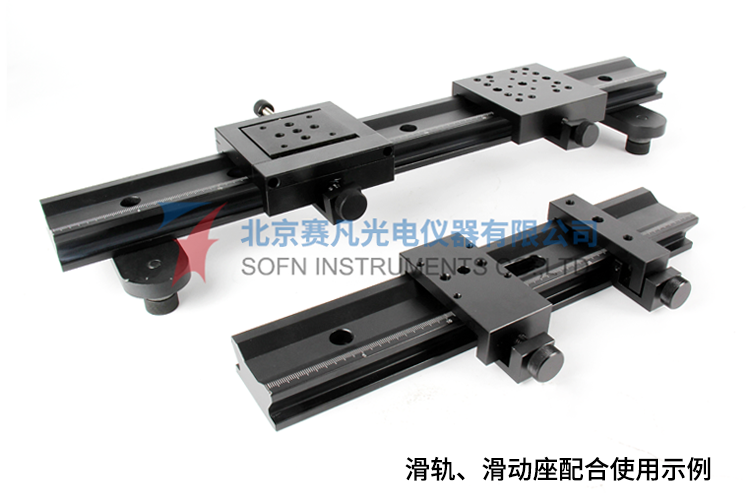

1、Used with 7MR2 series sliding rails to make coaxial optical system;
2、Rigid locking handwheel with plastic head,firm locking without hurting rails;
3、Multi supports can be used simultaneously;
4、With adjustable nut to adjust height and horizontal;
5、Multiple mounting holes with standard pitch,strong applicability.
Ancillary products:

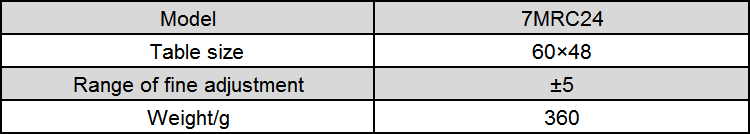

Specifications:

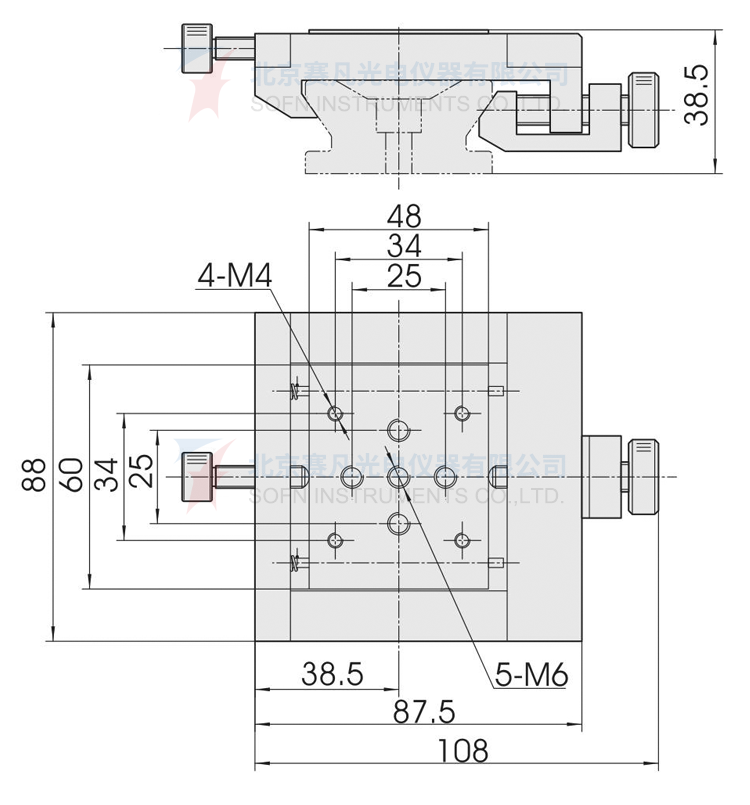

Product drawings:
7MRC24
