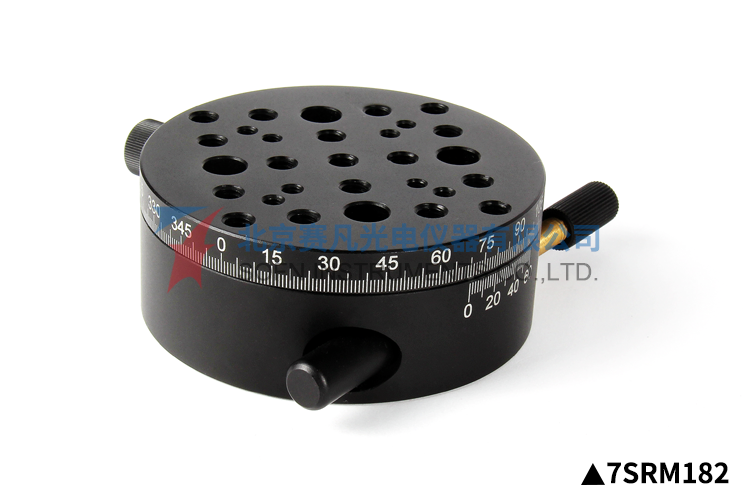

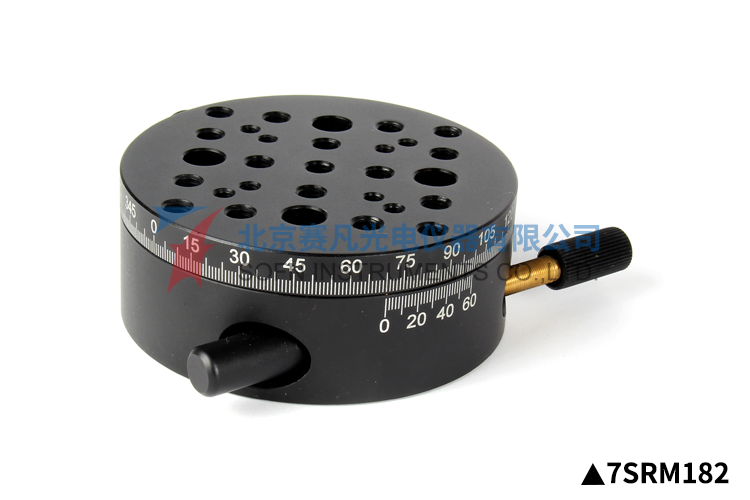

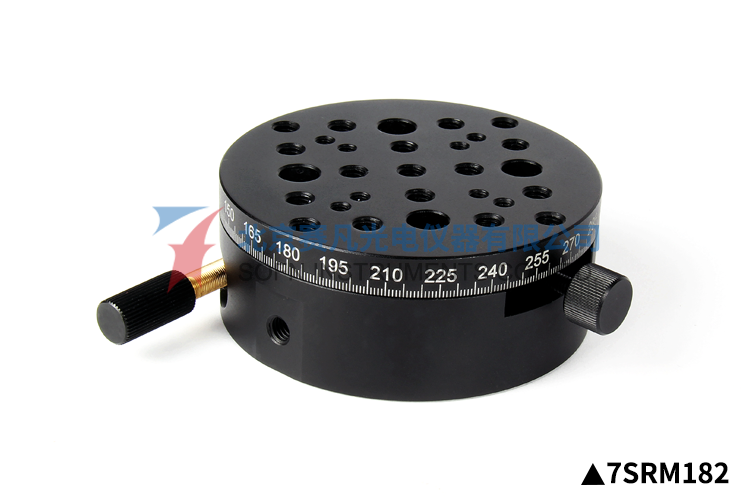

7SRM182/7SRM182L Precision Rotary Stages
7SRM182/7SRM182L
1、Precision shafting,good accuracy and stability; 2、Rotatory of 360° with reticle for reading; 3、Fine adjustment by fine pitch screw in certain range,spring for reset,high resolution and no backlash; 4、Mounting holes with standard distance are distributed on the surface and the base for installation and combination.
7SRM182/7SRM182L Precision Rotary Stages
Characteristic:
1、Precision shafting,good accuracy and stability;
2、Rotatory of 360° with reticle for reading;
3、Fine adjustment by fine pitch screw in certain range,spring for reset,high resolution and no backlash;
4、Mounting holes with standard distance are distributed on the surface and the base for installation and combination.
Ancillary products:

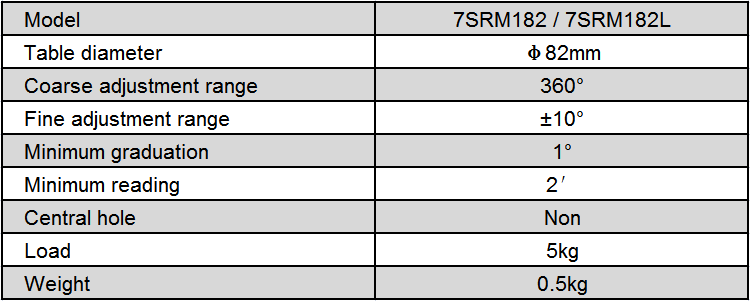

Specifications:

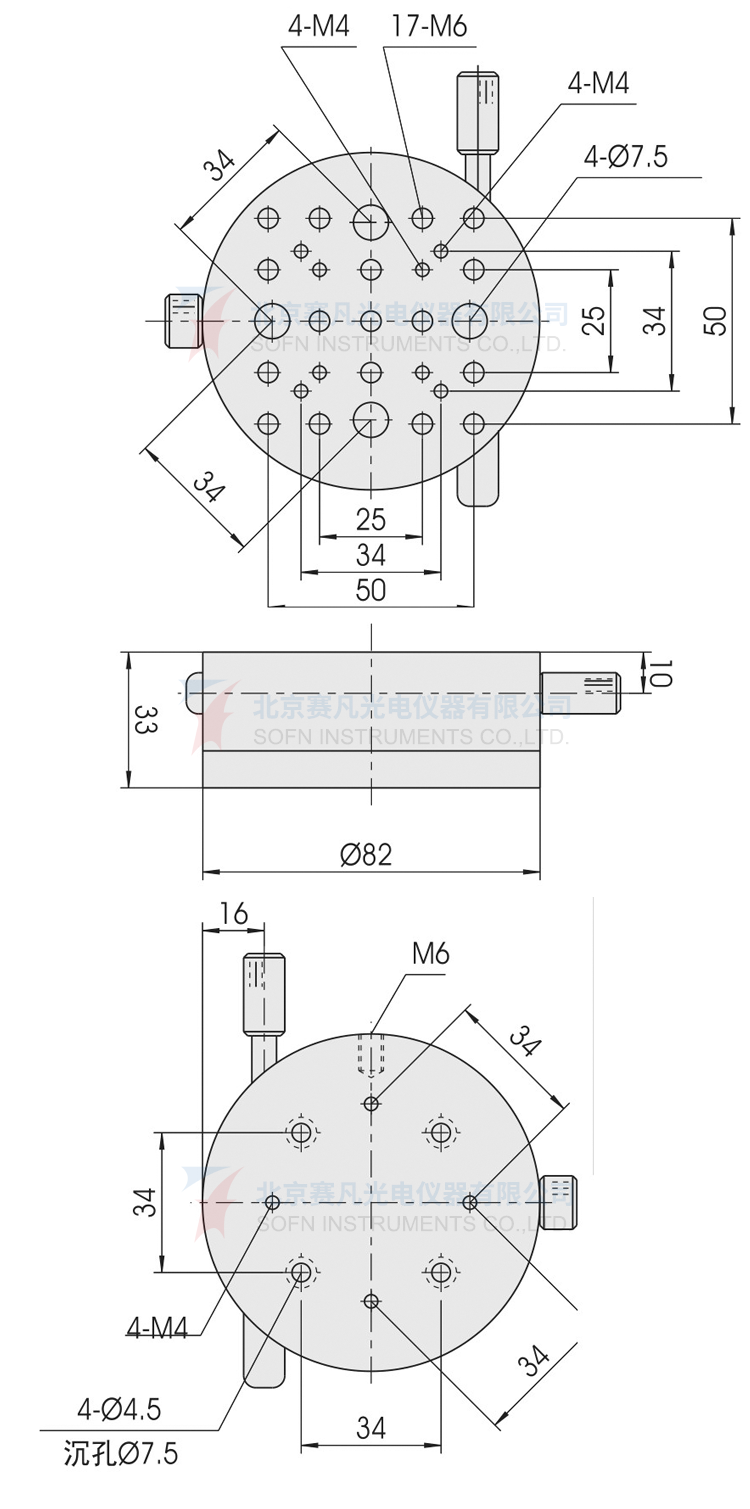

Product drawings:
7SRM182
