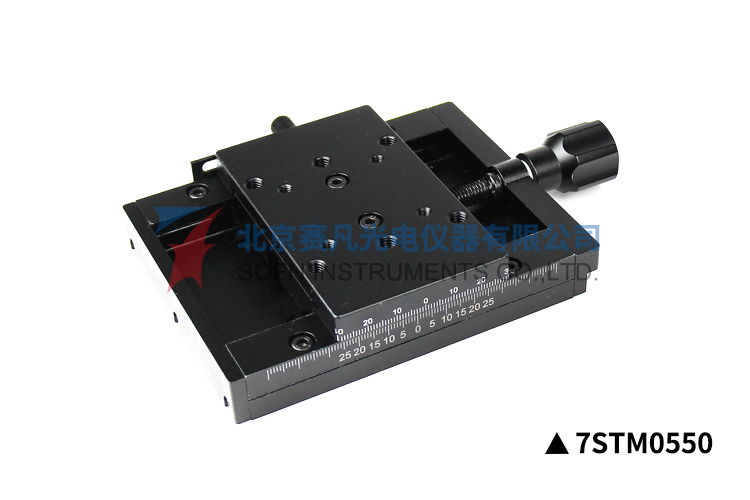

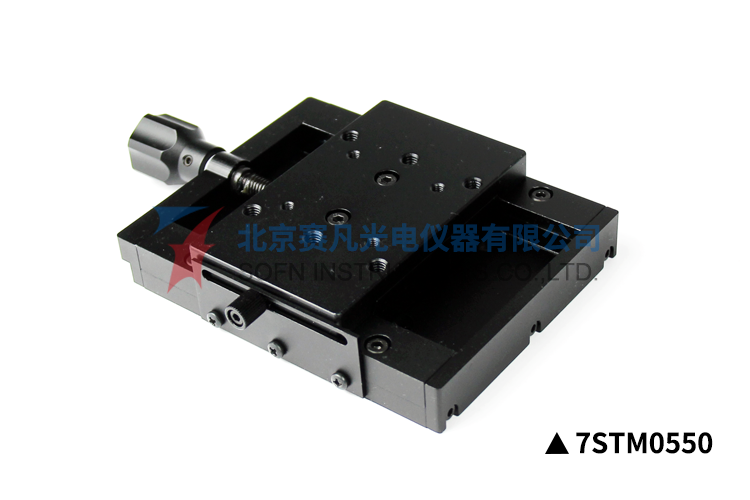

7STM0550 Precision Translation Stage
7STM0550
1、Dovetail guid with big load bearing; 2、Translation by fine grindong screw rod with large driving force; 3、Mounting holes with standard distance are distributed on the surface and the base for installation and combination; 4、Can be usde vertically and have the capable of self-locking; 5、Can be combined with other series stages to compose a multi dimensional.
7STM0550 Steady Precision Translation Stage
Characteristics:
1、Dovetail guid with big load bearing;
2、Translation by fine grindong screw rod with large driving force;
3、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
4、Can be usde vertically and have the capable of self-locking;
5、Can be combined with other series stages to compose a multi dimensional.
Ancillary products:

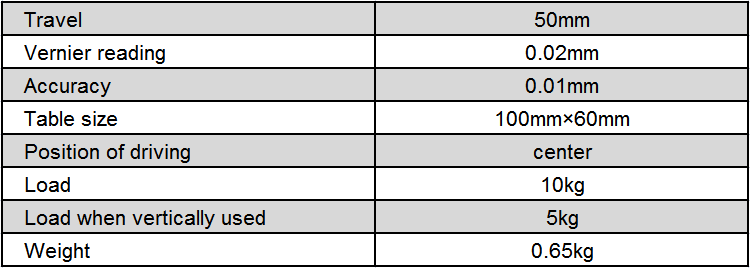

Specifications:

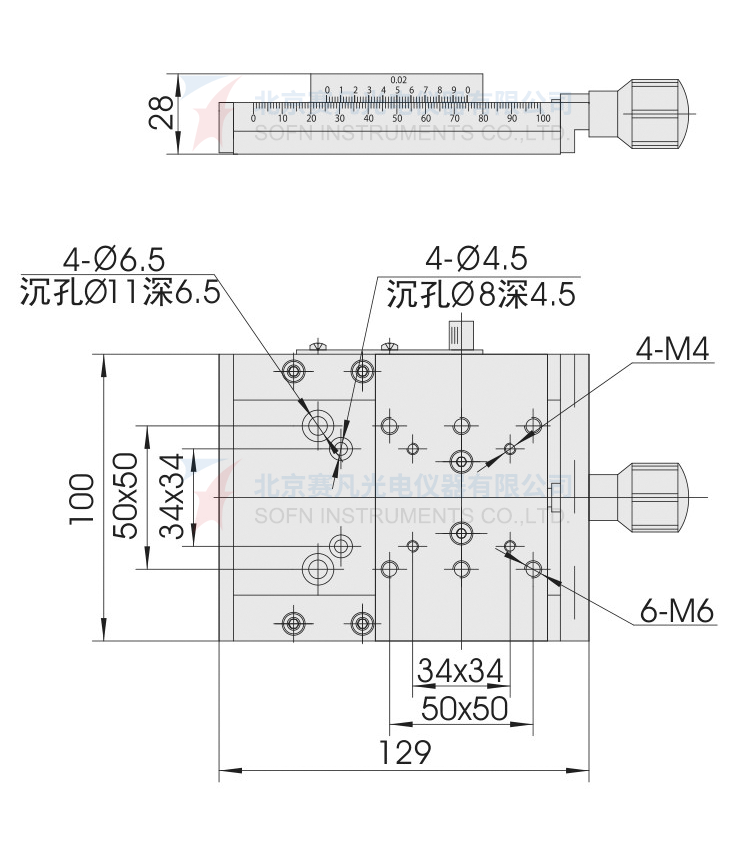

Product drawings:
7STM0550
