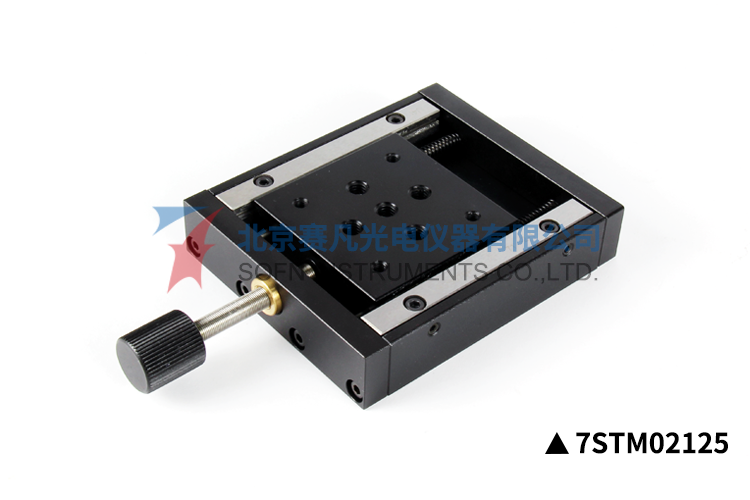

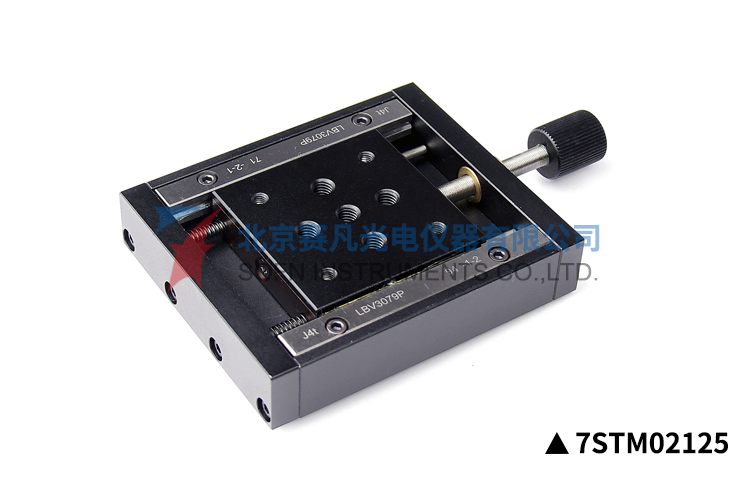

7STM02125 Precision Translation Stage
7STM02125
1、Precision steel ball with grinding steel rods,high precision,low cost and low load bearing; 2、The displacement adjustment adopts fine pitch screw; 3、Fine pitch screw in the center of the stage,convenient for operation; 4、Spring reset to eliminate the axial clearance; 5、Mounting holes with standard distance are distributed on the surface and the base for installation and combination; 6、Can be combined with other series to compose a multi dimensional adjusting rack.
7STM02125 Lithe Precision Translation Stage
Characteristics:
1、Precision steel ball with grinding steel rods,high precision,low cost and low load bearing;
2、The displacement adjustment adopts fine pitch screw;
3、Fine pitch screw in the center of the stage,convenient for operation;
4、Spring reset to eliminate the axial clearance;
5、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
6、Can be combined with other series to compose a multi dimensional adjusting rack.
Ancillary products:

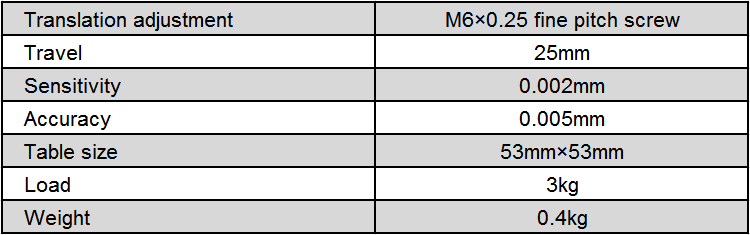

Specifications:

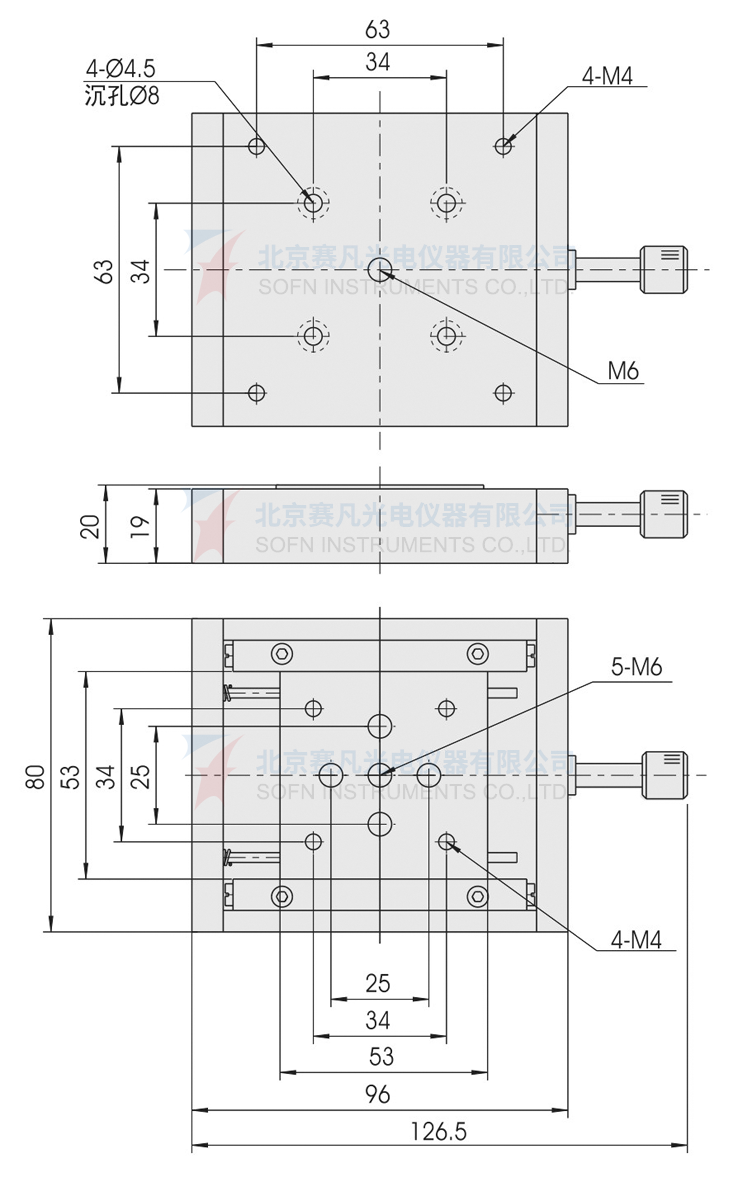

Product drawings:
7STM02125
