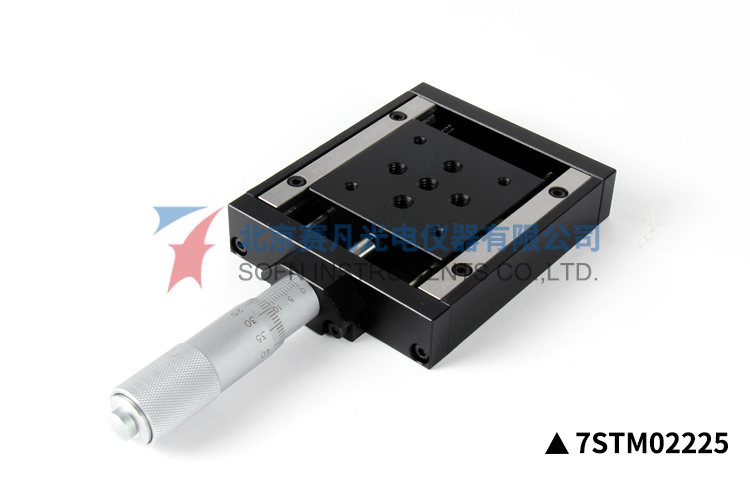

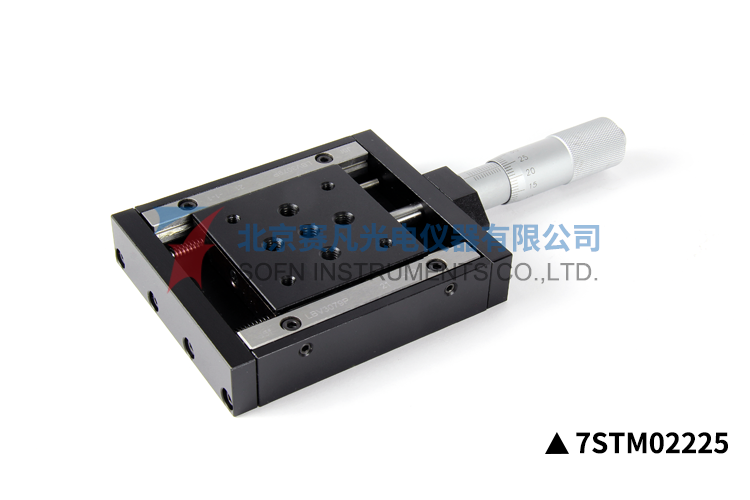

7STM02225 Precision Translation Stage
7STM02225
1、Precision steel ball with grinding steel rods,high precision,low cost and low load bearing; 2、The displacement adjustment adopts micrometer head; 3、Micrometer head in the center of the stage,convenient for operation; 4、Spring reset to eliminate the axial clearance; 5、Mounting holes with standard distance are distributed on the surface and the base for installation and combination; 6、Can be combined with other series to compose a multi dimensional adjusting rack.
7STM02225 Lithe Precision Translation Stage
Characteristics:
1、Precision steel ball with grinding steel rods,high precision,low cost and low load bearing;
2、The displacement adjustment adopts micrometer head;
3、Micrometer head in the center of the stage,convenient for operation;
4、Spring reset to eliminate the axial clearance;
5、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
6、Can be combined with other series to compose a multi dimensional adjusting rack.
Ancillary products:

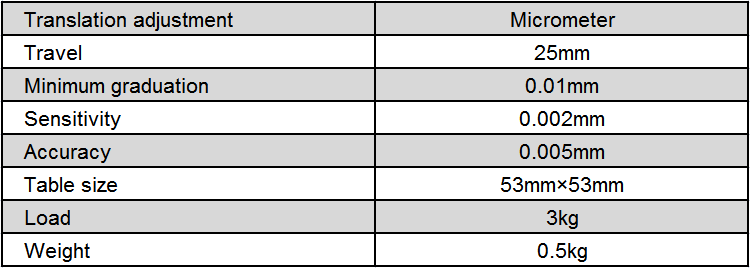

Specifications:
Product drawings:
7STM02225
