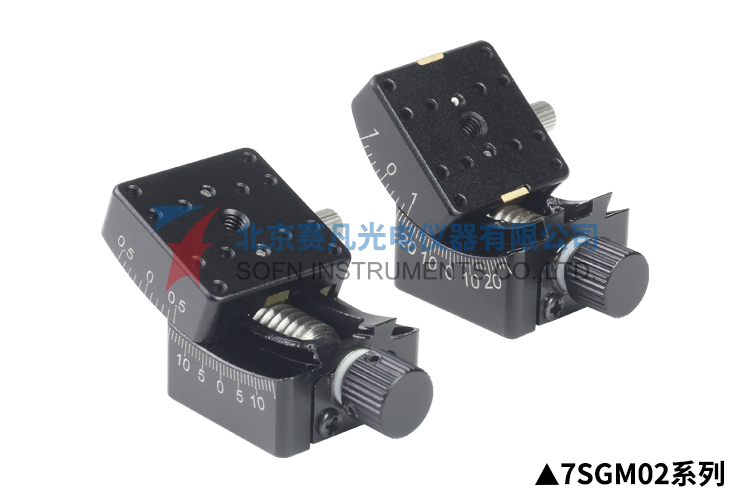

7SGM02 Series Goniometers

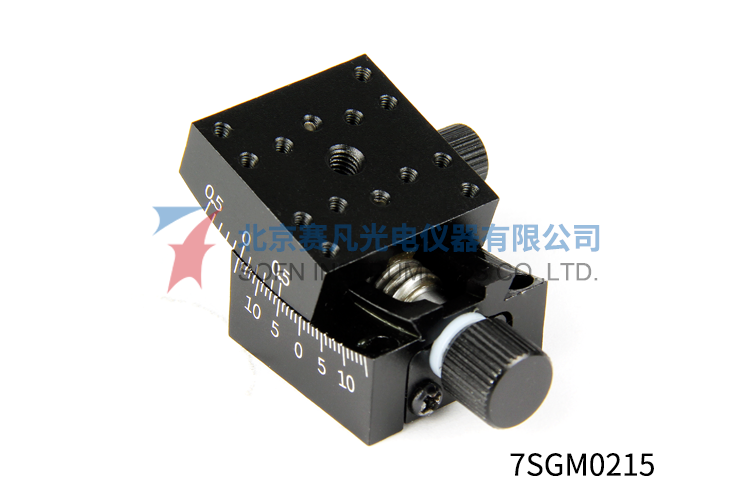

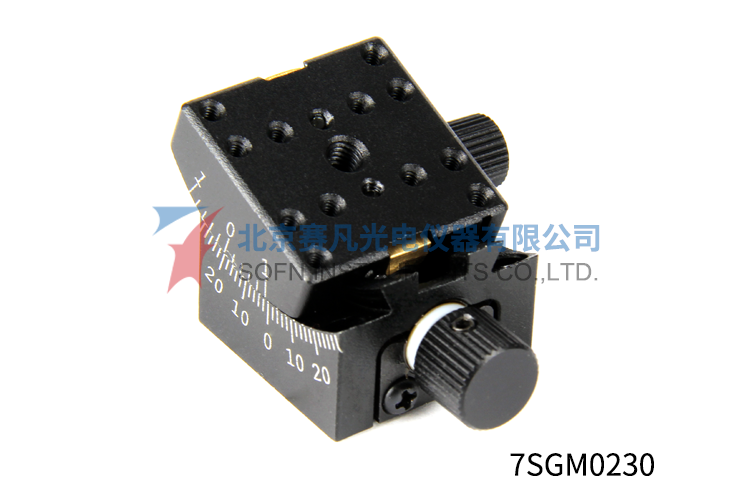

7SGM0215、7SGM0230
1、Provides rotation angle adjustment; 2、Compact structure,space saving; 3、Mounting surface is horizontally placed,convenient for installation and fixation; 4、Paired design,after superposition rotary center is in the same point,orthongnal biaxial rotating adjustment can be made; 5、Driving by worm gear paired,dovetail guide rail,comfortable movement,precise and reliable; 6、Locking by hand wheel,safe and reliable.
7SGM02 Series Goniometers
Characteristics:
1、Provides rotation angle adjustment;
2、Compact structure,space saving;
3、Mounting surface is horizontally placed,convenient for installation and fixation;

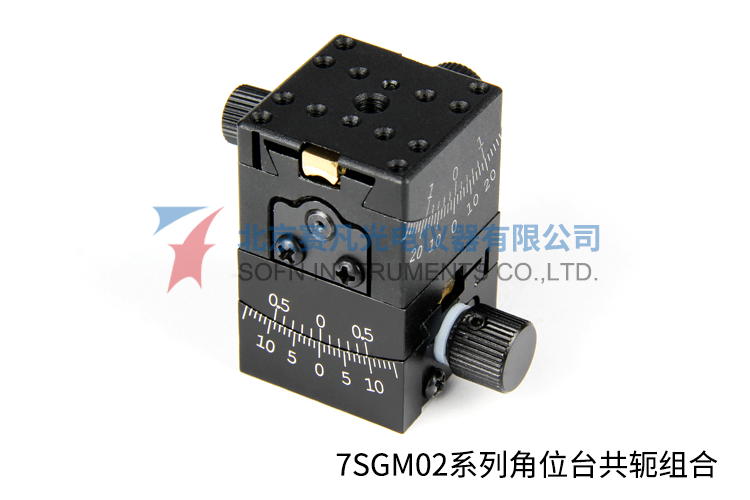

4、Paired design,after superposition rotary center is in the same point,orthongnal biaxial rotating adjustment can be made;
5、Driving by worm gear paired,dovetail guide rail,comfortable movement,precise and reliable;
6、Locking by hand wheel,safe and reliable.
Ancillary product:

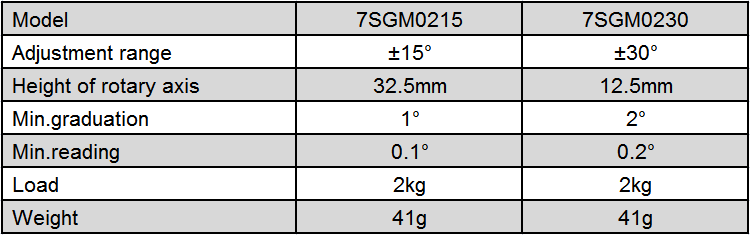

Specifications:

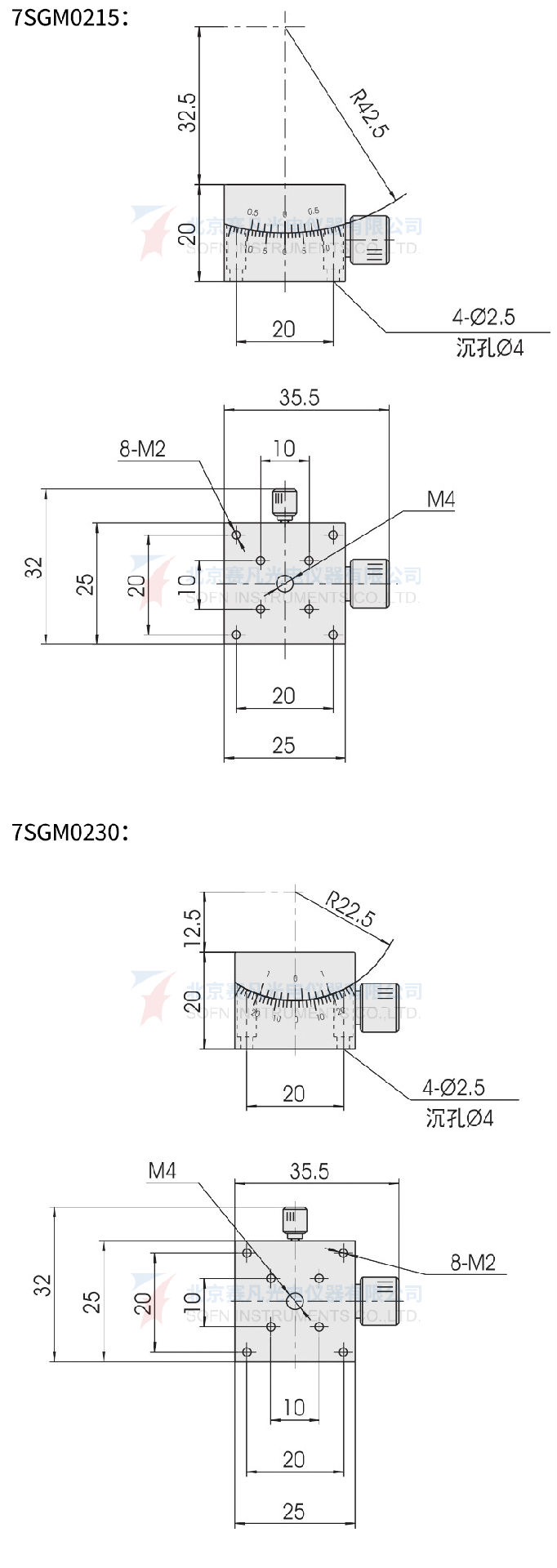

Product drawings:
7SGM0215、7SGM0230
