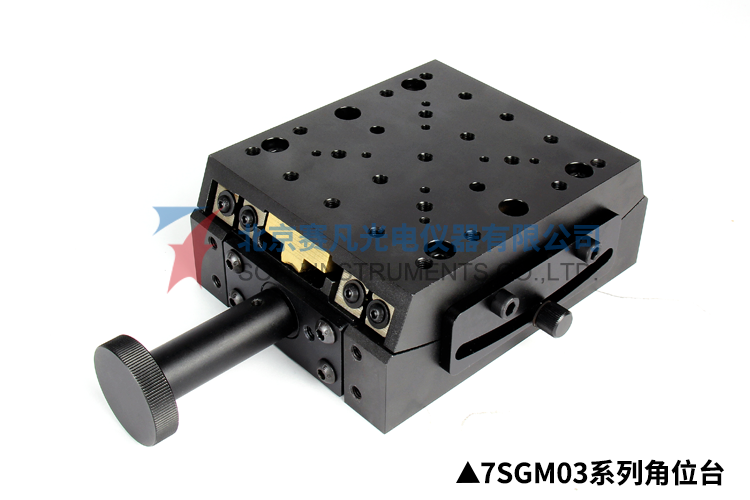

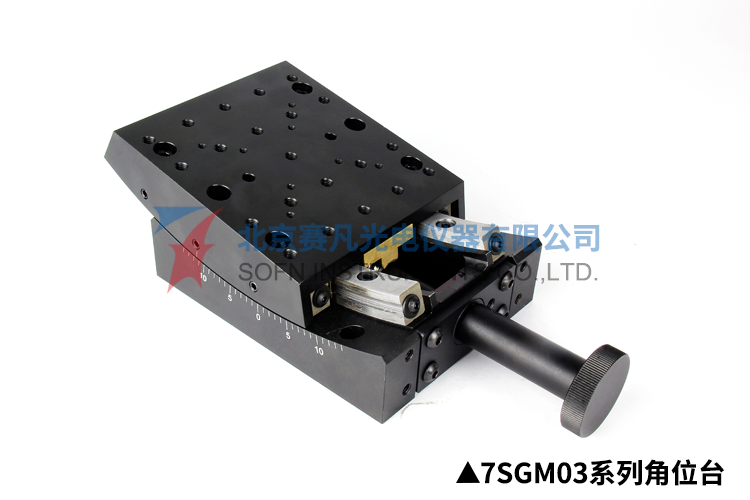

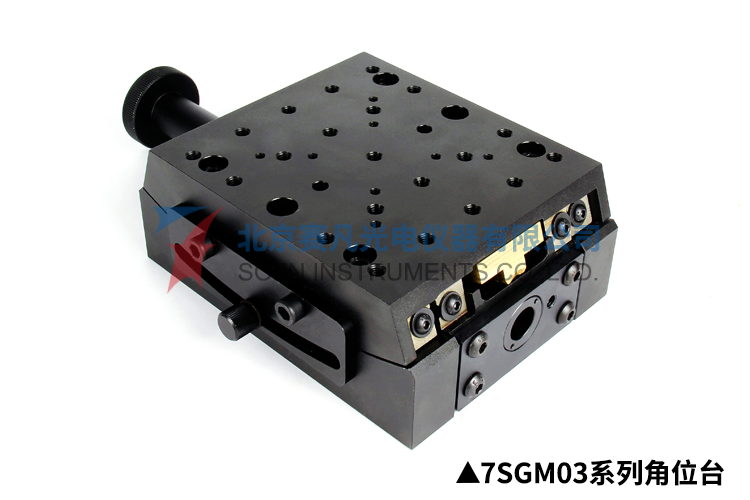

7SGM03 Series Goniometers
7SGM0310、7SGM0315
1、Rotary sdjustment; 2、Horizontal mounting surface,convenient for installation and fixing; 3、Design for paired use,rotary center is the same point after superposition, suitable for orthogonal biaxial rotating adjustment; 4、Driving by worm gear paired,ring balls guide rail combined with annular steel,comfortable movement,precide and reliable; 5、Locking by hand wheel,safe and reliable.
7SGM03 Series Goniometers
Characteristics:
1、Rotary sdjustment;
2、Horizontal mounting surface,convenient for installation and fixing;
3、Design for paired use,rotary center is the same point after superposition, suitable for orthogonal biaxial rotating adjustment;
4、Driving by worm gear paired,ring balls guide rail combined with annular steel,comfortable movement,precide and reliable;
5、Locking by hand wheel,safe and reliable.
Ancillary product:

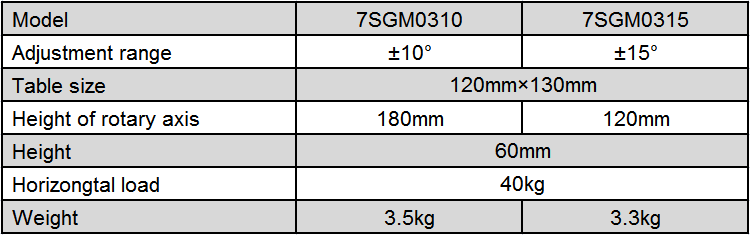

Specifications:

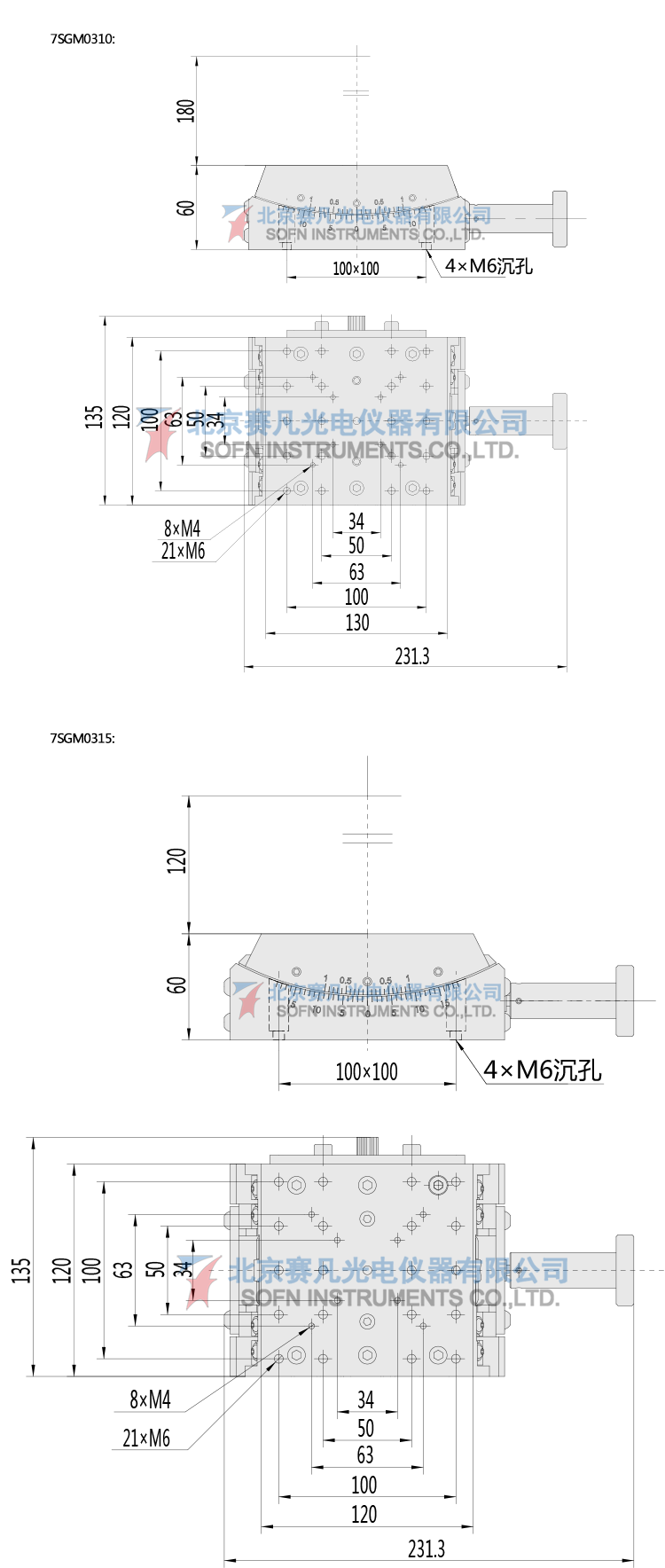

Product drawings:
7SGM0310、7SGM0315
