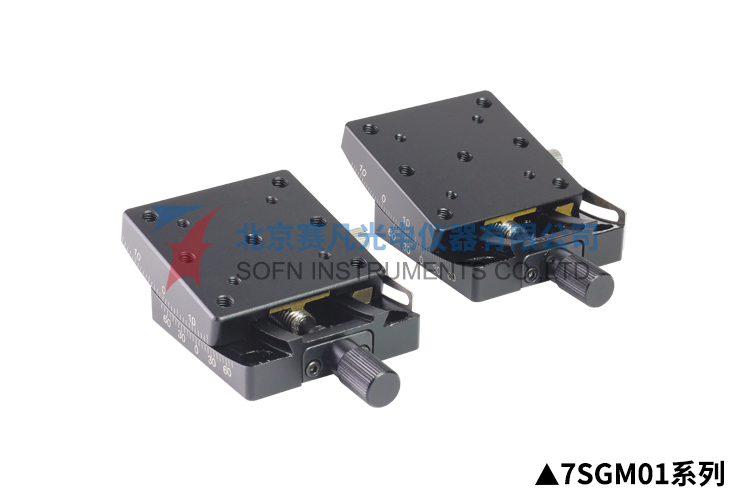

7SGM01 Series Goniometers
7SGM0110、7SGM0115
1、Rotary adjustment; 2、Horizontal mounting surface,convenient for installation and fixing; 3、Design for paired use,rotary center is the same point after superposition,suitable for orthogonal biaxial rotating adjustment; 4、Driving by worm gear paired,dovetail guide rail,comfortable movement,precise and reliable; 5、Locking by hand wheel,safe and reliable.
7SGM01 Series Goniometers
Characteristics:
1、Rotary adjustment;
2、Horizontal mounting surface,convenient for installation and fixing;
3、Design for paired use,rotary center is the same point after superposition,suitable for orthogonal biaxial rotating adjustment;
4、Driving by worm gear paired,dovetail guide rail,comfortable movement,precise and reliable;
5、Locking by hand wheel,safe and reliable.
Ancillary product:

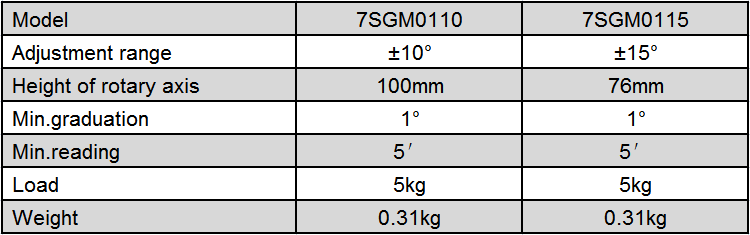

Specifications:

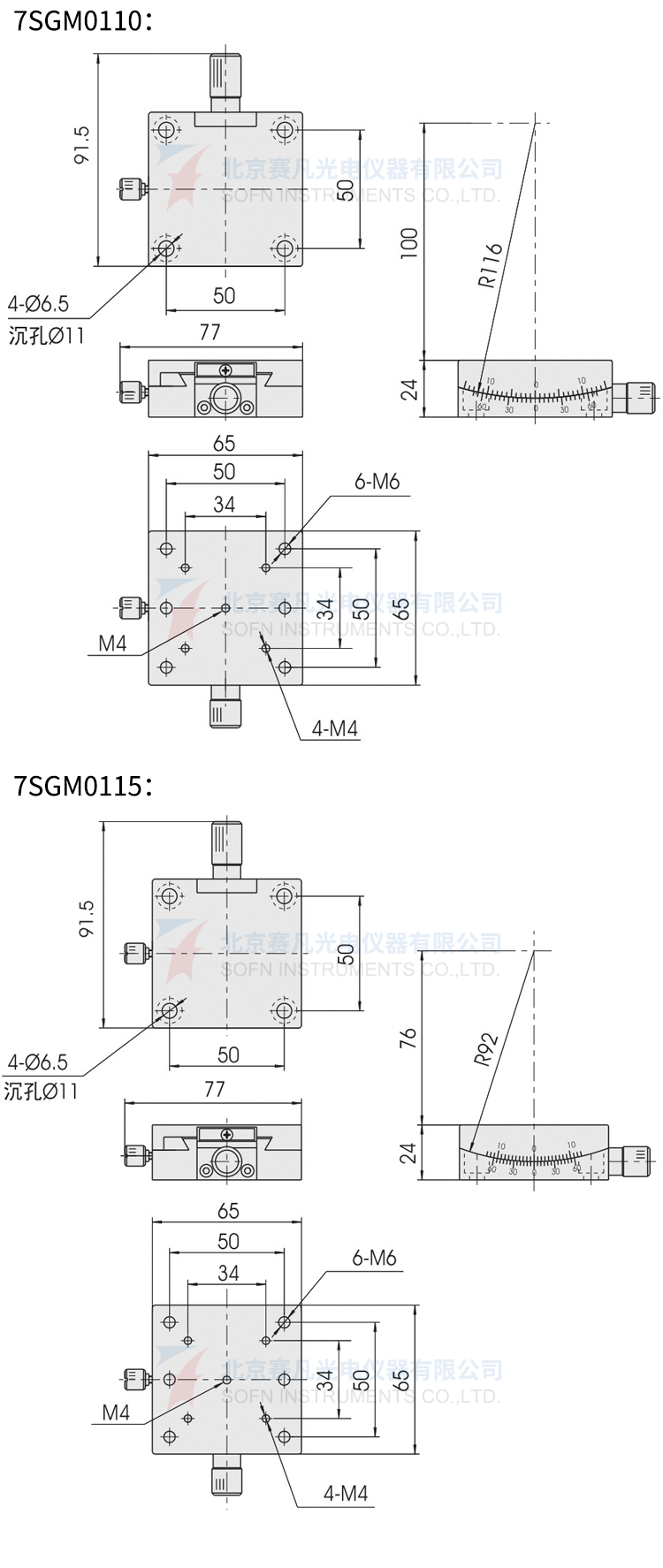

Product drawings:

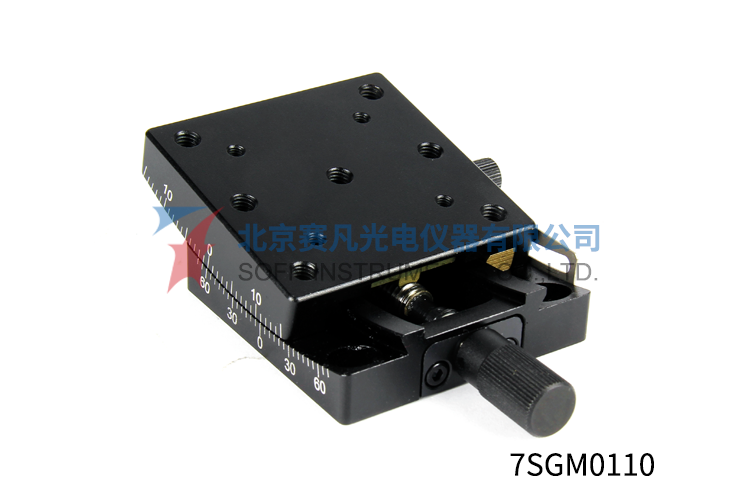

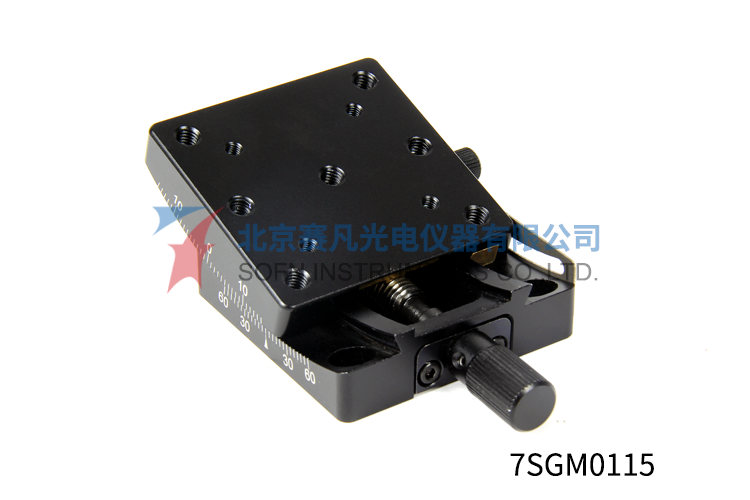

7SGM0110、7SGM0115
