Home > PRODUCTS > Stages > Precision vertical translation stages

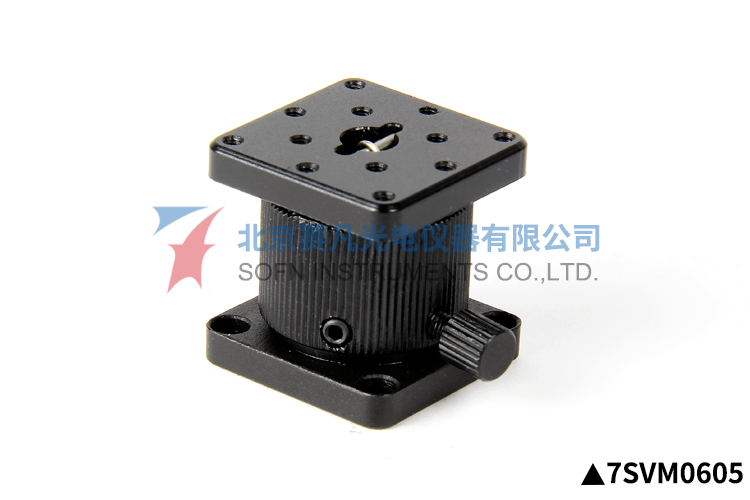

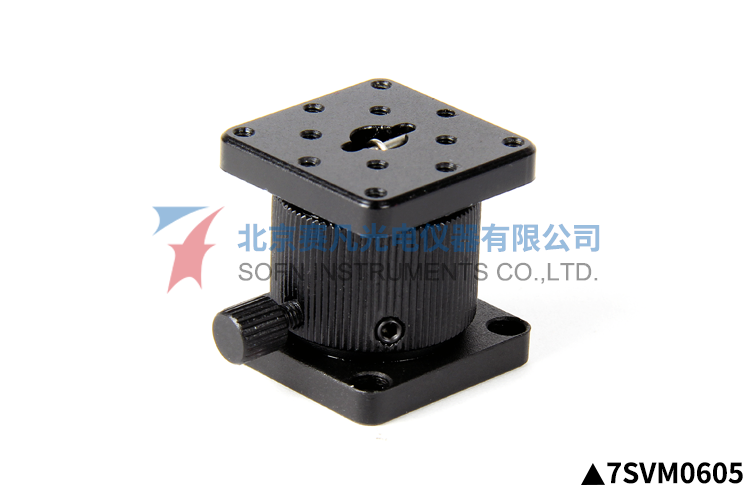

    7SVM0605 Precision Vertical Translation Stage

    Model：

    7SVM0605

    Characteristics：

    1、Ultra small volume,saving space; 2、Driving by precision screw,spring for reset,eliminates backlash.

    Product?Inquiry Product Inquiry
    CAD?Download CAD Download
    Overviews Details

    7SVM0605 Precision Vertical Translation Stage

    Characteristics:

    1、Ultra small volume,saving space;

    2、Driving by precision screw,spring for reset,eliminates backlash.


    Ancillary product:

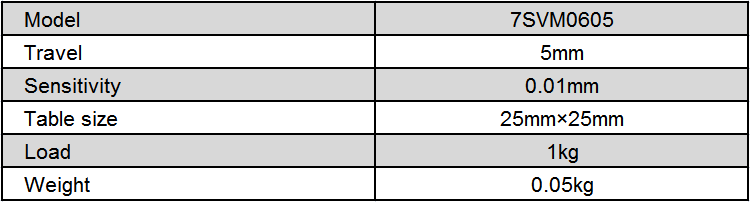

    Specifications:

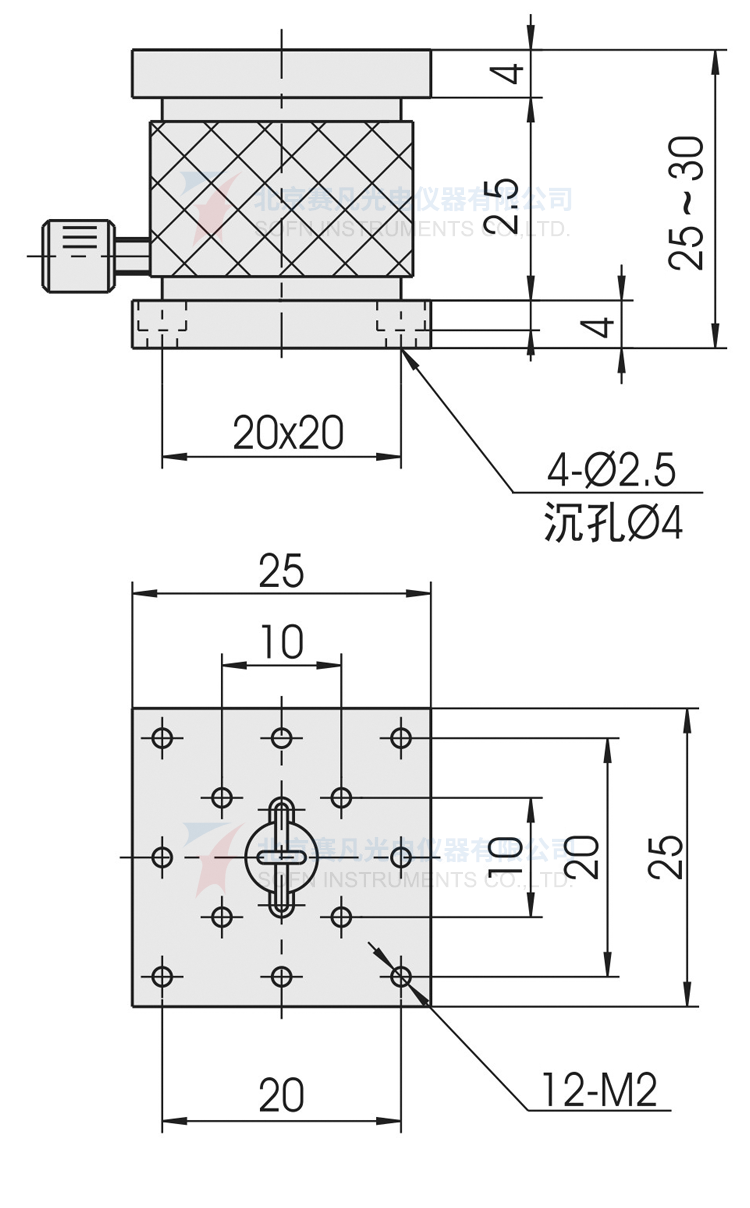

    Product drawings:

    7SVM0605
