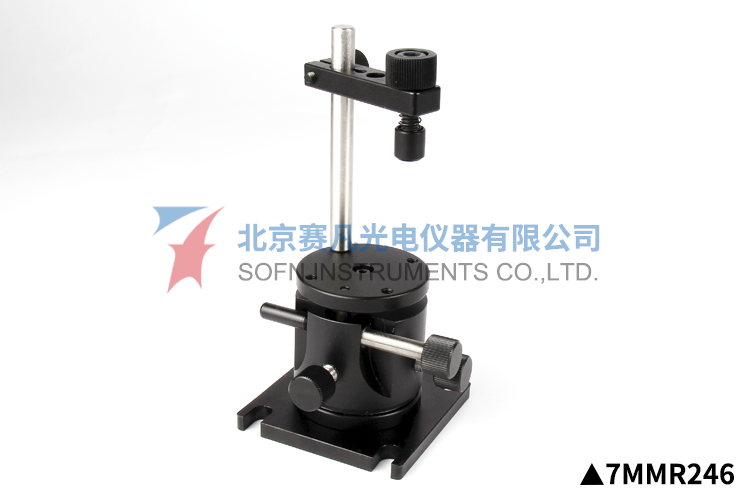

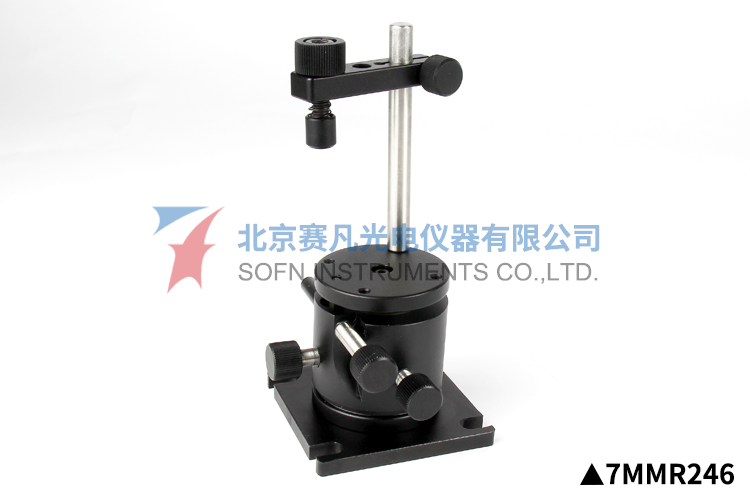

7MMR246 Three-dimensional Prism Mount
Model：
7MMR246
Characteristics：
1、Integral design with compact structure,provide three-dimentsional angle adjustment; 2、M6×0.25 fine thread for adjustment ,spring for reset; 3、Adjustable elastic device for clamping till rigidity,convenient and reliable.
7MMR246 Three-dimensional Prism Mount
Characteristics:
1、Integral design with compact structure,provide three-dimentsional angle adjustment;
2、M6×0.25 fine thread for adjustment ,spring for reset;
3、Adjustable elastic device for clamping till rigidity,convenient and reliable.
Ancillary products:

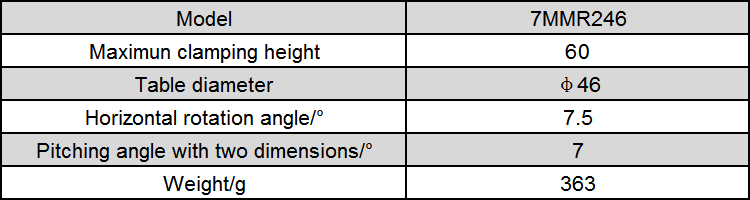

Specifications:

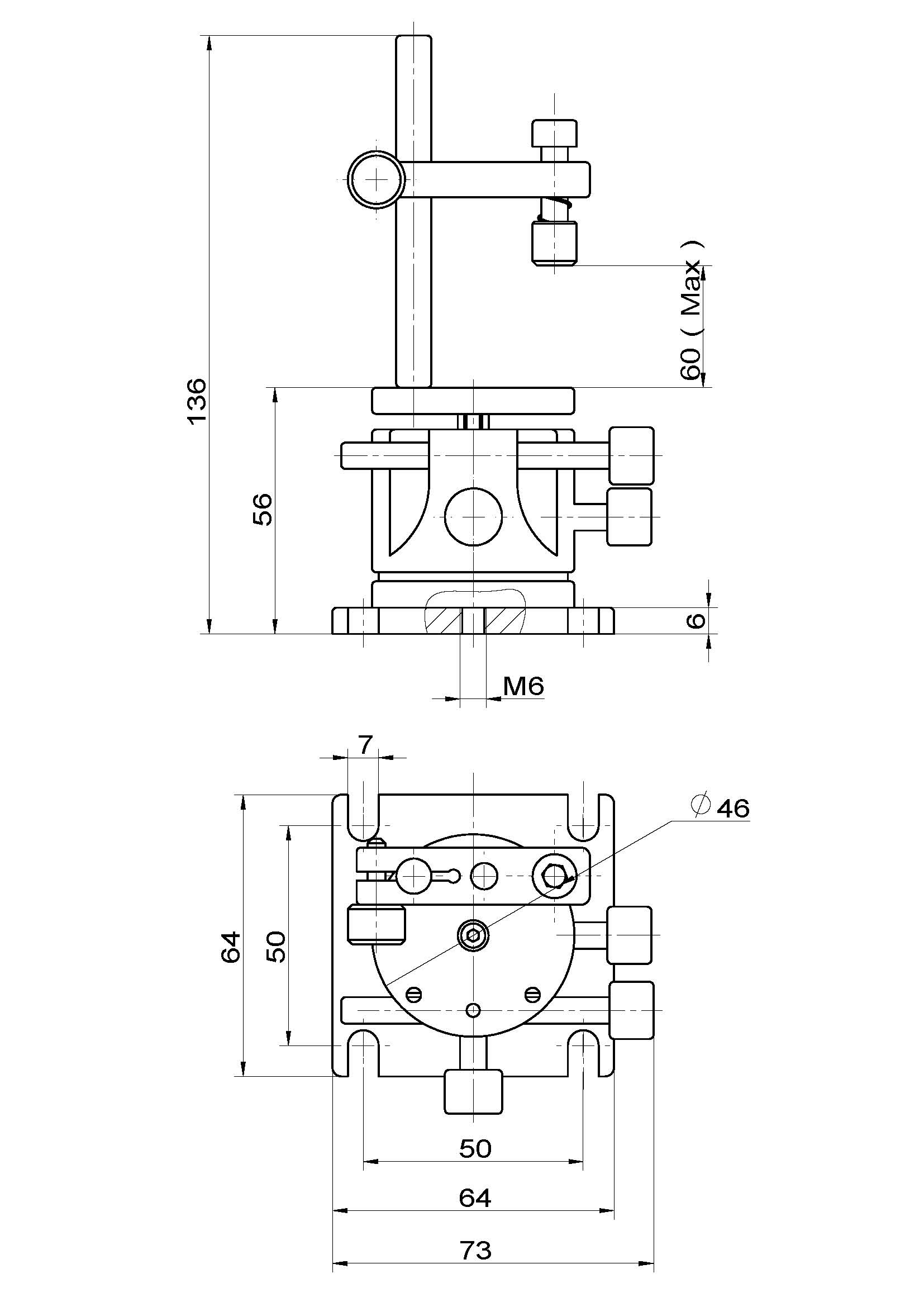

Product drawings:
7MMR246
