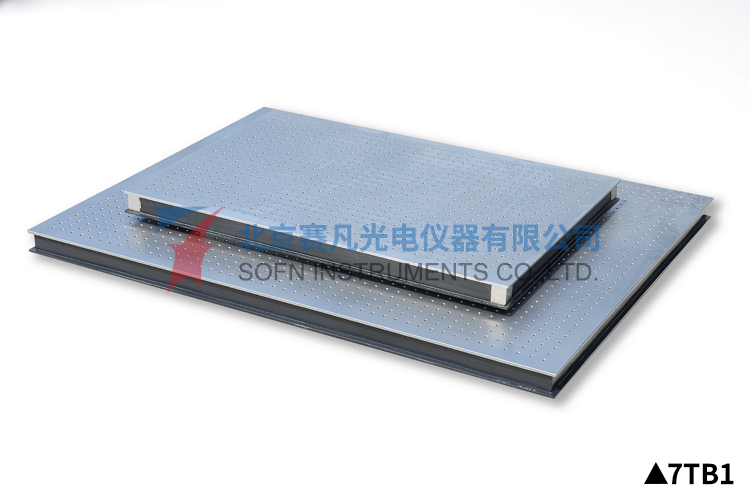

7TB1 series Traditional Optical Breadboards
7TB133、7TB1312、7TB166、7TB1612、7TB199、7TB1912
1、Ferromagnetic stainless steel table, special processing ensures high flatness without dazzling; 2、Magnetic, devices can be fixed on arbitrary position used together with the 7MBM series of magnetic bases; 3、M6 threaded holes array with distance 25mm in the surface for fixing device conveniently; 4、Three-layers structure, honeycomb support in the core, increasing rigidity, reducing weight and good anti-vibration.
7TB1 series Traditional Optical Breadboards
Characteristics:
1、Ferromagnetic stainless steel table, special processing ensures high flatness without dazzling;
2、Magnetic, devices can be fixed on arbitrary position used together with the 7MBM series of magnetic bases;
3、M6 threaded holes array with distance 25mm in the surface for fixing device conveniently;
4、Three-layers structure, honeycomb support in the core, increasing rigidity, reducing weight and good anti-vibration.
Ancillary products:

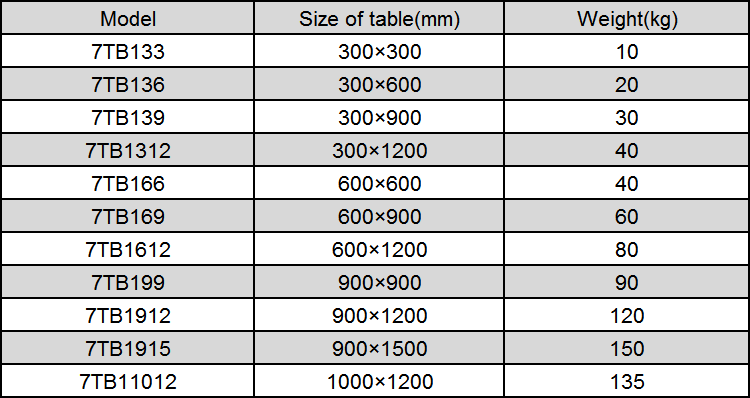

Specifications:

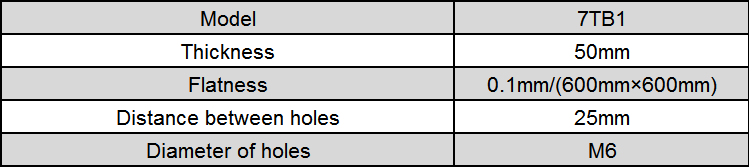

Parameters:

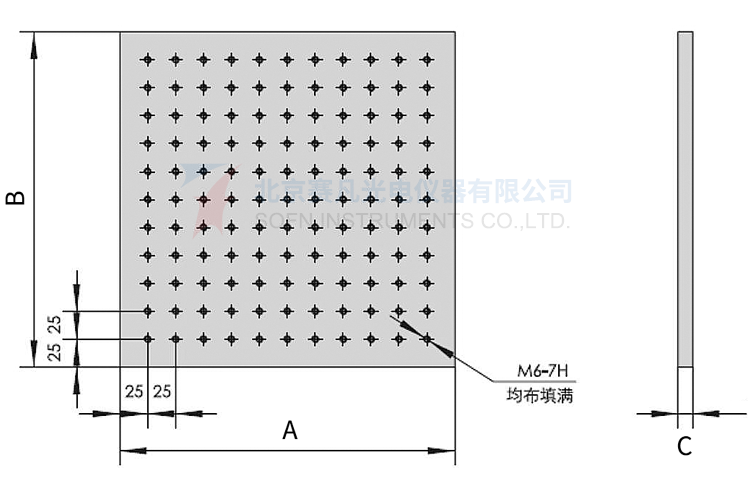

Product drawings:
7TB133、7TB136、7TB139、7TB1312、7TB166、7TB169、7TB1612、7TB199、7TB1912、7TB1915、7TB11012
