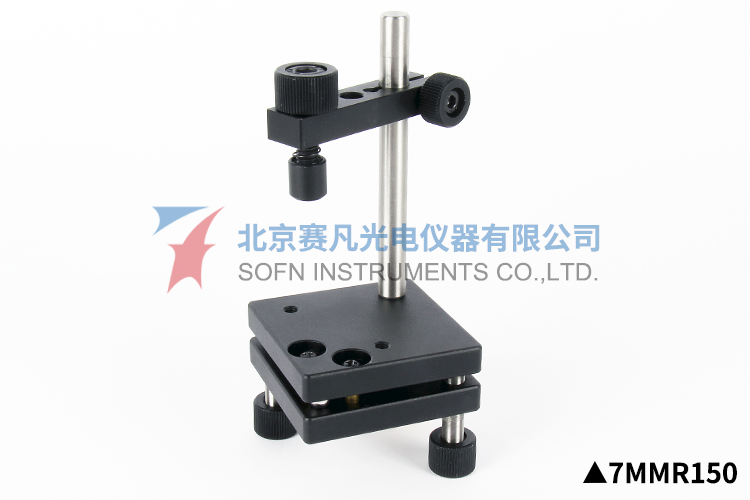

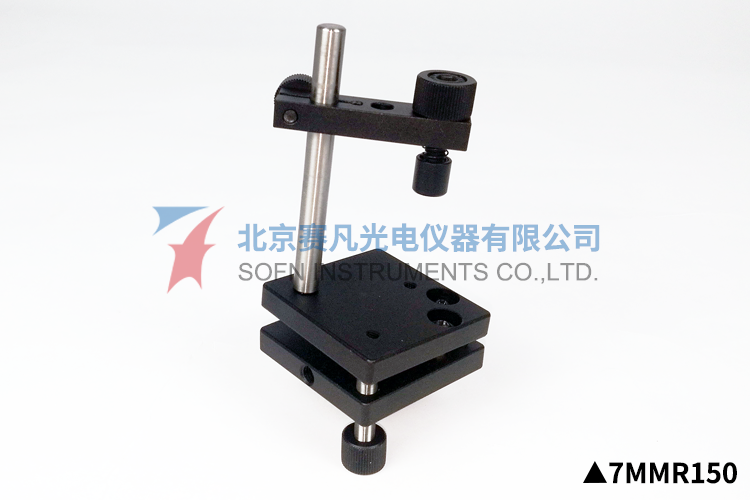

7MMR150 Two-dimensional Prism Mount
Model：
7MMR150
Characteristics：
1、Two-dimensional tilt adjustment for prism; 2、M6×0.25 fine thread for adjustment by,high precision; 3、Belleville spring for reset,good stability; 4、Adjustable elastic device for clamping till rigidity,convenient and reliable.
7MMR150 Two-dimensional Prism Mount
Characteristics:
1、Two-dimensional tilt adjustment for prism;
2、M6×0.25 fine thread for adjustment by,high precision;
3、Belleville spring for reset,good stability;
4、Adjustable elastic device for clamping till rigidity,convenient and reliable.

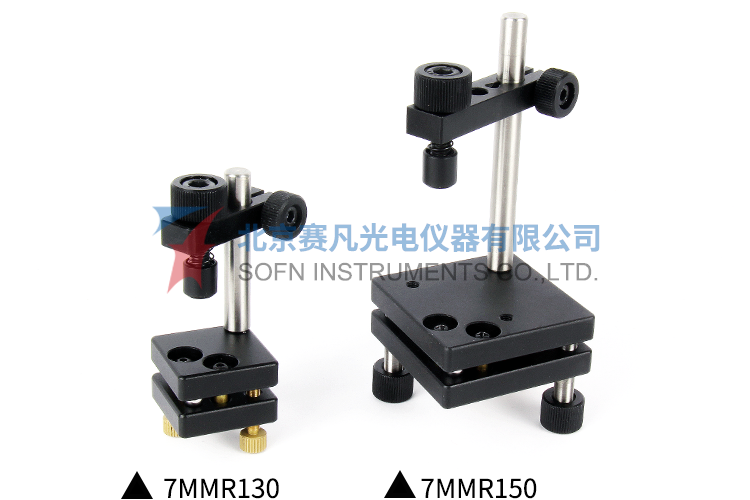

Ancillary products:

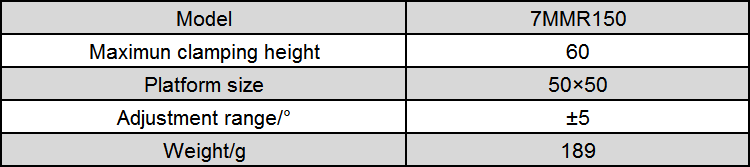

Specifications:

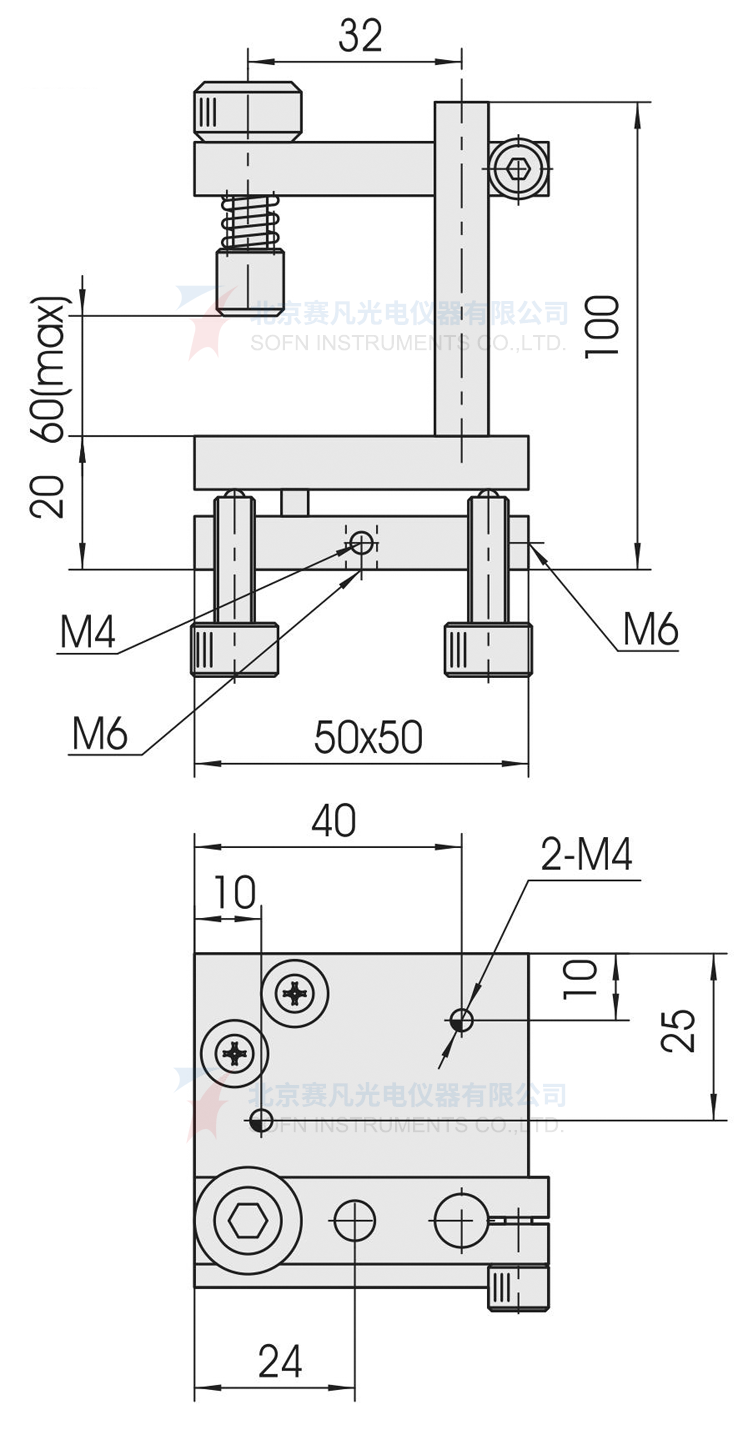

Product drawings:
7MMR150
