7STA03B Series Motorized Precision Translation Stages
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,series motion controllers for automatic control;
2、Driving by high quallty precision ball screw rod,good repeatability and accurary,long life;
3、Screw rod adopts three bearing mounting structure,locking the end of axis to prevent loose,suitable for high speed reciprocating use;
4、 Linear motion guide(square type,whole body is connected with the base plate),comfortable movement,large bearing capacity,suitable for single axis with heavy loading or for multi axis combination.
5、High quality dlastic coupling for connecting motor and ball screw rod,synchronous transmission and littke noise;
6、Hand wheel to adjust by manual;
7、With zero and limit switch,convenient for accurate positioning and protection;
8、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
9、Servo motor can be replaced for high speed or big load.
Ancillary product:

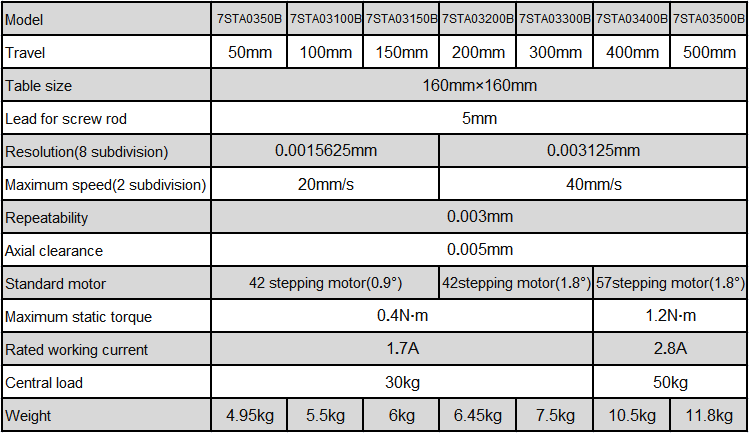

Specifications:

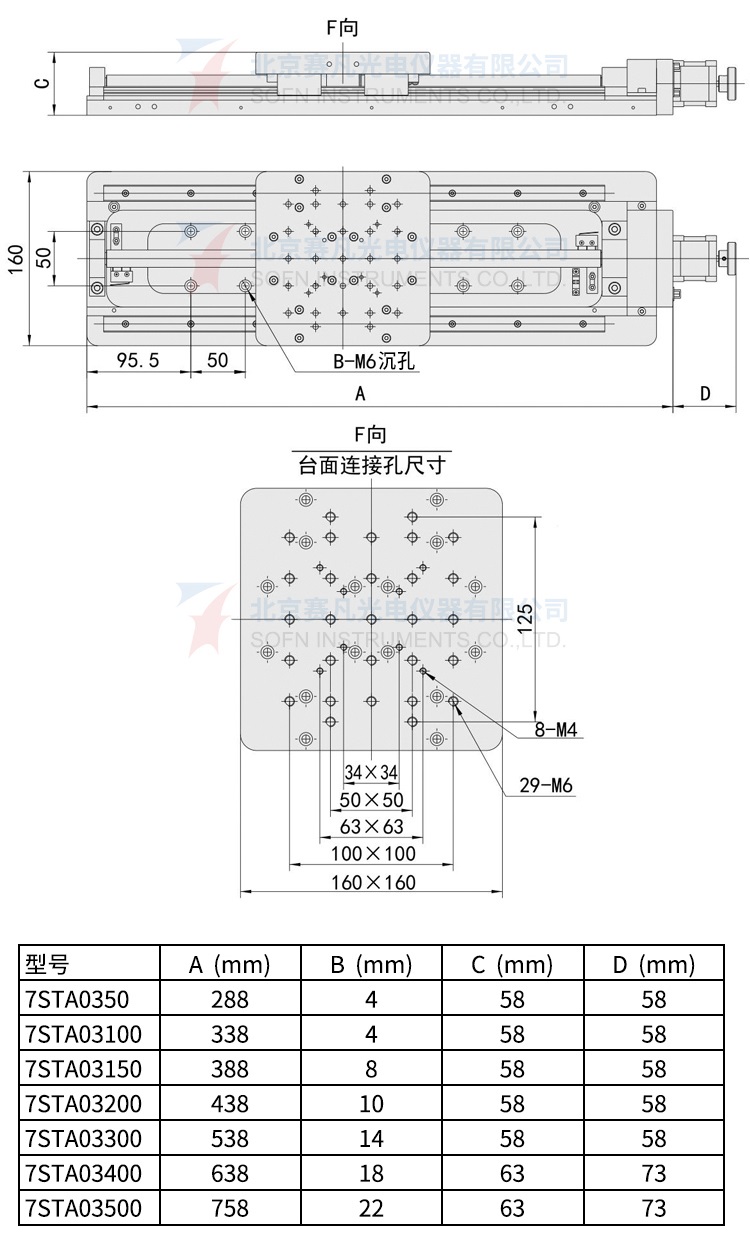

Product drawings:
7STA0350、7STA03100、7STA03150、7STA03200、7STA03300、7STA03400、7STA03500
