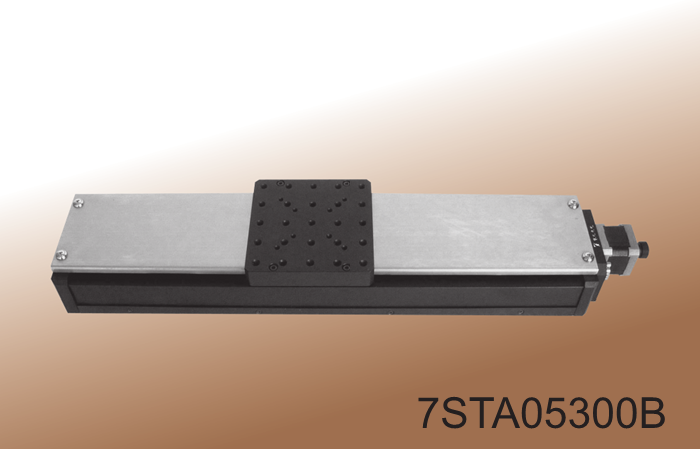

7STA05B series Motorized Precision Translation Stages
7STA0550B、7STA05150B、7STA05300B、7STA05500B等
1、Based on 7STA02B series motorized translation stages, and add the dust-proof cover; 2、The dust-proof cover is made of stainless steel, heat resistant or laser resistant; 3、Equipped with a stepping motor and a standard DB9 plug, 7SC series motion controllers for automatic control; 4、Driving by high quality ball screw rod, good repeatability, long life; 5、Screw rod adopts three bearing mounting structure, locking the end of axis to prevent loose, suitable for high speed reciprocating use; 6、Linear motion guide (square type, whole body is connected with the base plate), comfortable movement, large bearing capacity, suitable for single axis with heavy loading or for multi axis combination;
7STA05B series Motorized Precision Translation Stages
Characteristics:
1、Based on 7STA02B series motorized translation stages, and add the dust-proof cover;
2、The dust-proof cover is made of stainless steel, heat resistant or laser resistant;
3、Equipped with a stepping motor and a standard DB9 plug, 7SC series motion controllers for automatic control;
4、Driving by high quality ball screw rod, good repeatability, long life;
5、Screw rod adopts three bearing mounting structure, locking the end of axis to prevent loose, suitable for high speed reciprocating use;
6、Linear motion guide (square type, whole body is connected with the base plate), comfortable movement, large bearing capacity, suitable for single axis with heavy loading or for multi axis combination;
7、High quality elastic coupling for connecting motor and ball screw rod, synchronous transmission and little noise;
8、Hand wheel to adjust by manual;
9、With zero and limit switch, convenient for accurate positioning and protection;
10、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
11、Servo motor can be replaced for high speed or big load.
Ancillary products:

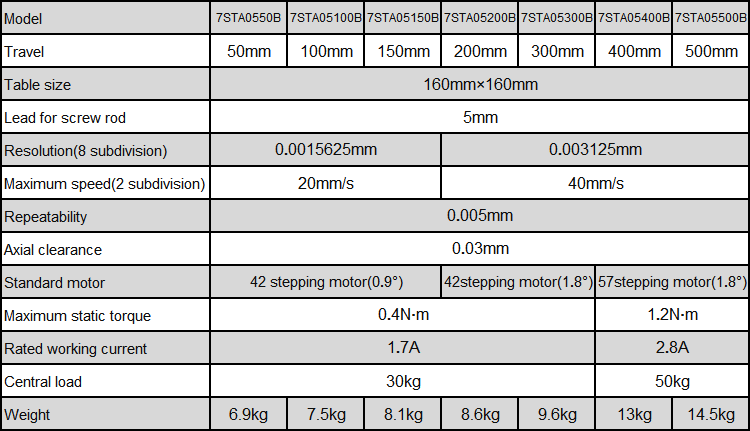

Specifications:

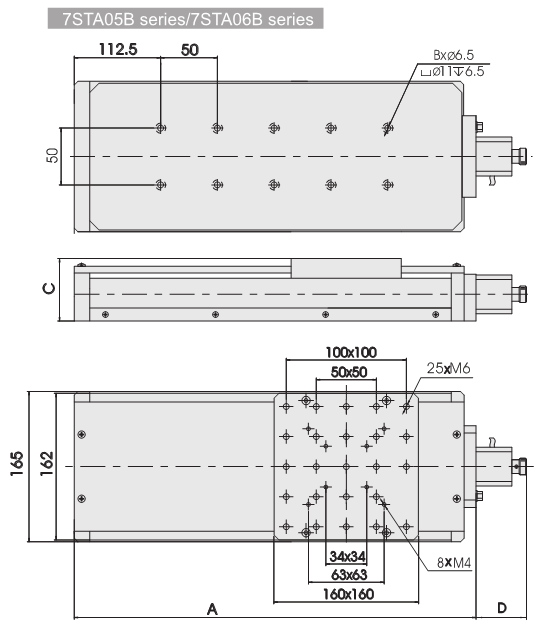

Product drawings:

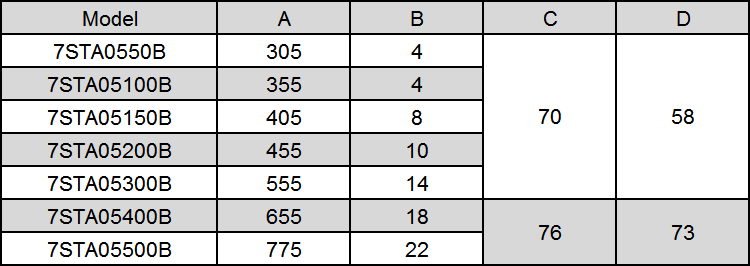

7STA0550B、7STA05100B、7STA05150B、7STA05200B、7STA05300B、7STA05400B、7STA05500B
