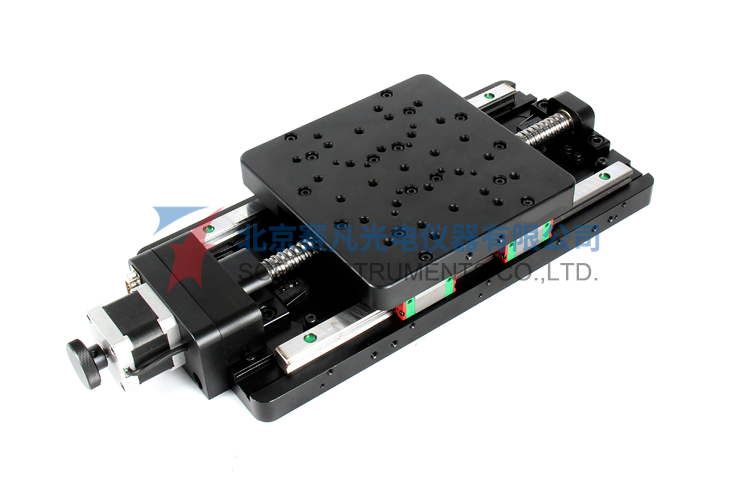

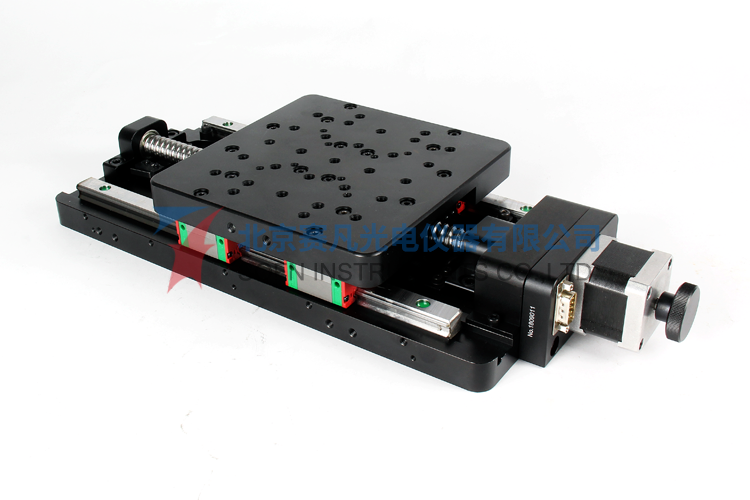

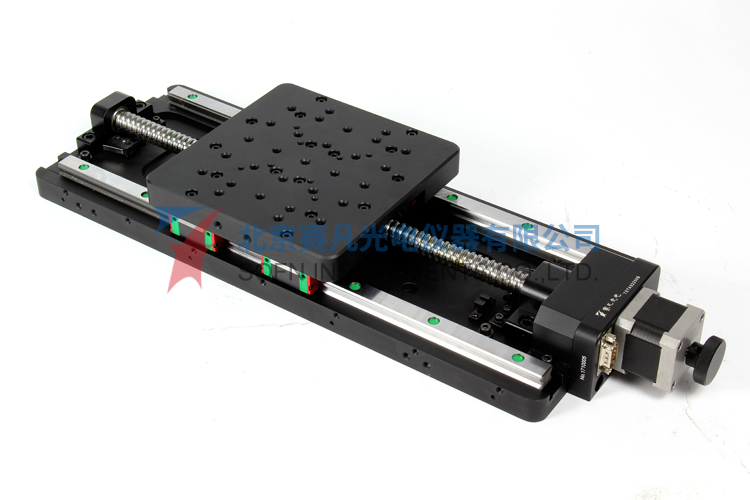

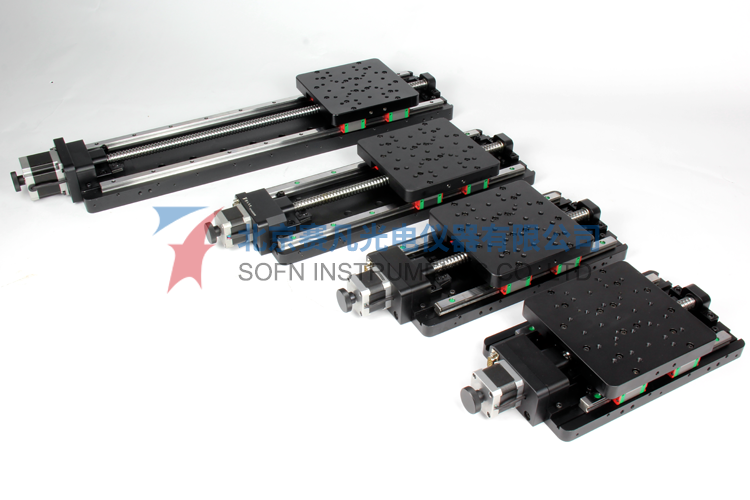

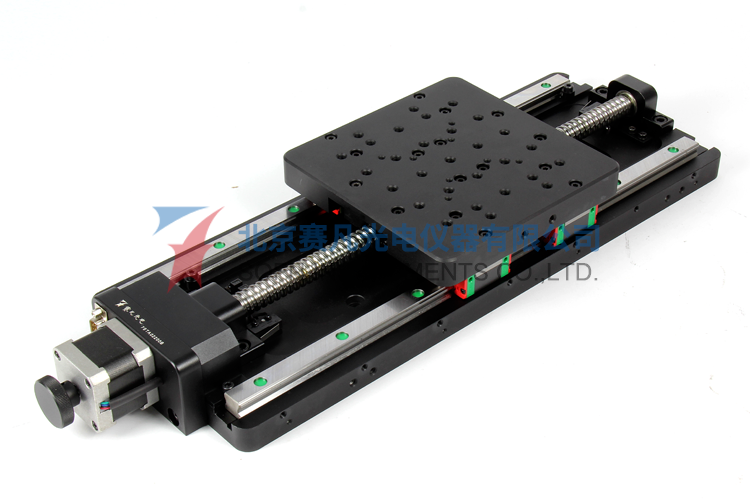

7STA02B Motorized Precision TRranslation stage
7STA0250B、7STA02200B、7STA02600B、7STA021000B等
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control; 2、Driving by high quality ball screw rod,good repeatability,long life; 3、Screw rod adopts three bearing mounting structure,locking the end of axis to prevent loose,suitable for high speed reciprocating use; 4、Linear motion guide (square type,whole body is connected with the base plate),comfortable movement,large bearing capacity,suitable for single axis with heavy loading or for multi axis combination; 5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
7STA02B Series Motorizde Precision Translation Stage
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Driving by high quality ball screw rod,good repeatability,long life;
3、Screw rod adopts three bearing mounting structure,locking the end of axis to prevent loose,suitable for high speed reciprocating use;
4、Linear motion guide (square type,whole body is connected with the base plate),comfortable movement,large bearing capacity,suitable for single axis with heavy loading or for multi axis combination;
5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
6、Hand wheel to adjust by manual;
7、With zero and limit switch,convenient for accurate positioning and protection;
8、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
9、Servo motor can be replaced for high speed or big load.
Ancillary products:

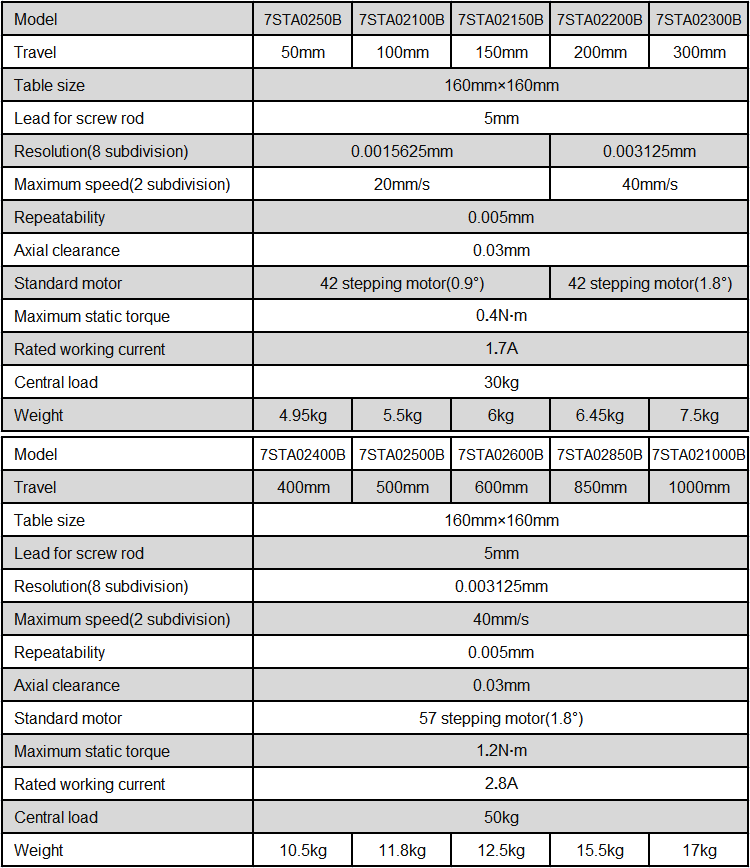

Specifications:

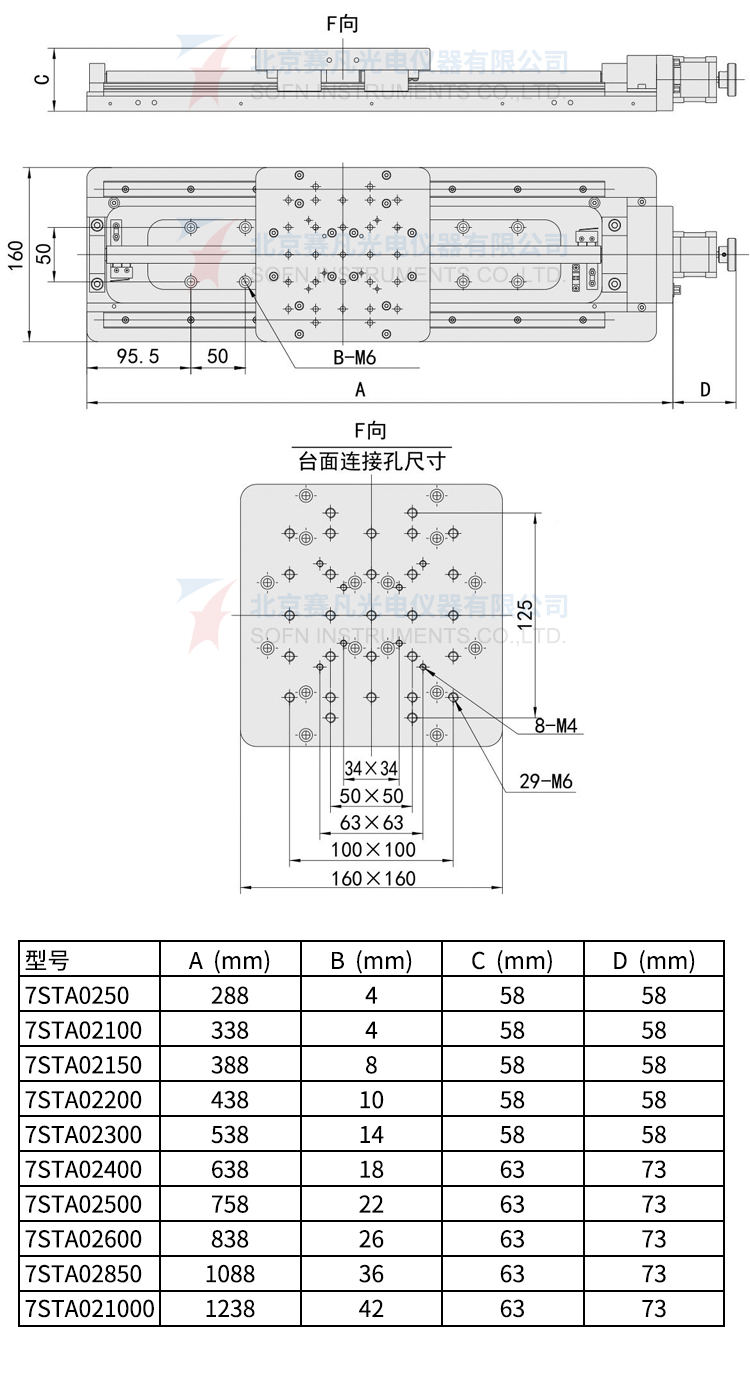

Product drawings:
7STA0250、7STA02100、7STA02150、7STA02200、7STA02300、7STA02400、7STA02500、7STA02600、7STA02850、7STA021000
