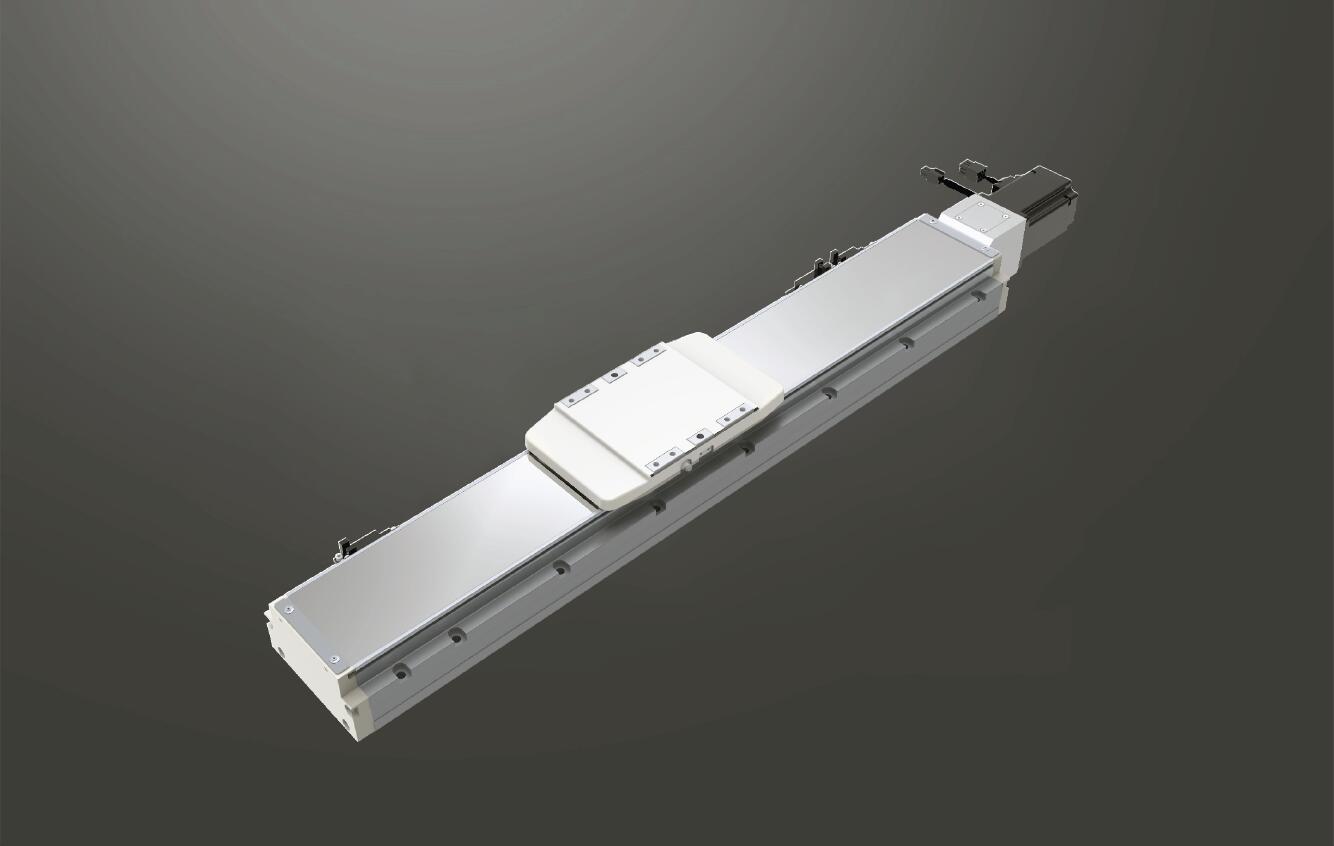

Track embedded screw slide
Standard closed-loop stepper 60 (1.8°) motor, optional servo 400W motor; Standard DB9 interface; High-quality ground ball screw transmission, lead of 5mm, repeatability ±0.01mm; Add grating ruler, resolution 0.1μm, controller feedback positioning accuracy can reach ±1μm; The motor and screw are connected by high-quality elastic coupling, the transmission is synchronous and the noise is low; Screw lead: standard 5mm, optional 10 mm, 20 mm, 32 mm; Maximum speed: 1600mm/s; Maximum load for horizontal use: 110kg; Maximum load for vertical use: 33kg; Standard effective stroke: 50~1250(mm)/(50 intervals) Equipped with limit and zero switches for easy positioning and product protection.
