7SRA1100A/1200A/2100AA Motorized Precision Rotary Stage
7SRA1100A、7SRA1200A、7SRA2100A
1、Shafting design with more features,besides use horizontal,it is also suitable for use vertical or upside down; 2、Clearance adjustment is more convenient with only a spanner; 3、Daily maintenance is also convenient and simple,effectively extend the service life; 4、The grating circle is added based on 7SRA1100A to make closed loop, positioning accuracy is 3″.
7SRA1100A/1200A/2100A Motorized Prceision rotary Stage
Characteristics:
1、Shafting design with more features,besides use horizontal,it is also suitable for use vertical or upside down;
2、Clearance adjustment is more convenient with only a spanner;
3、Daily maintenance is also convenient and simple,effectively extend the service life;
4、The grating circle is added based on 7SRA1100A to make closed loop, positioning accuracy is 3″.
Ancillary products:

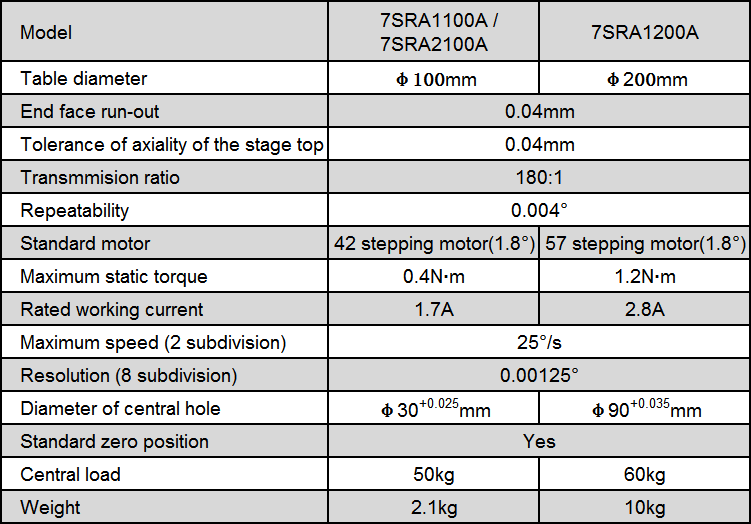

Specifications:

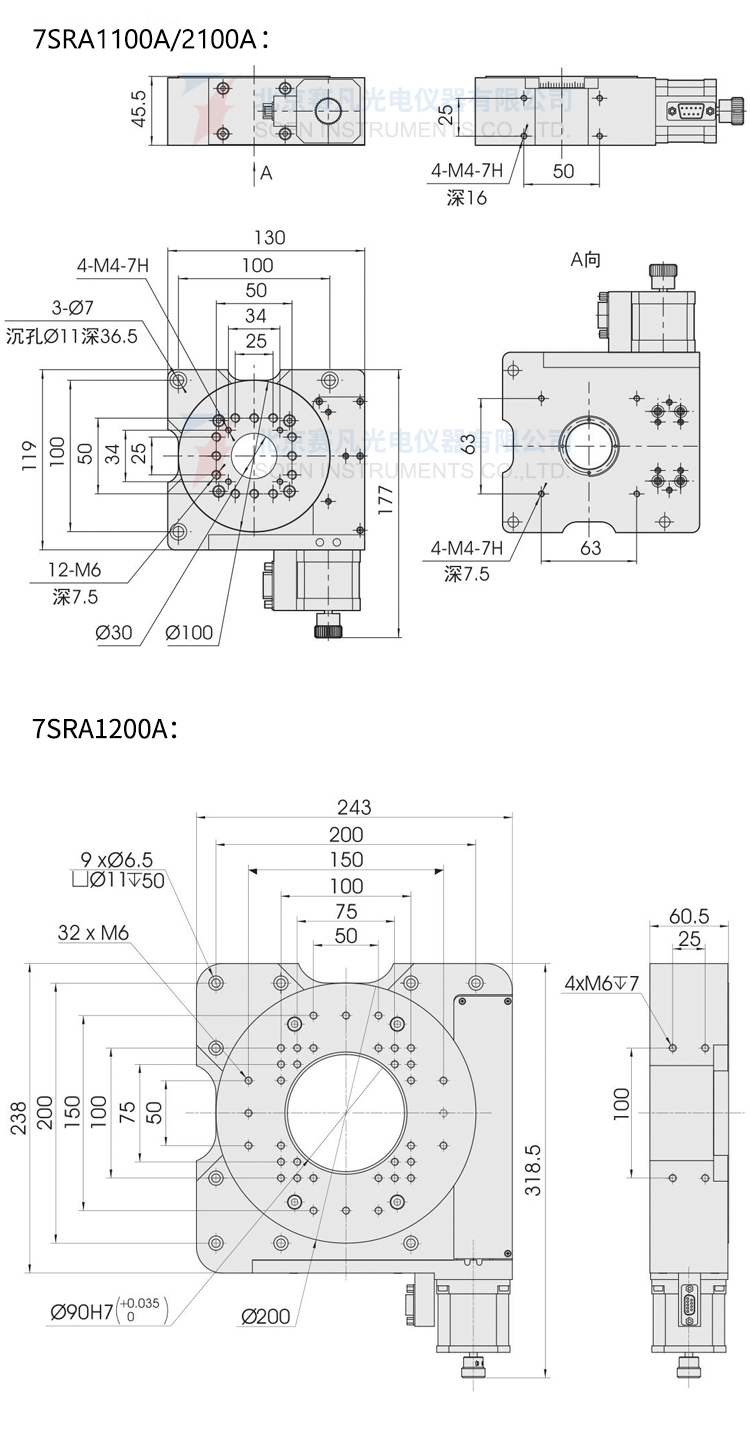

Product drawings:

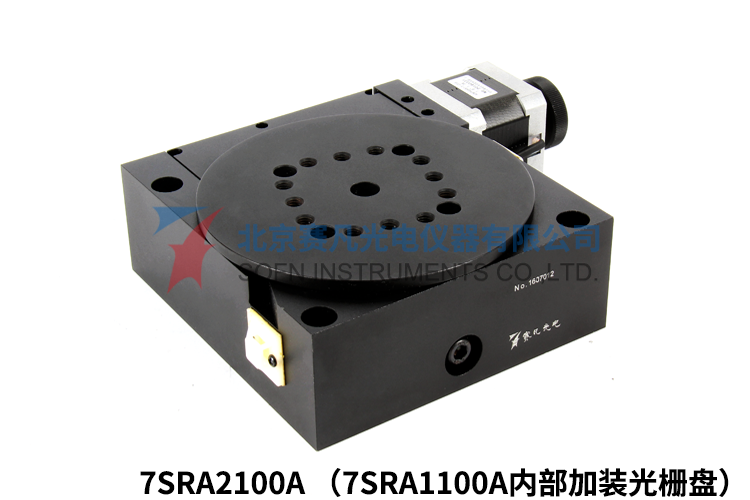

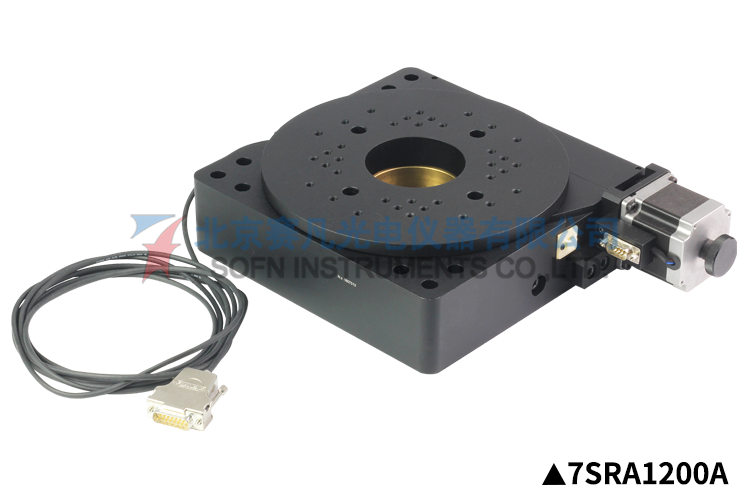

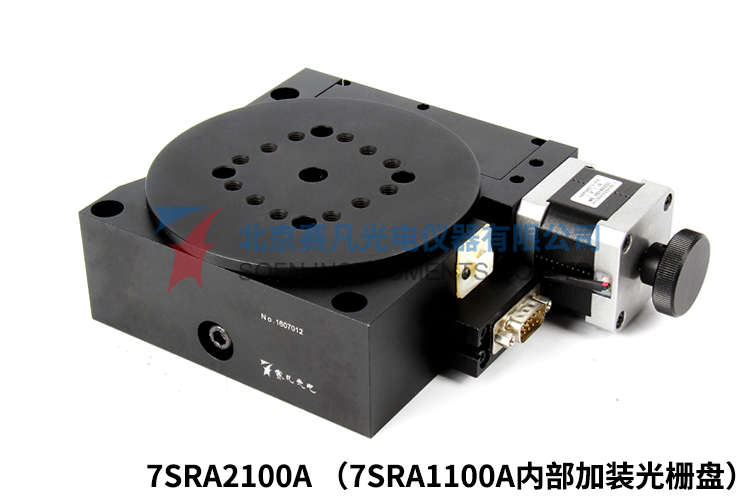

7SRA1100A、7SRA2100A、7SRA1200A
