7SRA1100 Motorized Precision Rotary Stage
7SRA1100
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control; 2、Precision machining bearing steel for shafting,high precision,big load,and long life; 3、Precision grinding worm and worm gear,the stage rotate reversible and comfortable with little backlash; 4、Eliminating clearance structure for long-term using; 5、The center of tolerance holes and rotation is coincide with each other, convenient for positioning.

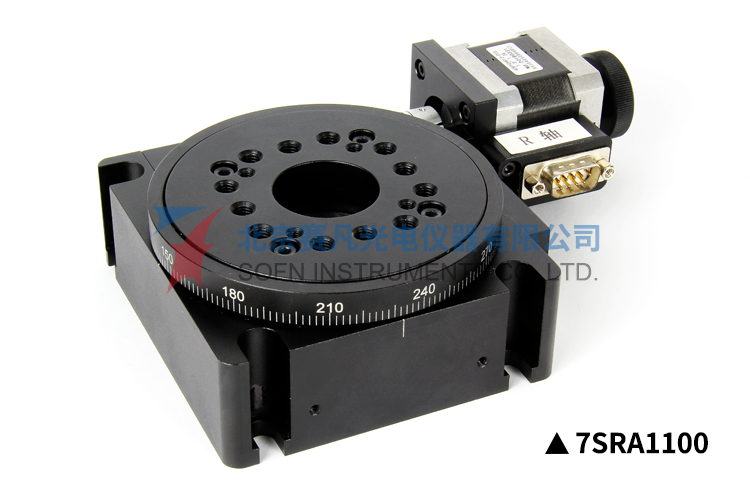

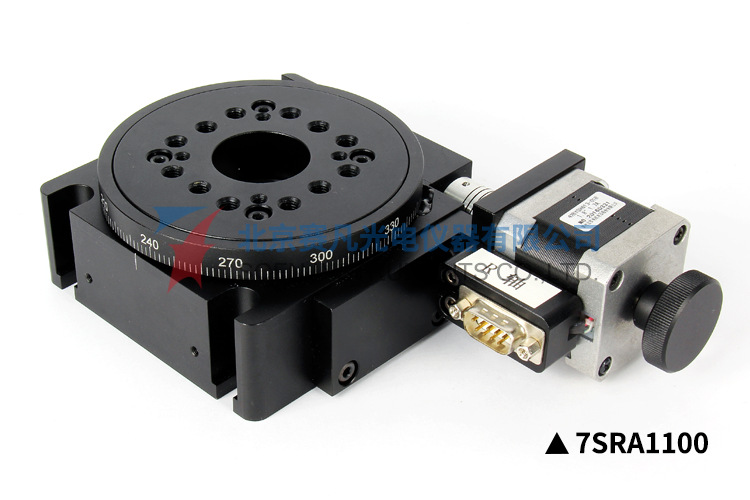

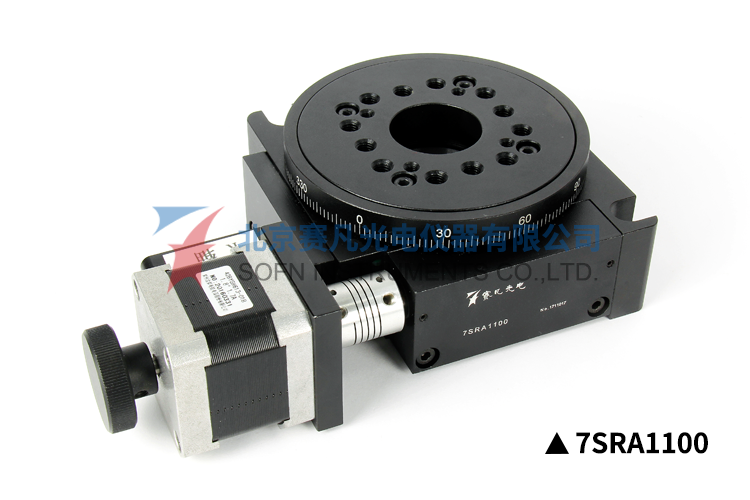

7SRA1100 Motorized Precision rotary stages
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Precision machining bearing steel for shafting,high precision,big load,and long life;
3、Precision grinding worm and worm gear,the stage rotate reversible and comfortable with little backlash;
4、Eliminating clearance structure for long-term using;
5、The center of tolerance holes and rotation is coincide with each other, convenient for positioning.
Ancillary product:

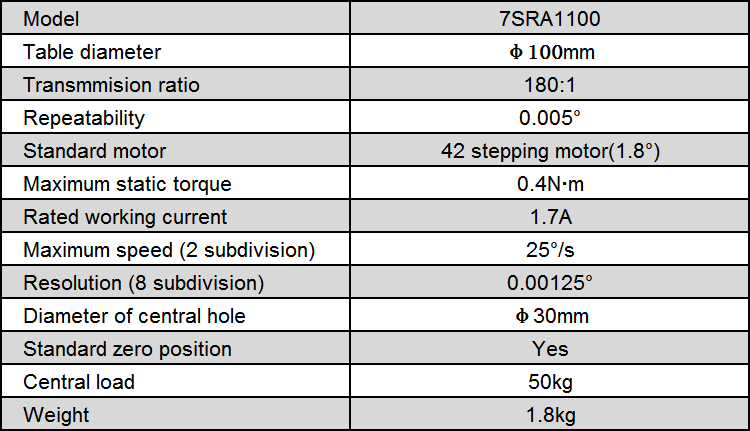

Specifications:

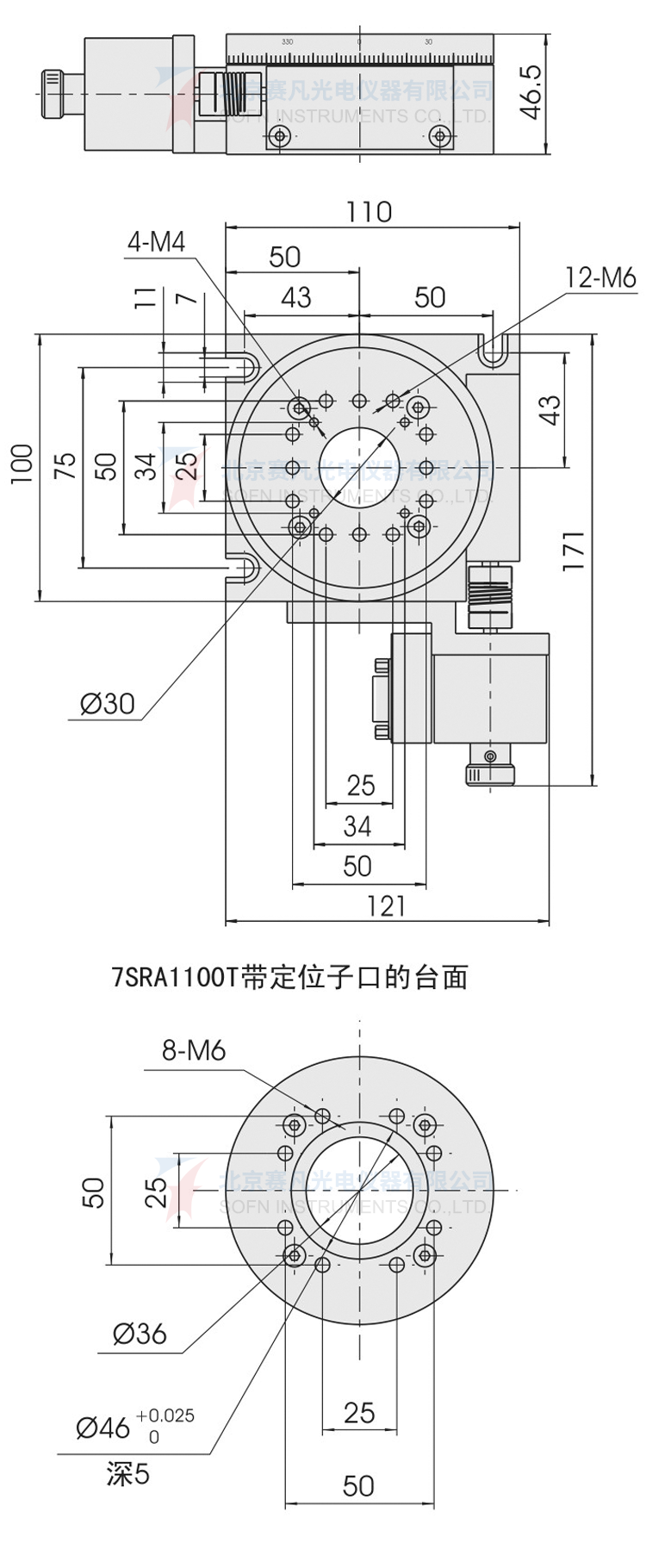

Product drawings:
7SRA1100
