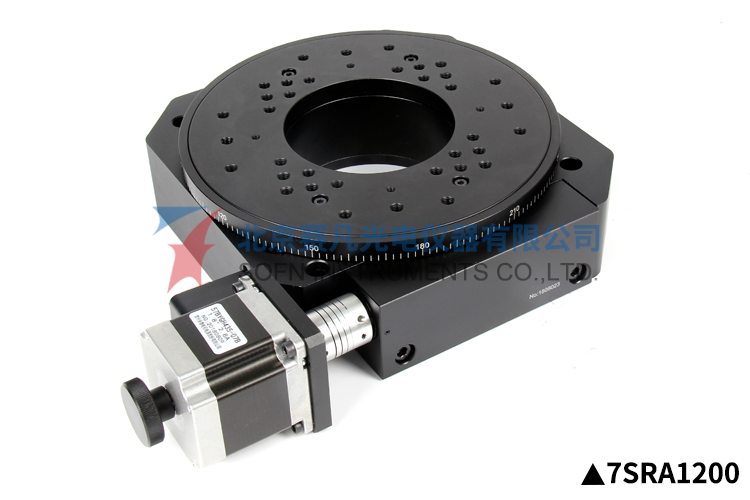

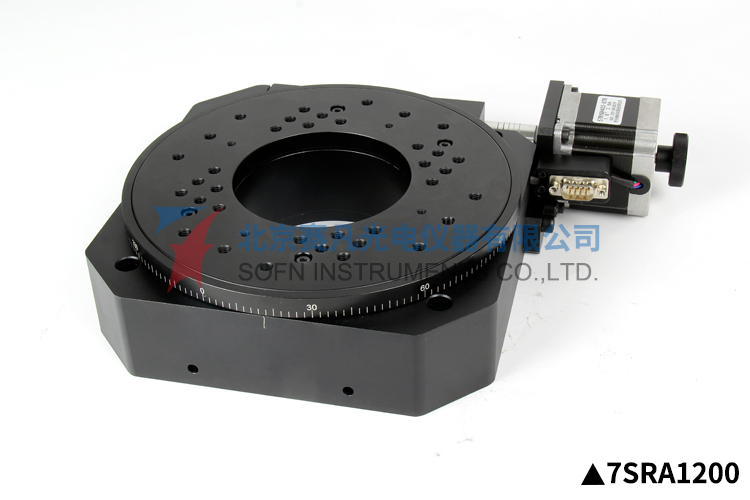

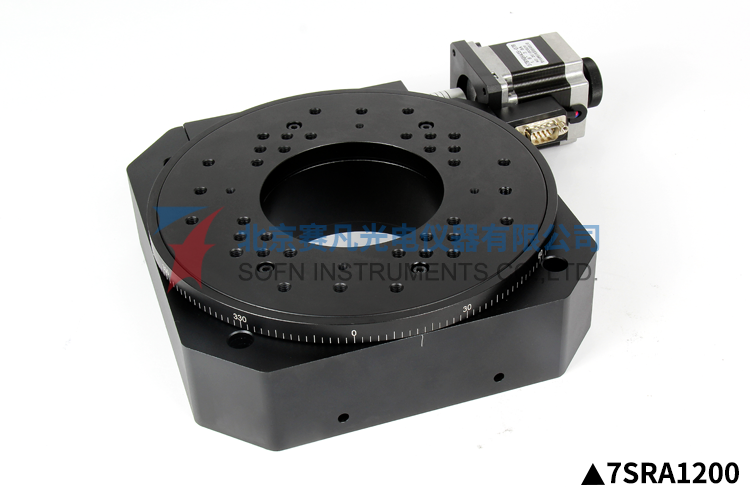

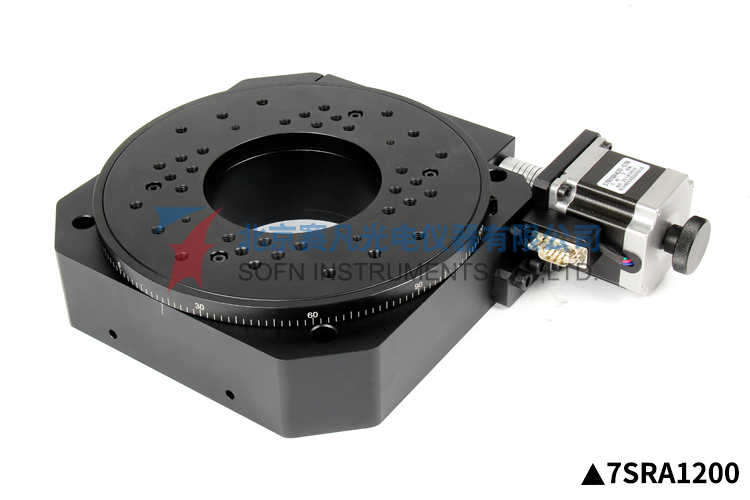

7SRA1200 Motorized Precision Rotary Stage
7SRA1200
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control; 2、Precision machining bearing steel for shafting,high precision,big load,and long life; 3、Precision grinding worm and worm gear,the stage rotate reversible and comfortable with little backlash; 4、Eliminating clearance structure for long-term using; 5、The center of tolerance holes and rotation is coincide with each other, convenient for positioning; 6、High quality elastic coupling for connecting motor and worm, synchronous transmission and little noise.
7SRA1200 Motorized Precision rotary stages
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Precision machining bearing steel for shafting,high precision,big load,and long life;
3、Precision grinding worm and worm gear,the stage rotate reversible and comfortable with little backlash;
4、Eliminating clearance structure for long-term using;
5、The center of tolerance holes and rotation is coincide with each other, convenient for positioning;
6、High quality elastic coupling for connecting motor and worm, synchronous transmission and little noise;
7、The outer ring of the stage is graduated by laser sculpturee, convenient for reading and initial positioning;
8、Servo motor can be replaced for industry.
Ancillary product:

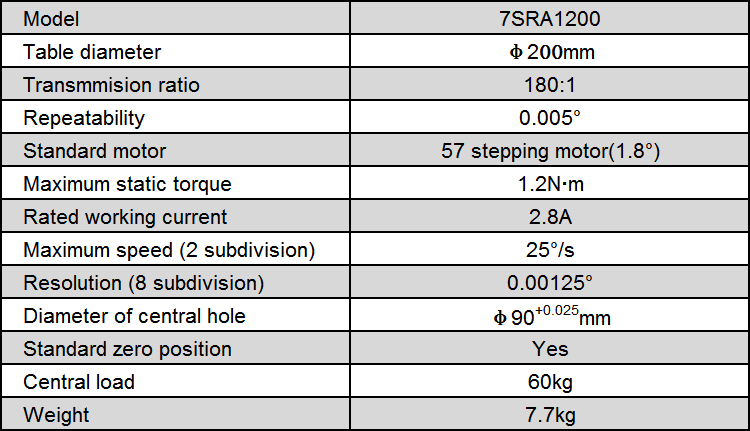

Specifications:

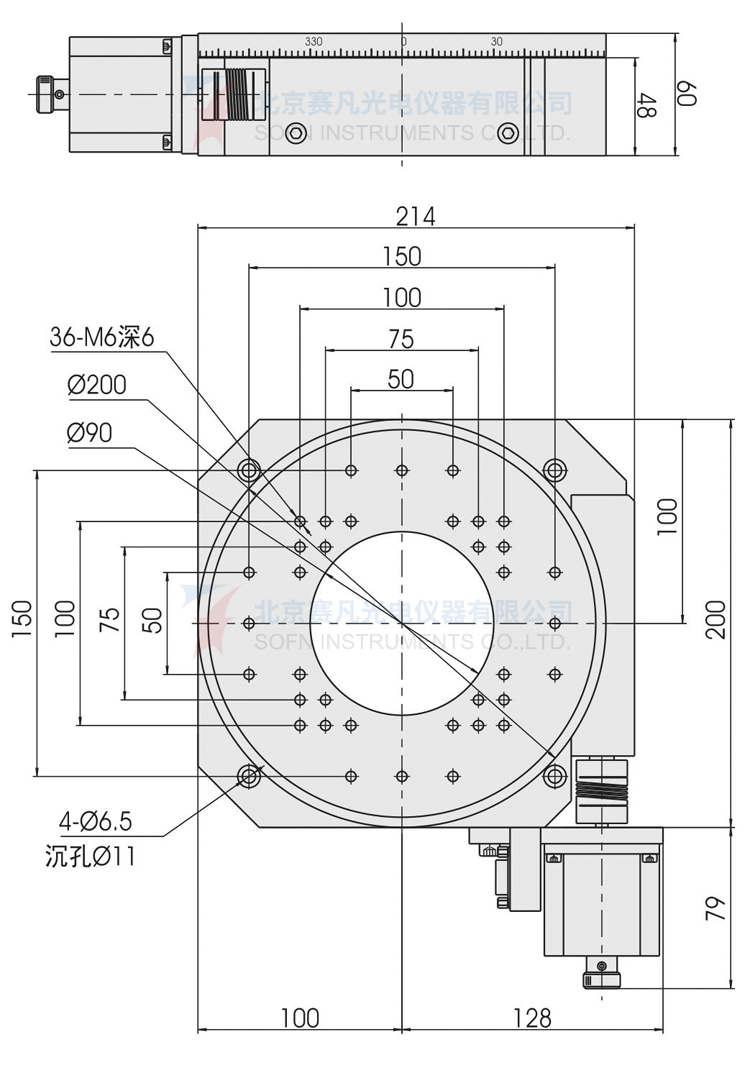

Product drawings:
7SRA1200
