7MM06254A Two-dimensional Mirror Mount
Characteristics:
1、Perfectly combined with a variety of two-dimensional mirror mounts;
2、M6×0.25 fine thread for adjustment with special copper nut,which can be locked axially to prevent loosening caused by vibration;
3、High performance tension spring for reset with uniform resetting force to reduce stress;
4、Range of adjustment ±3°;
5、Barrel clamping lens,lens can be installed and fixed to the adjusting mount;
6、PTFE gasket,protecting lens;
7、Mounting holes in two directions,suitable for different optical path;
8、On the basis of 7MM06254,the fine thread is changed by a micrometer,so it is more precise and quantitative.
Ancillary products:

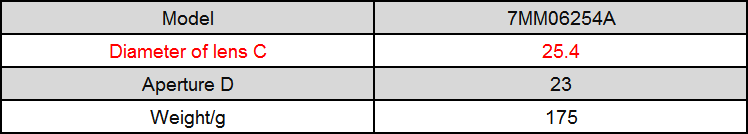

Specifications:
Unit:mm

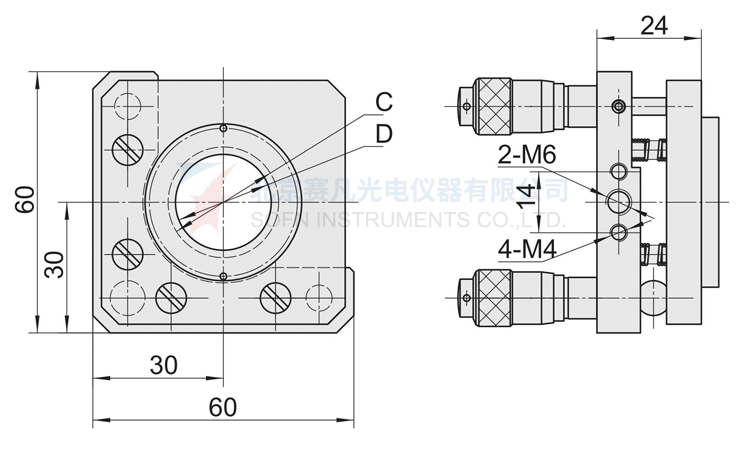

Product drawings:
7MM06254A
