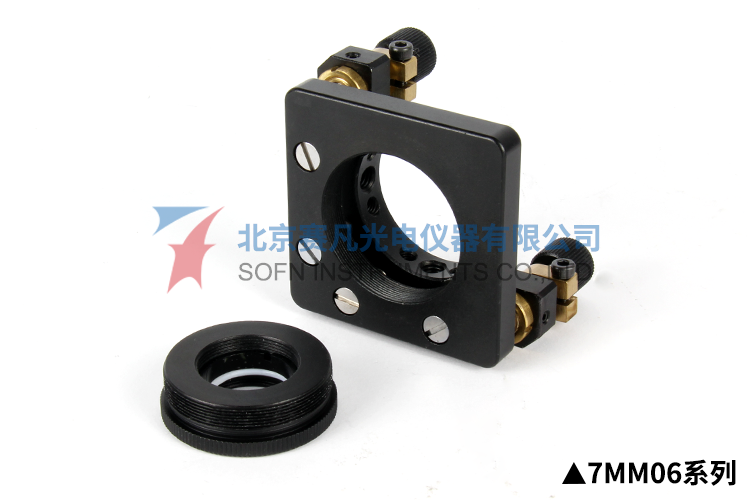

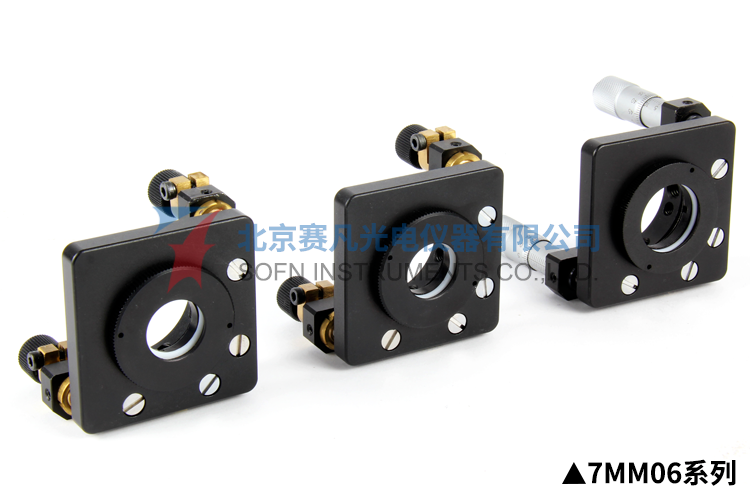

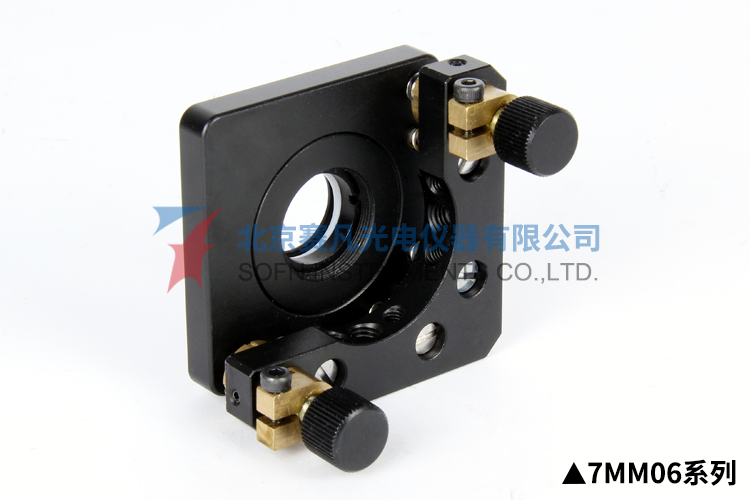

7MM06 Two-dimensional Mirror Mounts
7MM0620、7MM06254
1、Perfectly combined with a variety of two-dimensional mirror mounts; 2、M6×0.25 fine thread for adjustment with special copper nut,which can be locked axially to prevent loosening caused by vibration; 3、High performance tension spring for reset with uniform resetting force to reduce stress; 4、Range of adjustment ±3°; 5、Barrel clamping lens,lens can be installed and fixed to the adjusting mount; 6、PTFE gasket,protecting lens; 7、Mounting holes in two directions,suitable for different optical path.
7MM06 Two-dimensional Mirror Mounts
Characteristics:
1、Perfectly combined with a variety of two-dimensional mirror mounts;
2、M6×0.25 fine thread for adjustment with special copper nut,which can be locked axially to prevent loosening caused by vibration;
3、High performance tension spring for reset with uniform resetting force to reduce stress;
4、Range of adjustment ±3°；
5、Barrel clamping lens,lens can be installed and fixed to the adjusting mount;
6、PTFE gasket,protecting lens;
7、Mounting holes in two directions,suitable for different optical path.
Ancillary products:

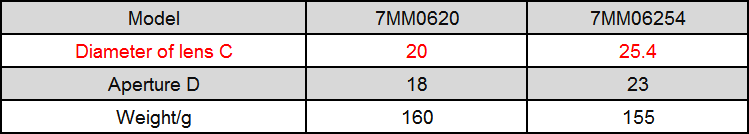

Specifications:
Unit:mm

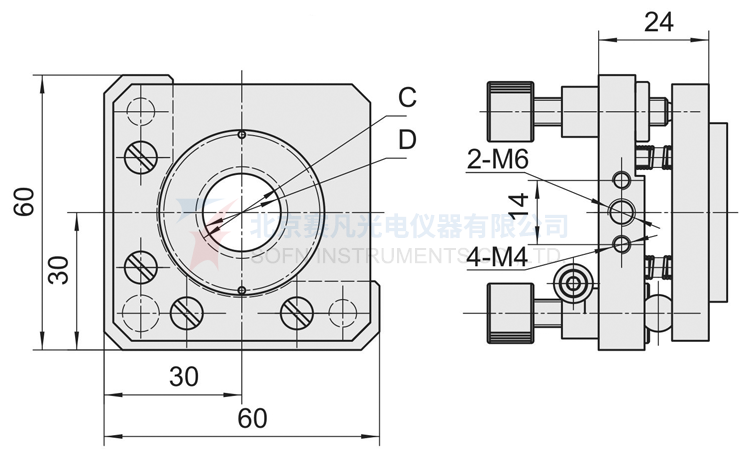

Product drawings:
7MM0620、7MM06254
