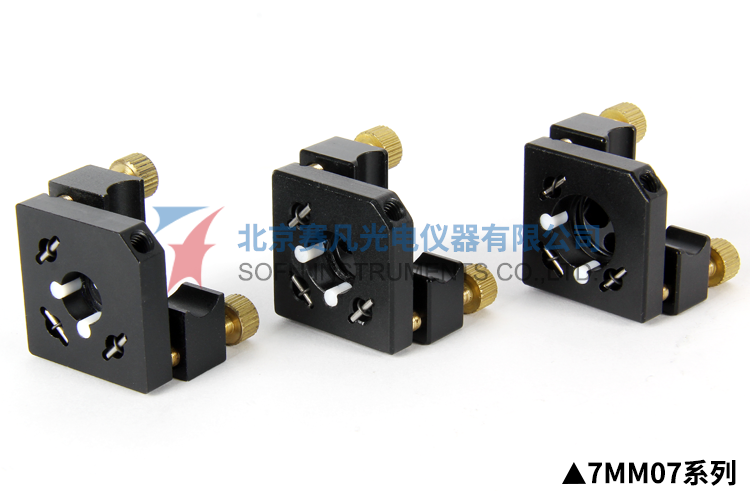

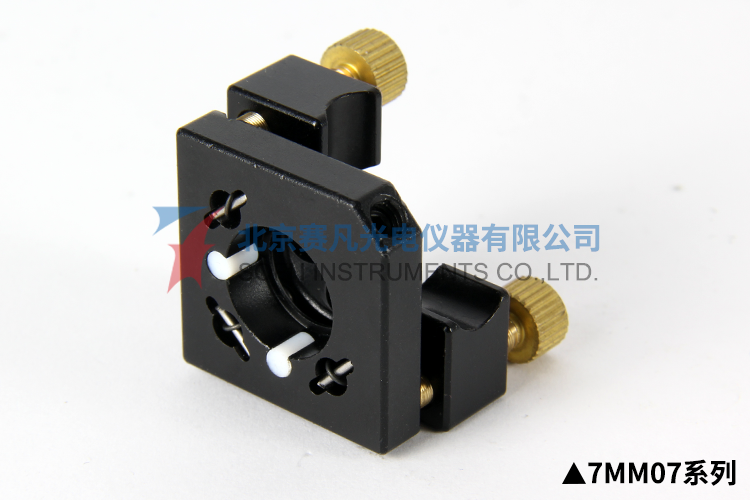

7MM07 Two-dimensional Mirror Mounts
7MM0708、7MM0710、7MM07127、7MM0715、7MM07381、7MM0740
1、M6×0.25 fine thread adjustment (partly with copper nut); 2、High performance tension spring for reset with uniform resetting force to reduce stress; 3、Range of adjustment ±3°; 4、Three PTFE supporting, protecting lens; 5、Mounting holes in two directions, suitable for different optical path.
7MM07 Two-dimensional Mirror Mounts
Characteristics:
1、M6×0.25 fine thread adjustment (partly with copper nut);
2、High performance tension spring for reset with uniform resetting force to reduce stress;
3、Range of adjustment ±3°;
4、Three PTFE supporting, protecting lens;
5、Mounting holes in two directions, suitable for different optical path.
Ancillary products:
Specifications:
Unit:mm

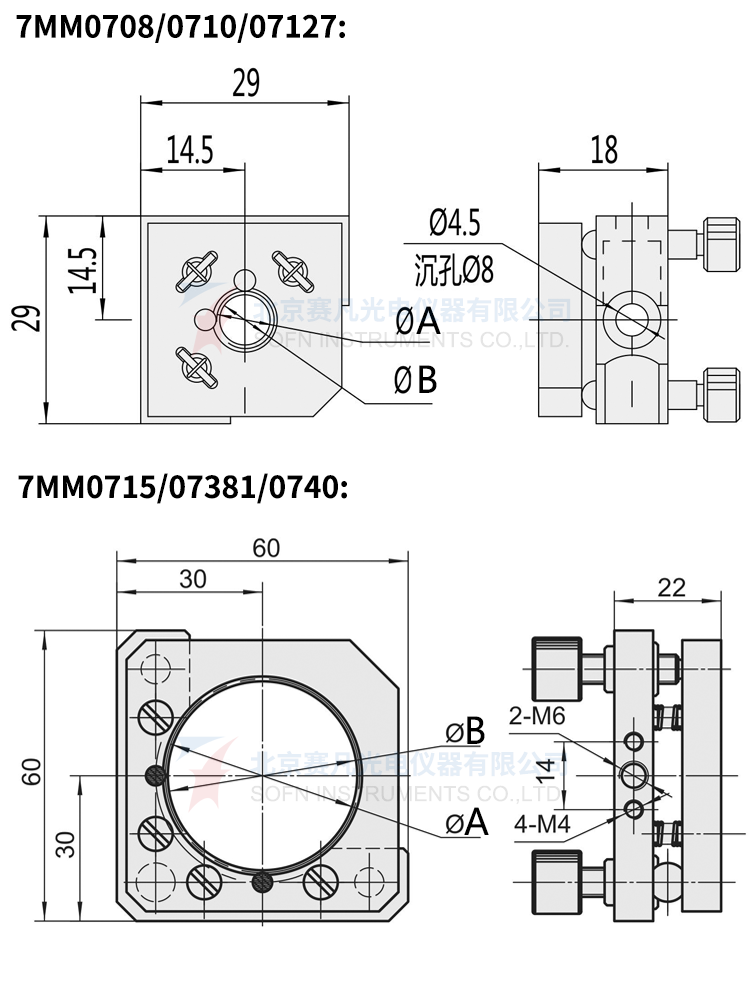

Product drawings:
7MM0708、7MM0710、7MM07127、7MM0715、7MM07381、7MM0740
