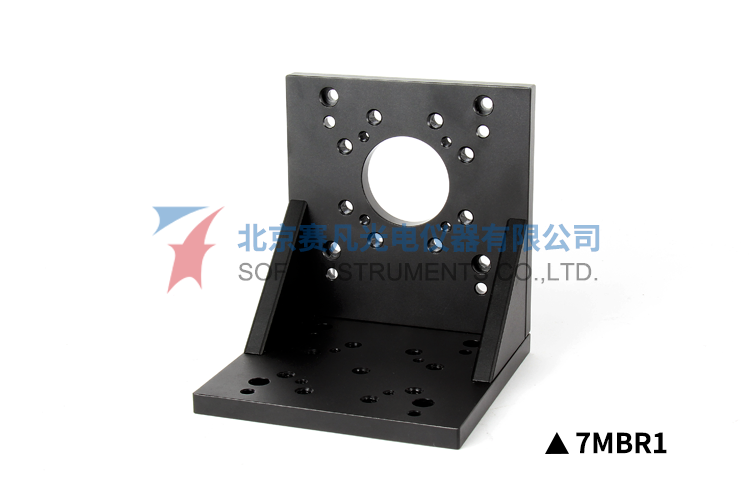

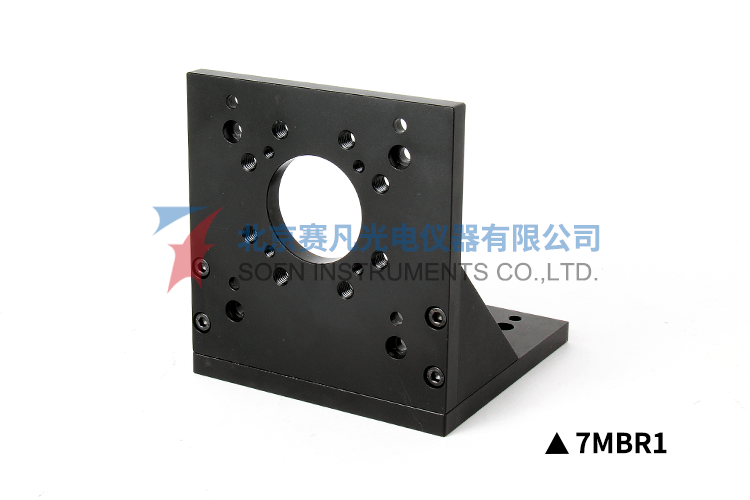

7MBR1 Right Angle Bracket
Model：
7MBR1
Characteristics：
1、It is mainly used to assemble the translationg stages into two or three dimensional orthogonal systems,and also can be used with other adjustment mounts to make orthogonal systems; 2、Two rothogonal surface precision machining to ensure verticality requirement; 3、Mutiple mounting holes make strong versatility.
7MBR1 Right Angle Bracket
Characteristics:
1、It is mainly used to assemble the translationg stages into two or three dimensional orthogonal systems,and also can be used with other adjustment mounts to make orthogonal systems;
2、Two rothogonal surface precision machining to ensure verticality requirement;
3、Mutiple mounting holes make strong versatility.
Ancillary products:
Specifications:

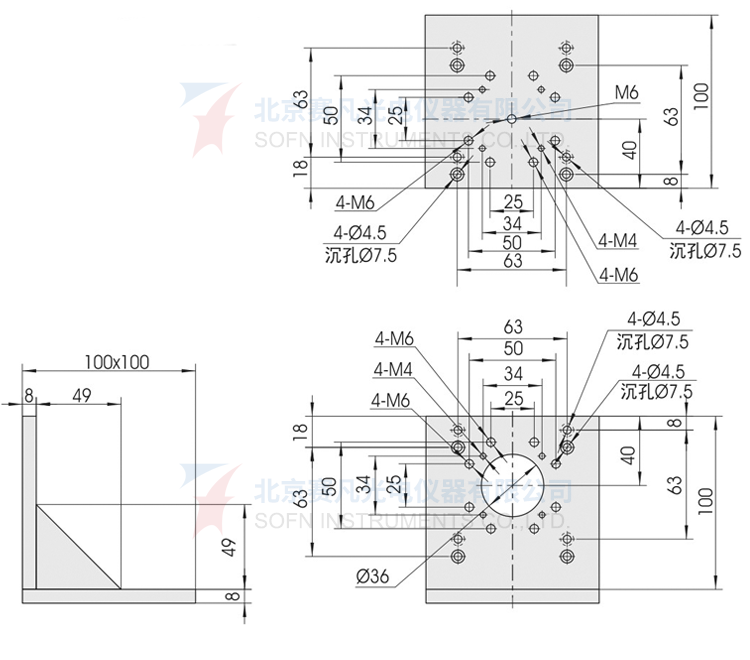

Product drawings:
7MBR1
