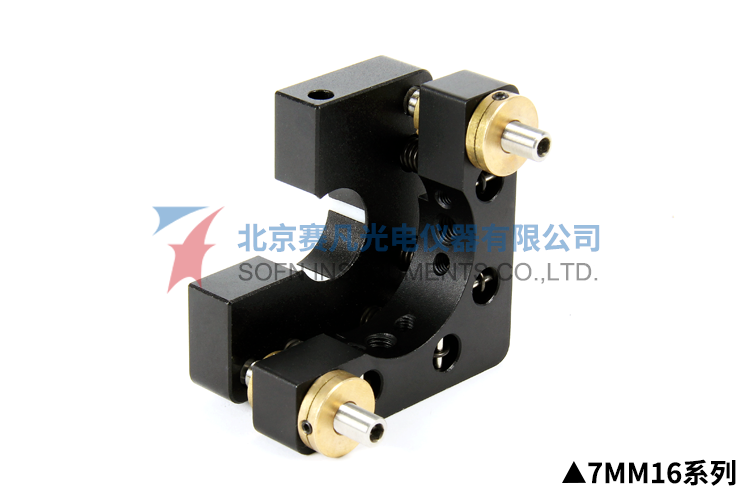

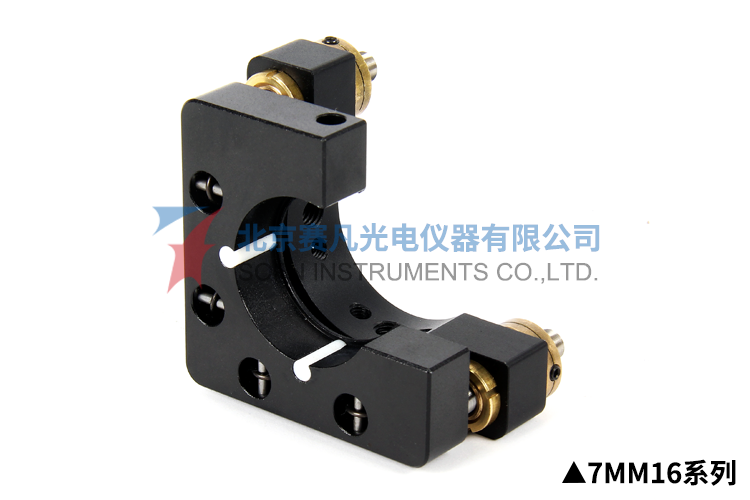

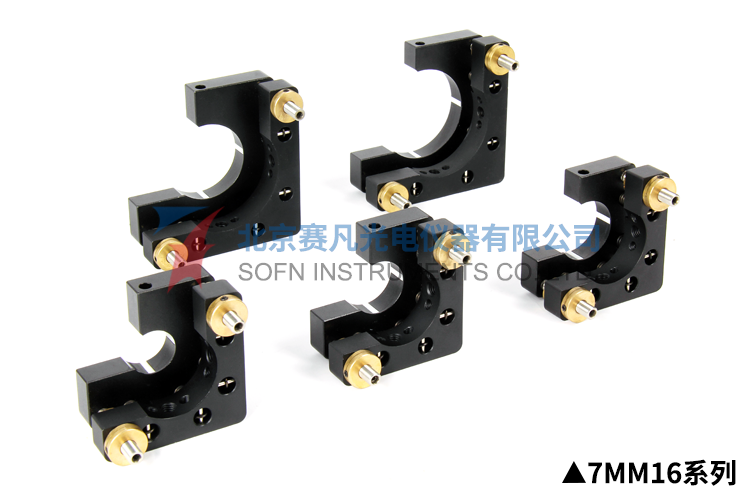

7MM16 Two-dimensional Mirror Mounts
7MM1615、7MM1620、7MM16254、7MM1630、7MM1640、7MM16508等
1、M6×0.25 fine thread for adjustment with special copper nut,which can be locked axially to prevent loosening caused by vibratio; 2、High performance tension spring for reset with uniform resetting force to reduce stress; 3、Range of adjustment ±3°; 4、Open structure,fast clamping,larger aperture; 5、Three PTFE supporting,protecting lens; 6、Mounting holes in two directions,suitable for different optical path.
7MM16 Two-dimensional Mirror Mounts
Characteristics:
1、M6×0.25 fine thread for adjustment with special copper nut,which can be locked axially to prevent loosening caused by vibratio;
2、High performance tension spring for reset with uniform resetting force to reduce stress;
3、Range of adjustment ±3°;
4、Open structure,fast clamping,larger aperture;
5、Three PTFE supporting,protecting lens;
6、Mounting holes in two directions,suitable for different optical path.
Ancillary products:

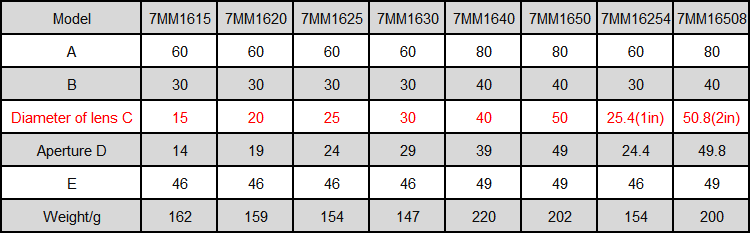

Specifications:
Unit:mm
Product drawings:
7MM1615、7MM1620、7MM1625、7MM16254、7MM1630、7MM1640、7MM1650、7MM16508
