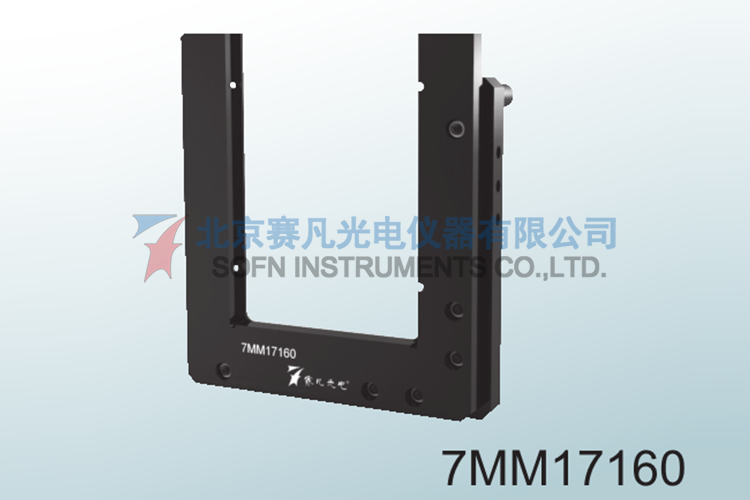

7MM17160 Two-dimensional Mirror Mount
Model：
7MM17160
Characteristics：
1、M6×0.25 fine thread for adjustment（with copper nut）;2、Belleville spring for reset, reset force can be adjusted, from zero to rigidity;3、Range of adjustment ±3°;4、Three PTFE supporting, protecting lens;5、Mounting holes in two directions, suitable for different optical path;6、Clamping for 160mm×110mm rectangular element.
7MM17160 Two-dimensional Mirror Mount
Characteristics:
1、M6×0.25 fine thread for adjustment（with copper nut）;
2、Belleville spring for reset, reset force can be adjusted, from zero to rigidity;
3、Range of adjustment ±3°;
4、Three PTFE supporting, protecting lens;
5、Mounting holes in two directions, suitable for different optical path;
6、Clamping for 160mm×110mm rectangular element.
Specifications:

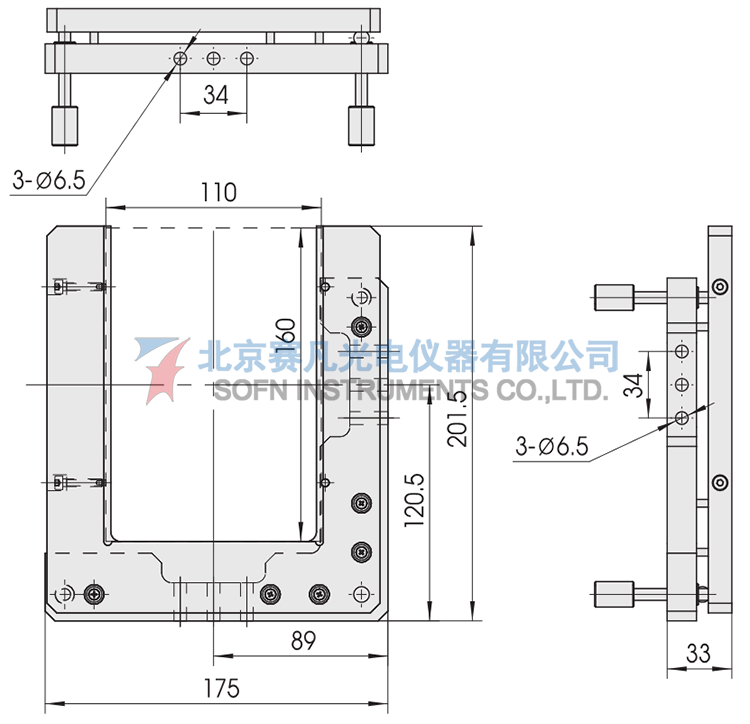

Product drawings:
7MM17160
