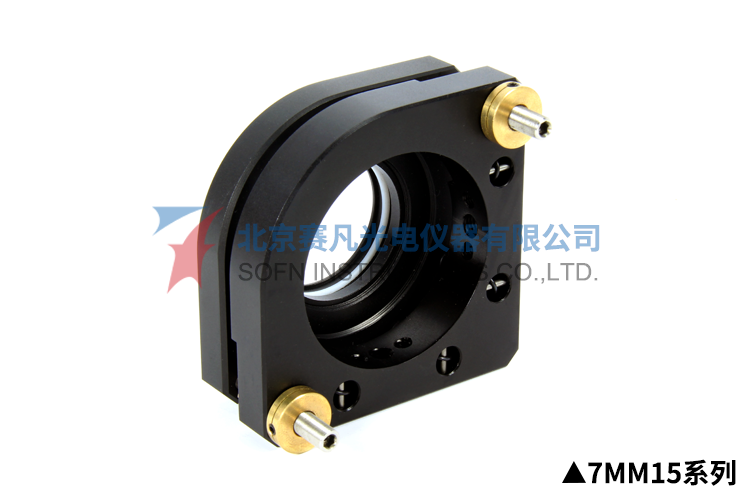

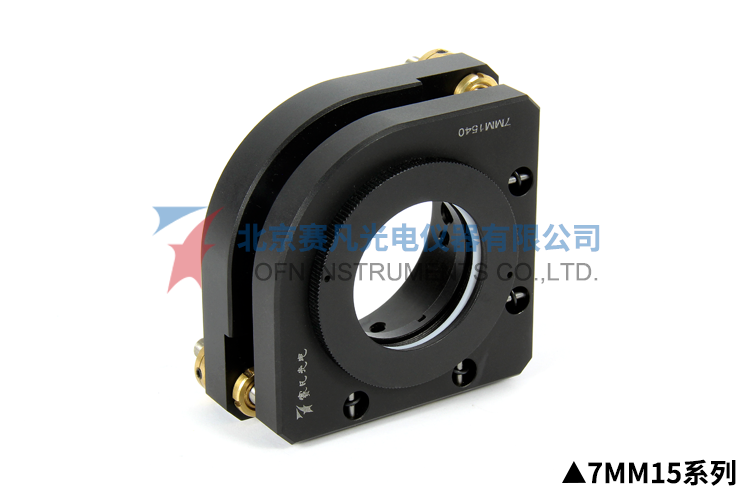

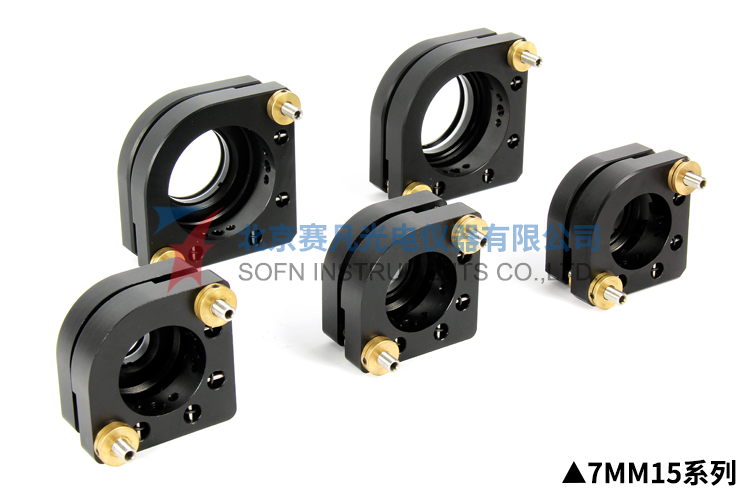

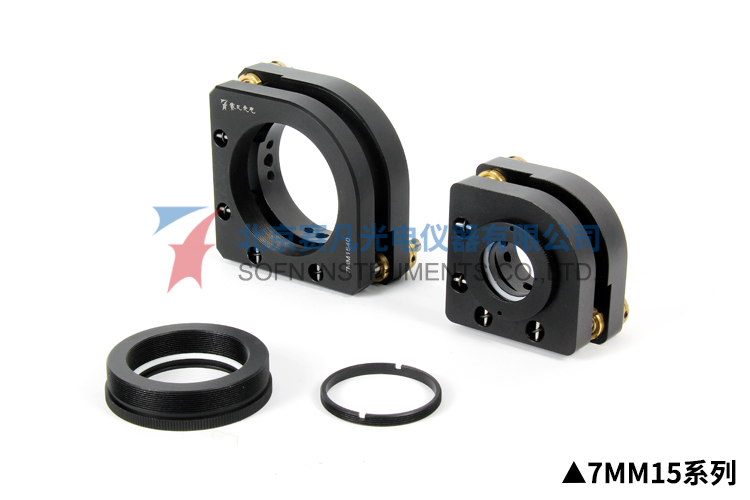

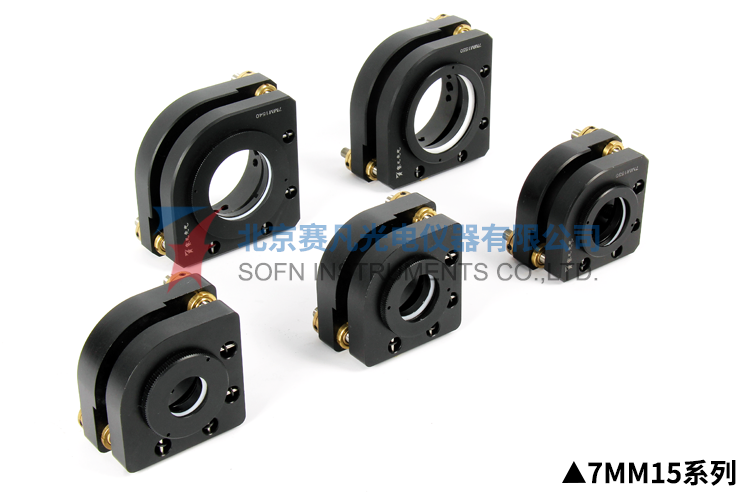

7MM15 Two-dimensional Mirror Mounts
Characteristics:
1、M6×0.25 fine thread for adjustment with special copper nut,which can be locked axially to prevent loosening caused by vibratio;
2、High performance tension spring for reset with uniform resetting force to reduce stress;
3、Range of adjustment ±3°;
4、Barrel clamping lens,lens can be installed and fixed to the adjusting mount;
5、PTFE gasket,protecting lens;
6、Mounting holes in two directions,suitable for different optical path.
Ancillary products:

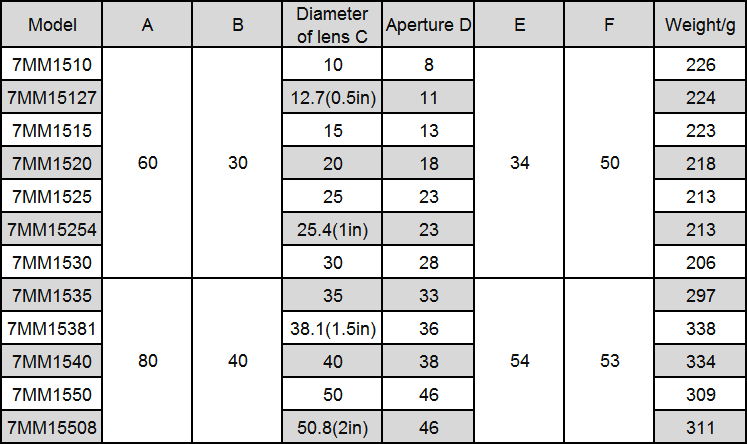

Specifications:
Unit:mm

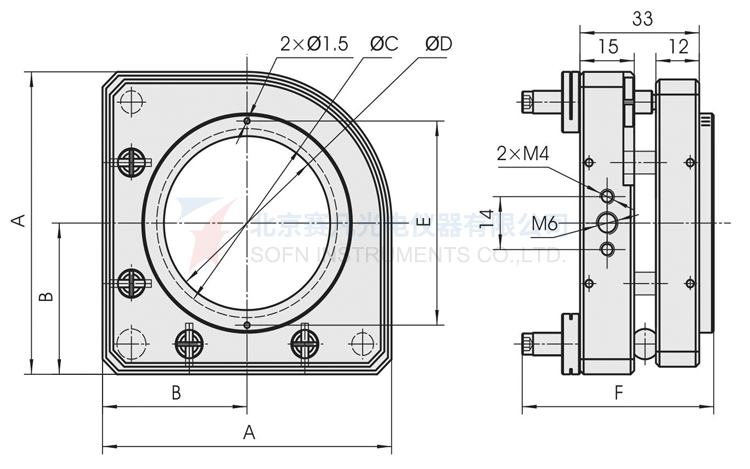

Product drawings:
7MM1510、7MM15127、7MM1515、7MM1520、7MM1525、7MM15254、7MM1530、7MM1535、7MM15381、7MM1540、7MM1550、7MM15508
