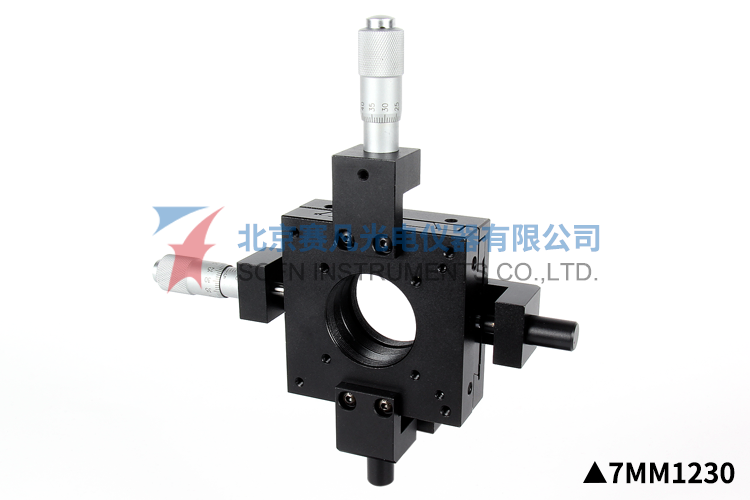

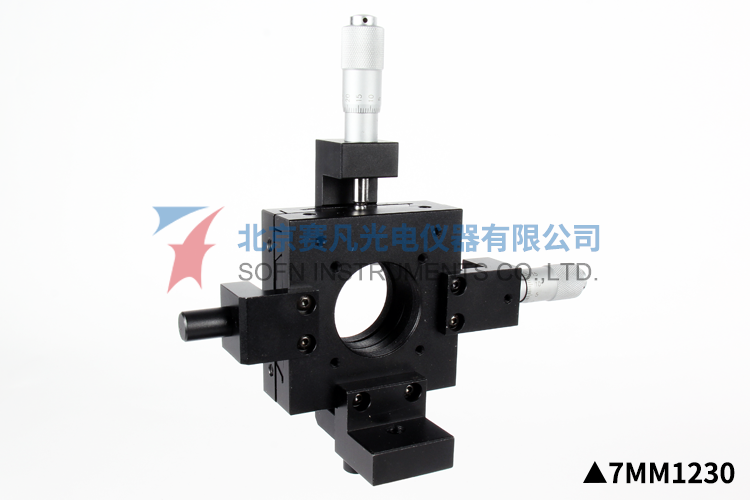

7MM1230 Two-dimensional Translation Mirror Mount
Model：
7MM1230
Characteristics：
1、Two-dimensional translation; 2、Lapping dovetail rail,smooth and comfortable; 3、Micrometer for quantitative adjustment,spring for reset to eliminate backlash; 4、M30×1 center threaded hole can be suited with a barrel,clamping for 30mm diameter lens or smaller ones.
7MM1230 Two-dimensional Translation Mirror Mount
Characteristics:
1、Two-dimensional translation;
2、Lapping dovetail rail,smooth and comfortable;
3、Micrometer for quantitative adjustment,spring for reset to eliminate backlash;
4、M30×1 center threaded hole can be suited with a barrel,clamping for 30mm diameter lens or smaller ones.
Ancillary products:

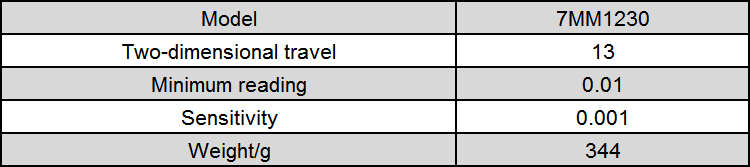

Specifications:

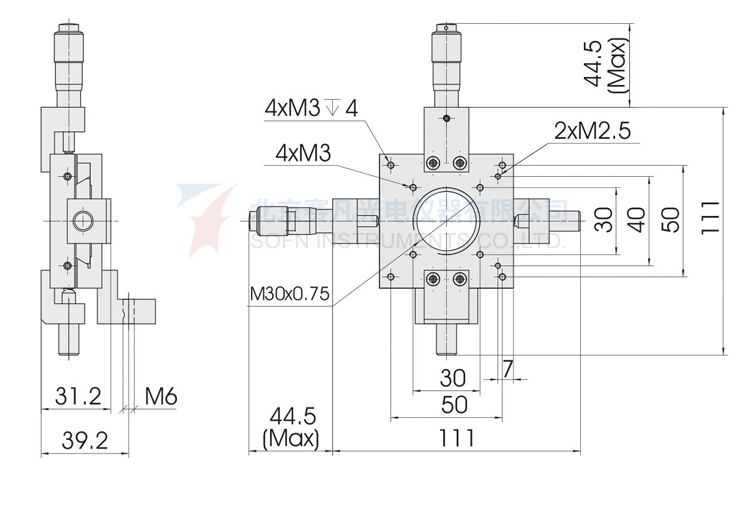

Product drawings:
7MM1230
