Home > PRODUCTS > Opto-mechanics > Mirror mounts

    7MM11 系列V型镜架

    Model：

    7MM11

    Characteristics：

    主要用于装卡梯度折射率透镜、柱体激光器、光纤准直镜等; V 形槽装卡结构，保持 3 点接触，安装牢固稳定; 高度可调的装卡机构可靠地固定各类圆柱体光学器件; 主体采用优质铝合金，表面黑色阳极氧化处理; 下部有标准安装螺纹孔，方便向下连接组合，适配性强

    Product?Inquiry Product Inquiry
    CAD?Download CAD Download
    Overviews Details

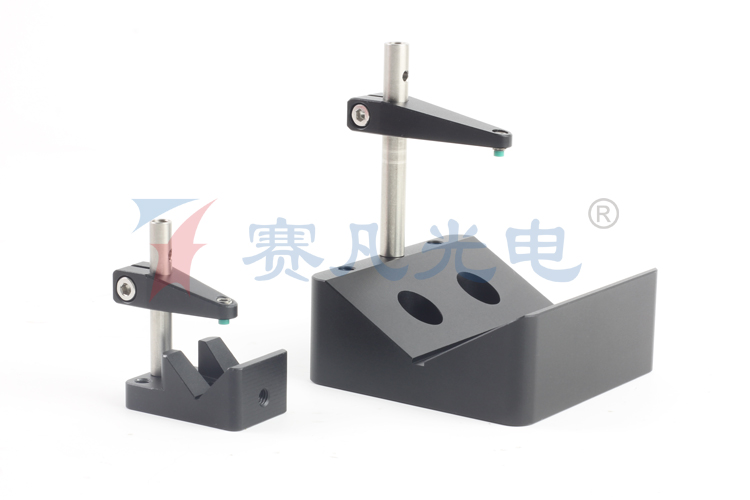

    7MM11 系列 V 型镜架


    特点：

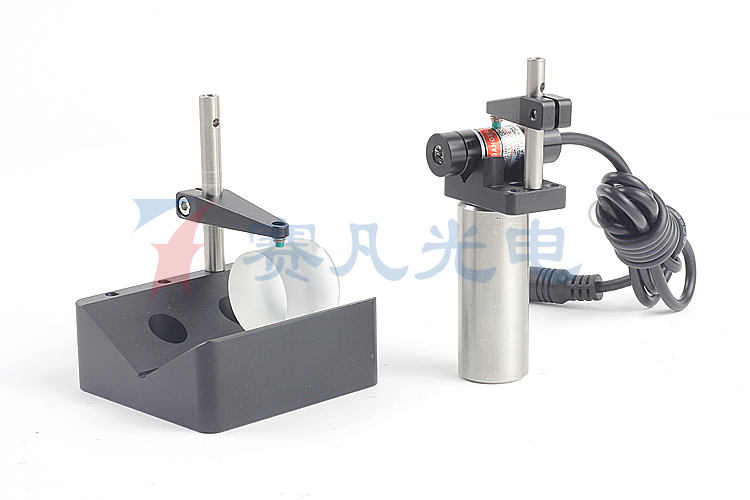

    1、主要用于装卡梯度折射率透镜、柱体激光器、光纤准直镜等

    2、V 形槽装卡结构，保持 3 点接触，安装牢固稳定

    3、高度可调的装卡机构可靠地固定各类圆柱体光学器件

    4、主体采用优质铝合金，表面黑色阳极氧化处理

    5、下部有标准安装螺纹孔，方便向下连接组合，适配性强



    技术参数:

    型号

    夹持直径/mm

    自重/g

    7MM1120

    φ5~φ20

    24

    7MM1150

    φ12~φ50

    197

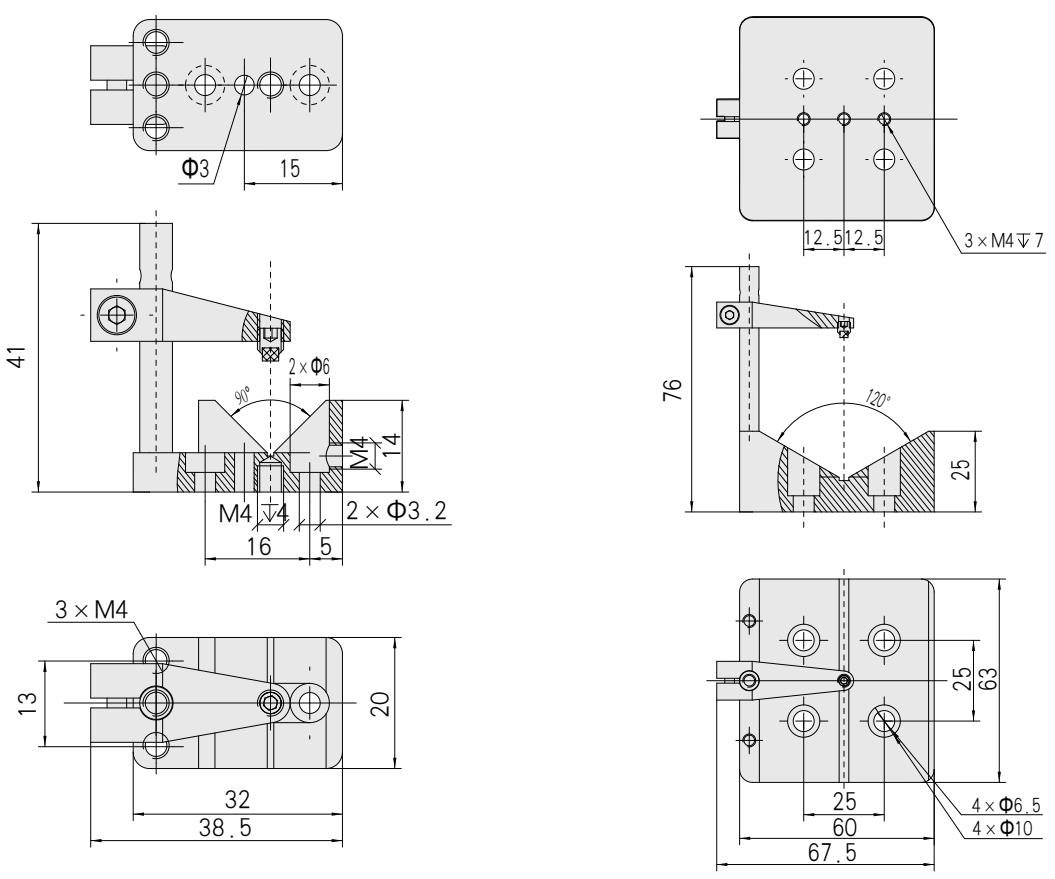

    7MM1120:                                                                         7MM1150:
