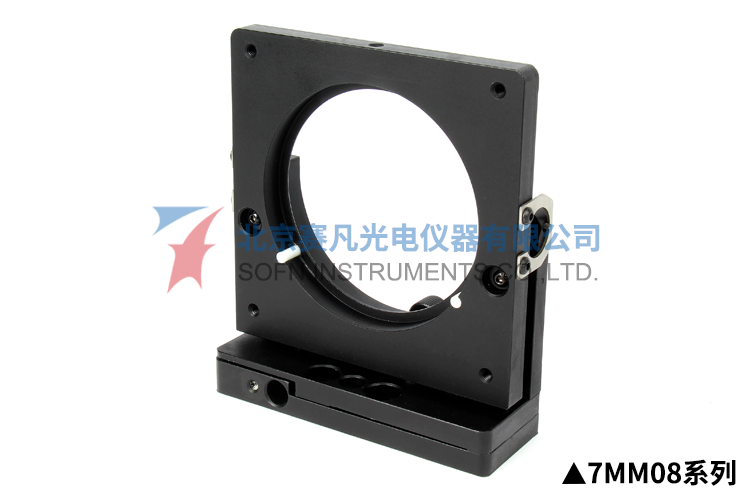

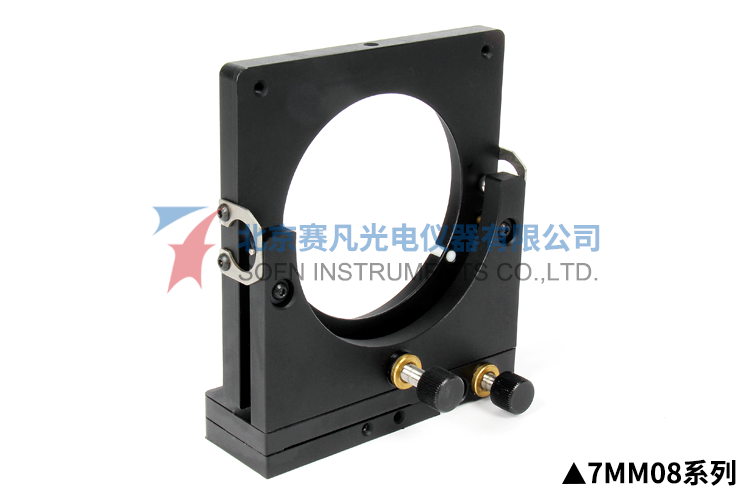

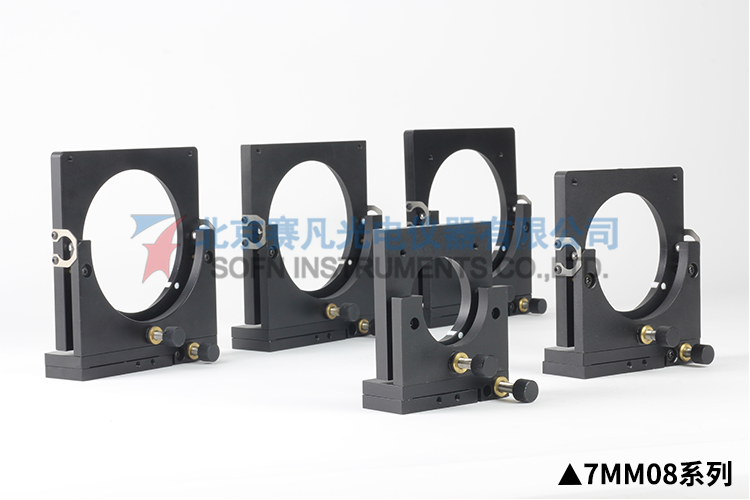

7MM08 Two-dimensional Mirror Mounts
7MM0850、7MM0880、7MM08100、7MM08102、7MM08106
1、The lens can be adjusted orthogonal coplanarity in two-dimensions to ensure the optical distance not changed; 2、M6×0.25 fine thread for adjustment (with copper nut); 3、Belleville spring for reset,reset force can be adjusted,from zero to rigidity; 4、Three PTFE supporting, protecting lens.
7MM08 Two-dimensional Mirror Mounts
Characteristics:
1、The lens can be adjusted orthogonal coplanarity in two-dimensions to ensure the optical distance not changed;
2、M6×0.25 fine thread for adjustment (with copper nut);
3、Belleville spring for reset,reset force can be adjusted,from zero to rigidity;
4、Three PTFE supporting, protecting lens.
Ancillary products:

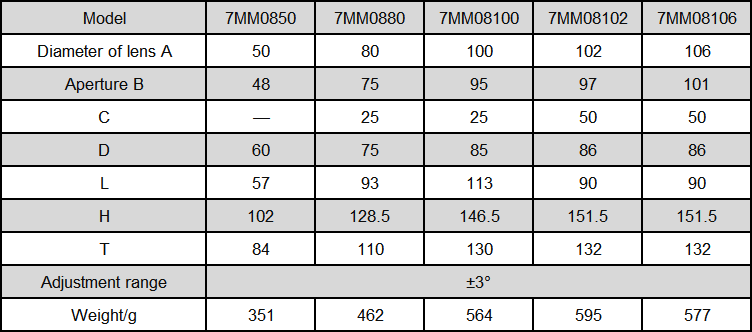

Specifications:
Unit:mm

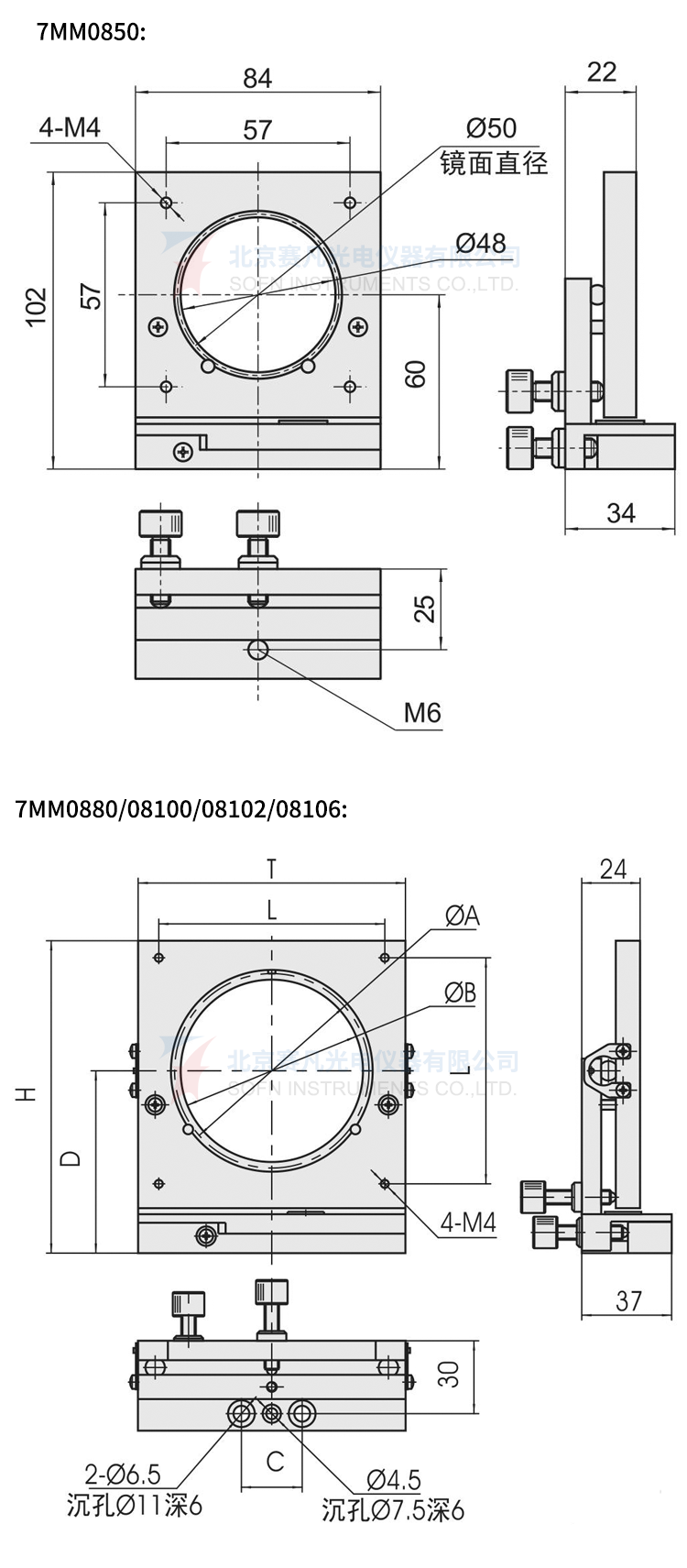

Product drawings:
7MM0850、7MM0880、7MM08100、7MM08102、7MM08106
