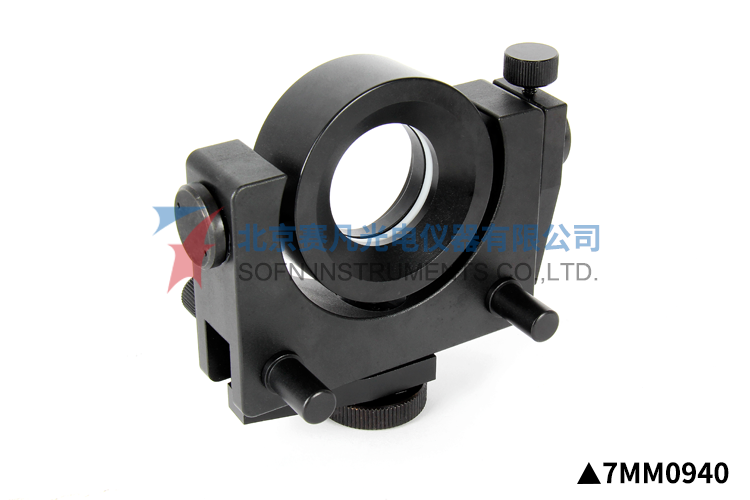

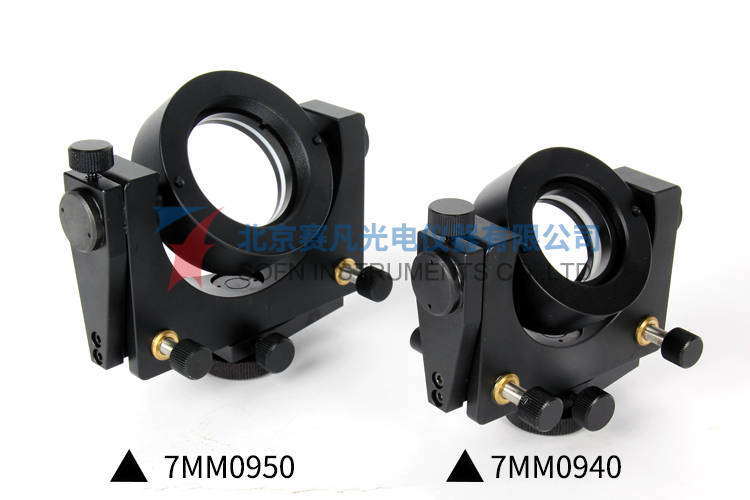

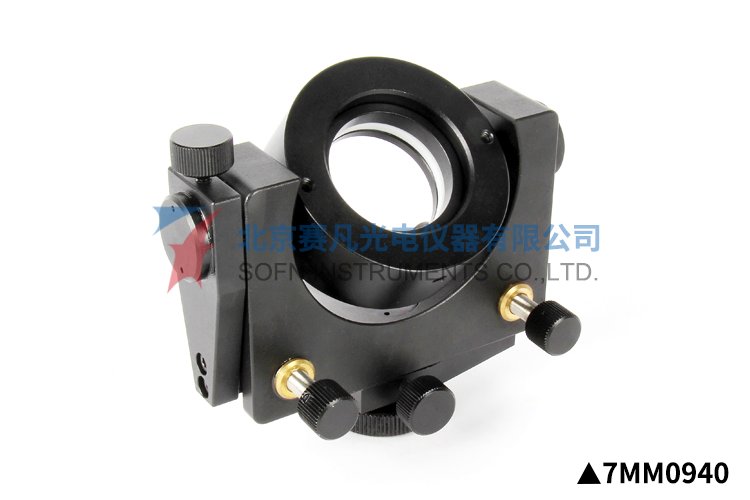

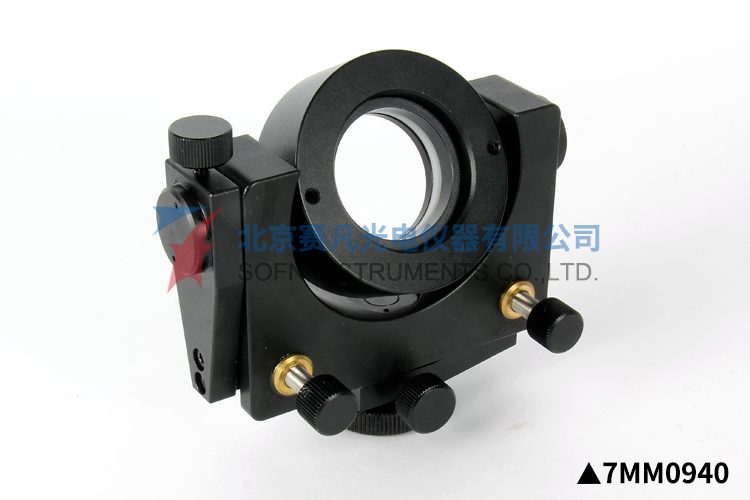

7MM0940 Two-dimensional Mirror Mount
Model：
7MM0940
Characteristics：
1、The lens can be adjusted orthogonal coplanarity in two-dimensions to ensure the optical distance not changed; 2、M6×0.25 fine thread for adjustment (with copper nut); 3、360° coarse adjustment,±3° fine adjustment; 4、Mounting for 40mm diameter lens.
7MM0940 Two-dimensional Mirror Mount
Characteristics:
1、The lens can be adjusted orthogonal coplanarity in two-dimensions to ensure the optical distance not changed;
2、M6×0.25 fine thread for adjustment (with copper nut);
3、360° coarse adjustment,±3° fine adjustment;
4、Mounting for 40mm diameter lens.
Ancillary products:

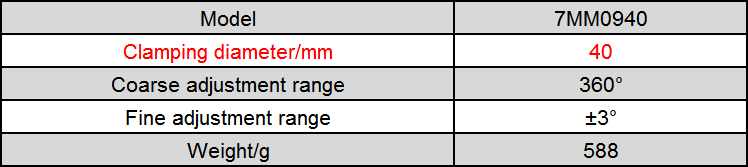

Specifications:

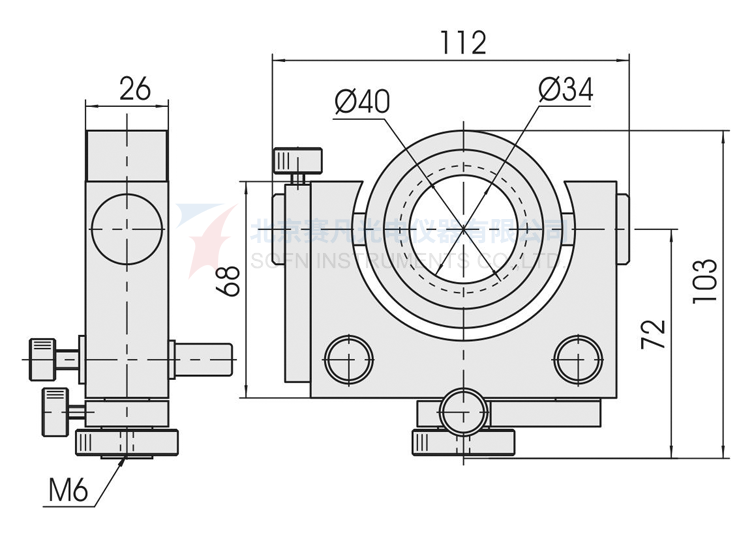

Product drawings:
7MM0940
