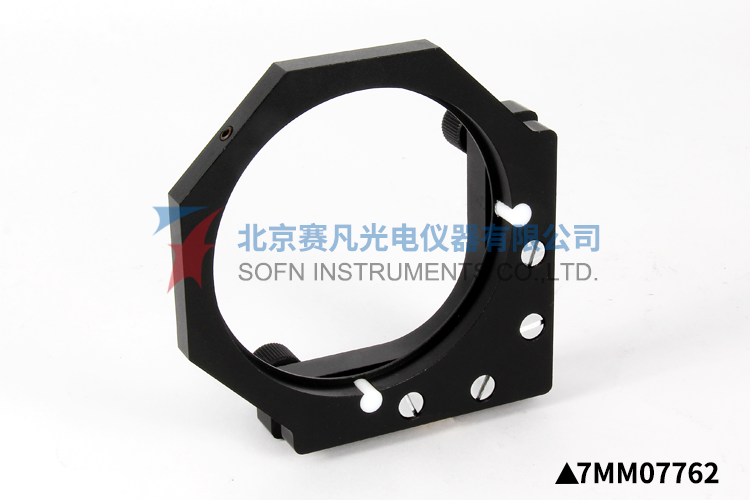

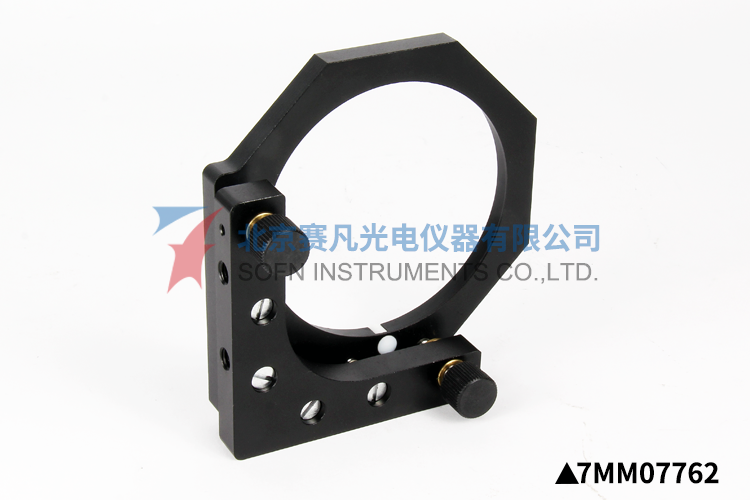

7MM07762 Two-dimensional Mirror Mount
Model：
7MM07762
Characteristics：
1、M6×0.25 fine thread adjustment (with copper nut); 2、High performance tension spring for reset with uniform resetting force to reduce stress; 3、Range of adjustment ±3°; 4、Three PTFE supporting, protecting lens; 5、Mounting holes in two directions, suitable for different optical path.
7MM07762 Two-dimensional Mirror Mount
Characteristics:
1、M6×0.25 fine thread adjustment (with copper nut);
2、High performance tension spring for reset with uniform resetting force to reduce stress;
3、Range of adjustment ±3°;
4、Three PTFE supporting, protecting lens;
5、Mounting holes in two directions, suitable for different optical path.
Ancillary products:

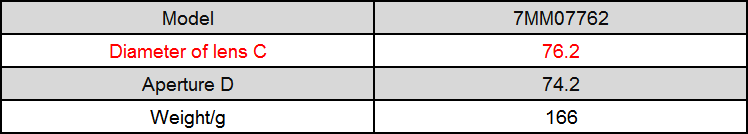

Specifications:
Unit:mm

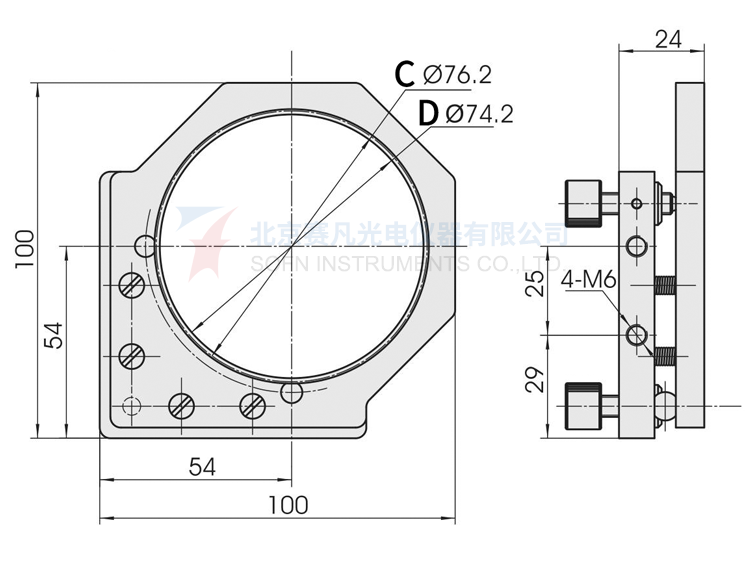

Product drawings:
7MM07762
