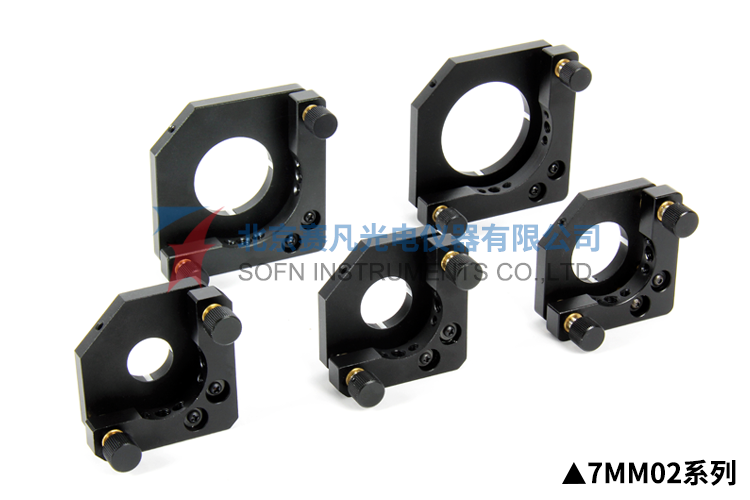

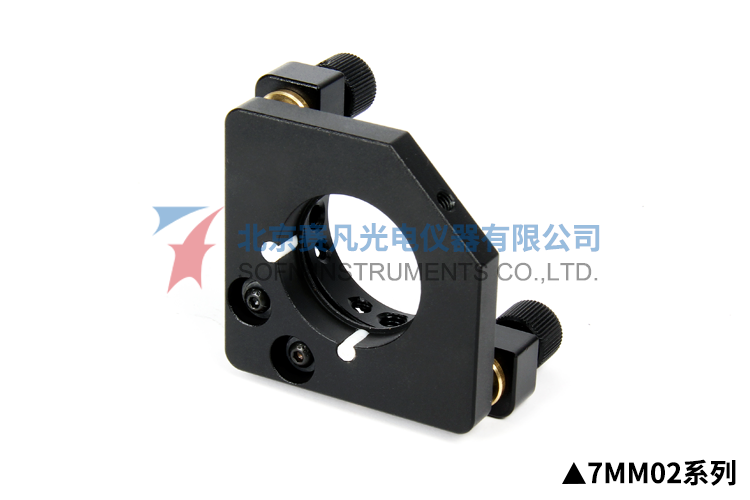

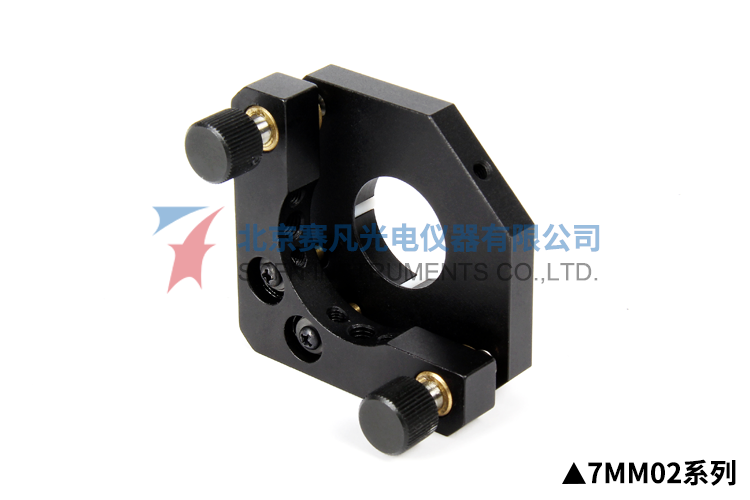

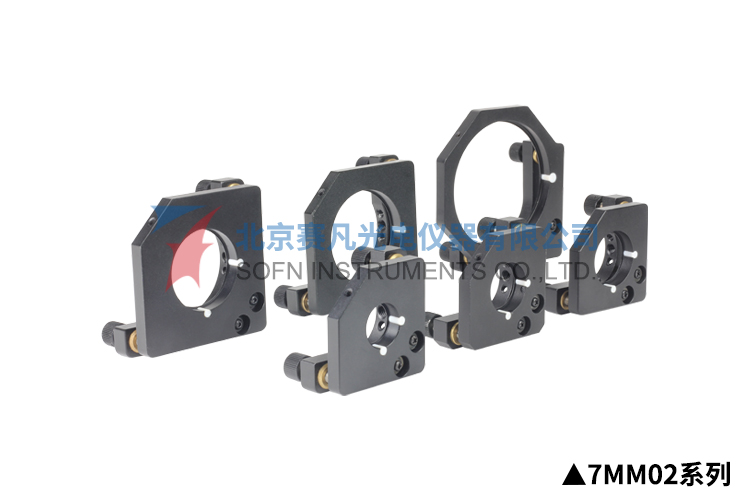

7MM02 Two-dimensional Mirror Mounts
7MM0220、7MM02254、7MM0240、7MM0250、7MM0275、7MM02762
1、M6×0.25 fine thread for adjustment(with copper nut); 2、Belleville spring for reset,reset force can be adjusted,from zero to rigidity; 3、Range of adjustment ±3°； 4、Three PTFE supporting,protecting lens; 5、Mounting holes in two directions,suitable for different optical path.
7MM02 Two-dimensional Mirror Mounts
Characteristics:
1、M6×0.25 fine thread for adjustment(with copper nut);
2、Belleville spring for reset,reset force can be adjusted,from zero to rigidity;
3、Range of adjustment ±3°；
4、Three PTFE supporting,protecting lens;
5、Mounting holes in two directions,suitable for different optical path.
Ancillary products:
Spceifications:
Unit:mm

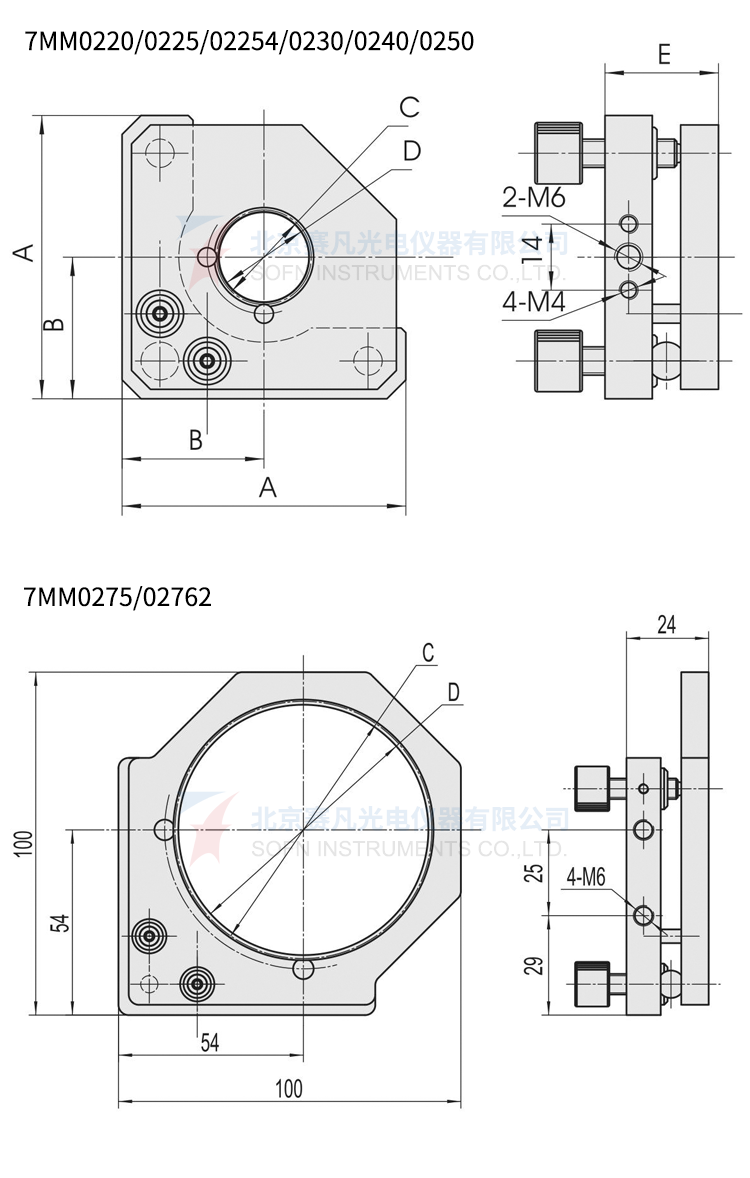

Product drawings:
7MM0220、7MM0225、7MM02254、7MM0230、7MM0240、7MM0250、7MM0275、7MM02762
