7MM01 Two-dimensional Mirror Mounts
7MM0115、7MM0120、7MM01254、7MM0140、7MM0150等
1、M6×0.25 fine thread for adjustment(with copper nut); 2、Belleville spring for reset,reset force can be adjusted,from zero to rigidity; 3、Range of adjustment ±3°； 4、Barrel clamping lens,lens can be installed before fixed to the mount; 5、PTFE gasket,protecting lens; 6、Mounting holes in two directions,suitable for different optical path.

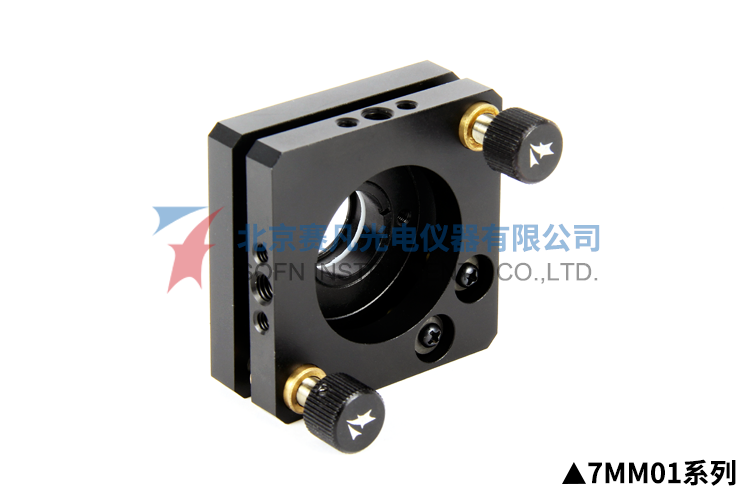

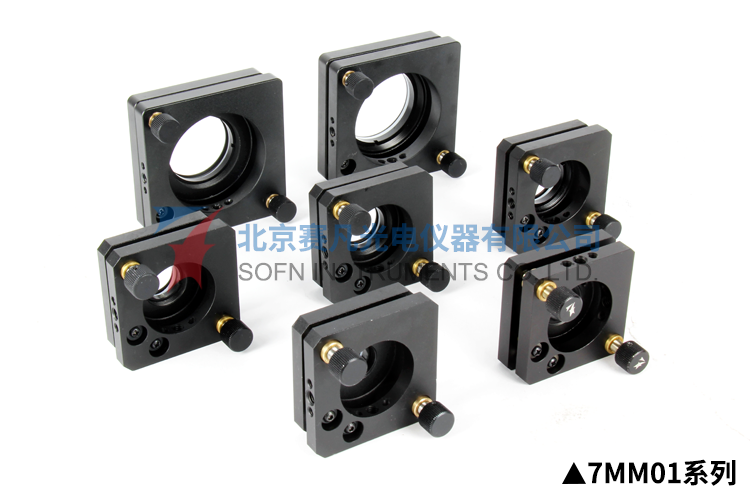

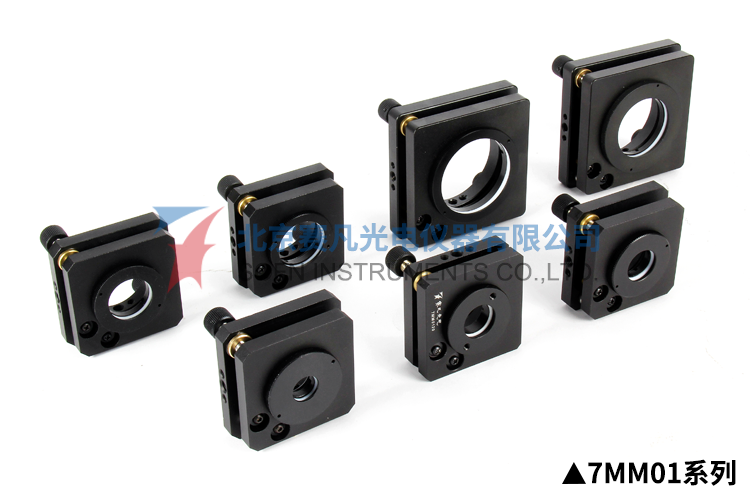

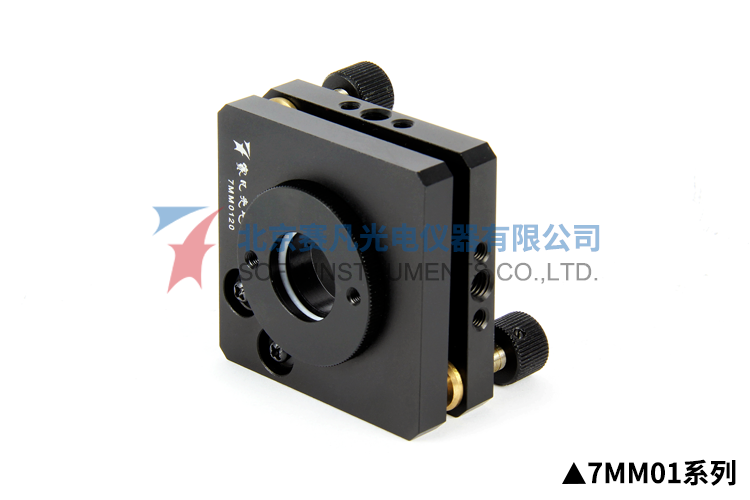

7MM01 Two-dimensional Mirror Mounts
Characteristics:
1、M6×0.25 fine thread for adjustment(with copper nut);
2、Belleville spring for reset,reset force can be adjusted,from zero to rigidity;
3、Range of adjustment ±3°；

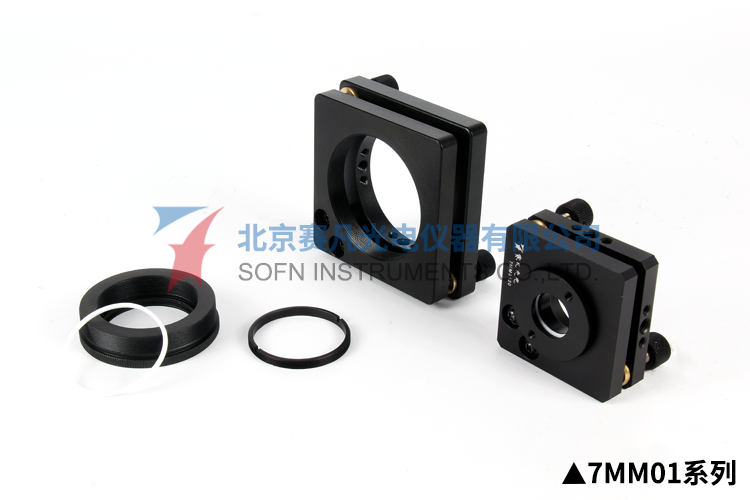

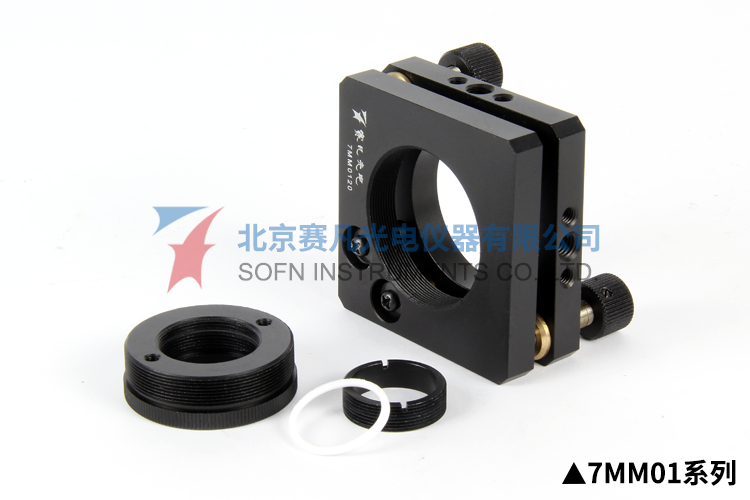

4、Barrel clamping lens,lens can be installed before fixed to the mount;
5、PTFE gasket,protecting lens;
6、Mounting holes in two directions,suitable for different optical path.
Ancillary products:

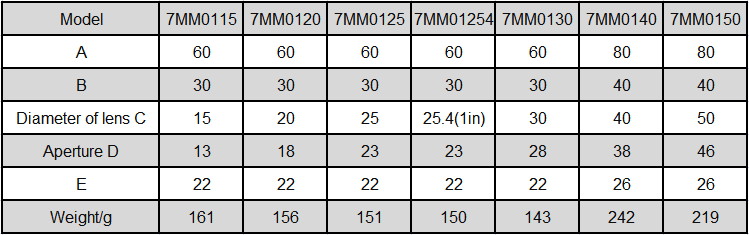

Specifications:
Unit:mm

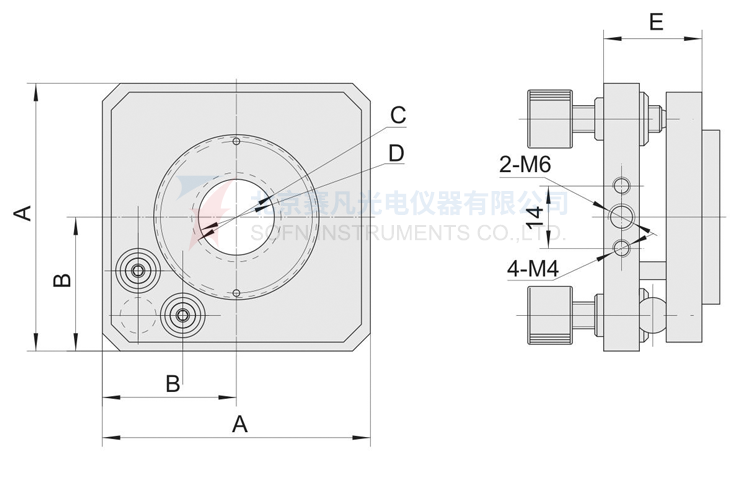

Product drawings:
7MM0115、7MM0120、7MM0125、7MM01254、7MM0130、7MM0140、7MM0150
