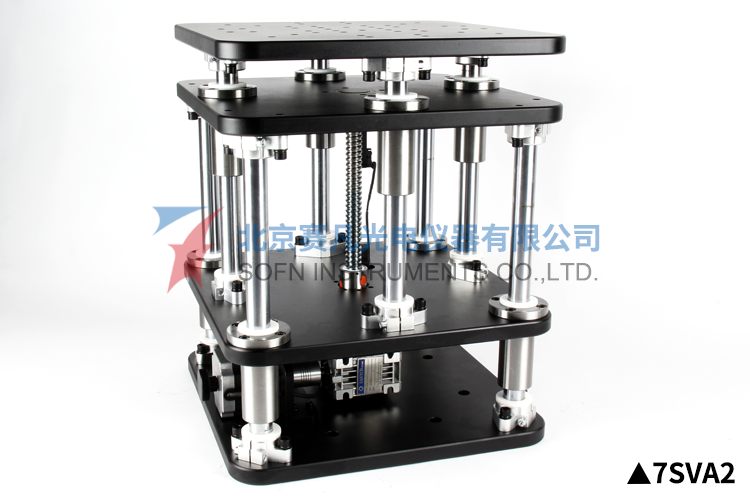

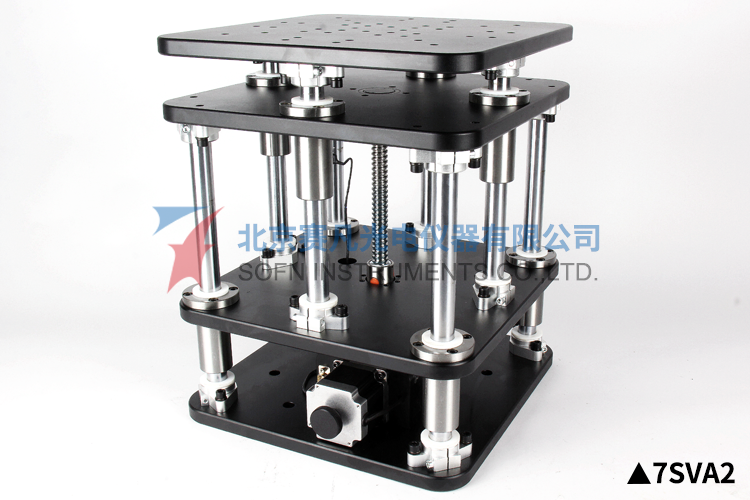

7SVA2 Series Motorized Precision Vertical Translation Stages
7SVA250A、7SVA2100A、7SVA2150A、7SVA2200A、7SVA2300A
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control; 2、Driving force is in the center of horizontal platform without unbalance loading problem,perfect stability; 3、Driving by high quality ball screw rod ,good repeatibility,long life; 4、Precision linear bearing guide rail supporting for with the middle suspended),high repeatability,big load; 5、Quantitative for the vertical translation;
7SVA2 Series Motorized Precision Vertical Translation Stages
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Driving force is in the center of horizontal platform without unbalance loading problem,perfect stability;
3、Driving by high quality ball screw rod ,good repeatibility,long life;
4、Precision linear bearing guide rail supporting for with the middle suspended),high repeatability,big load;
5、Quantitative for the vertical translation;
6、With zero and limit switch,convenient for accurate positioning and protecion;
7、Mounting holes with standard distance are distributed on the surface and the base for installation and combination.
Ancillary products:

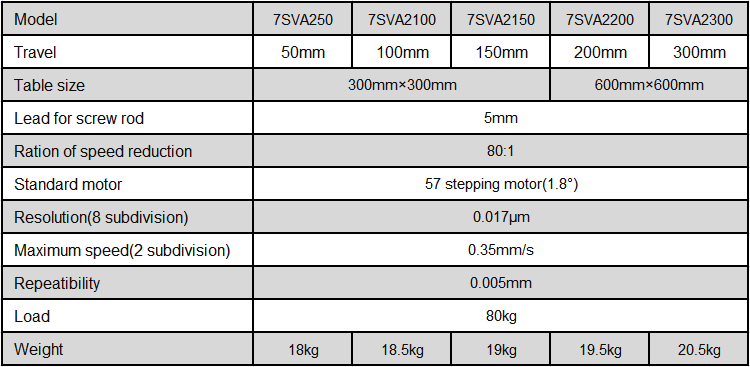

Specifications:

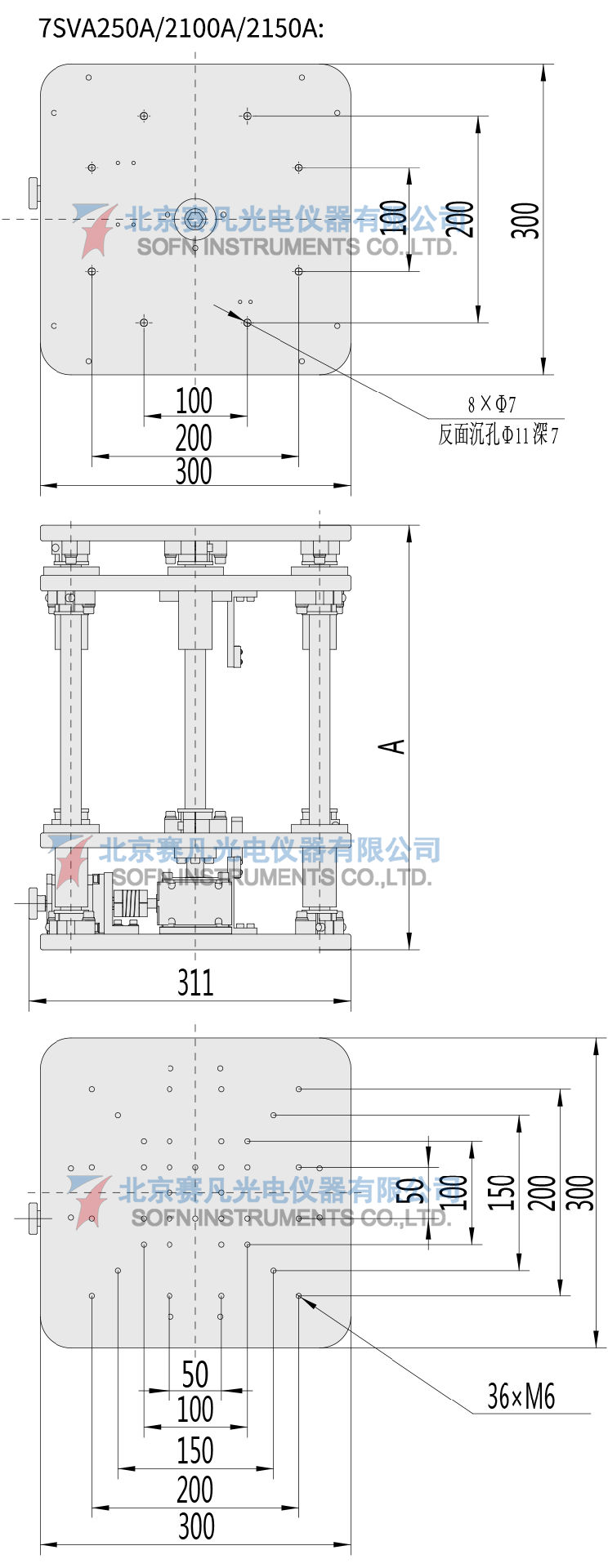

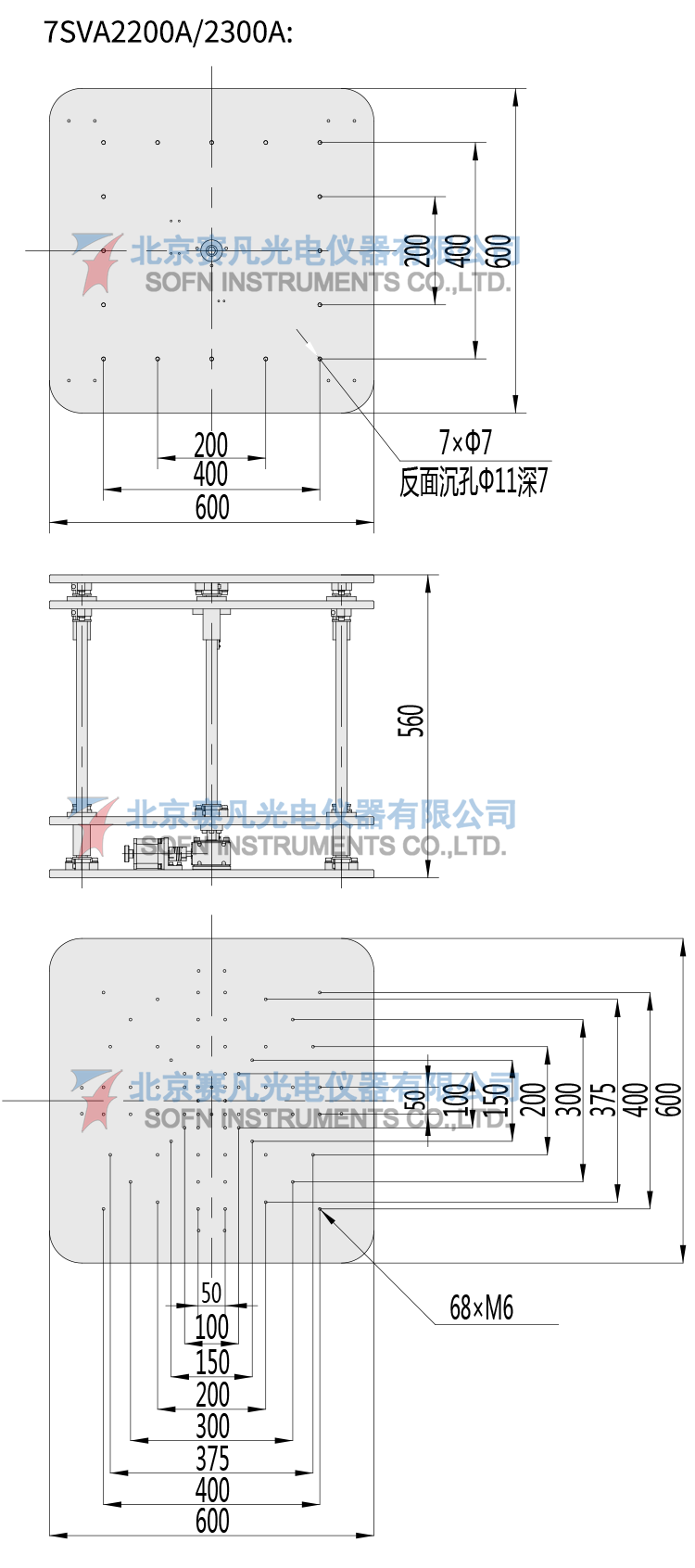

Product drawings:
7SVA250、7SVA2100、7SVA2150、7SVA2200、7SVA2300
