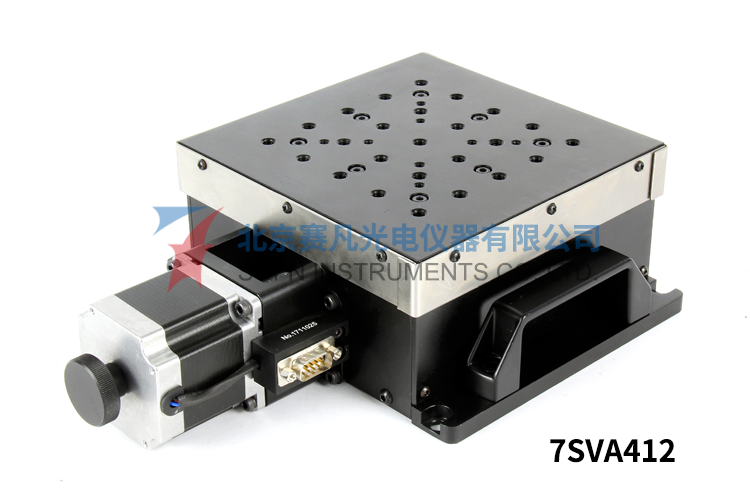

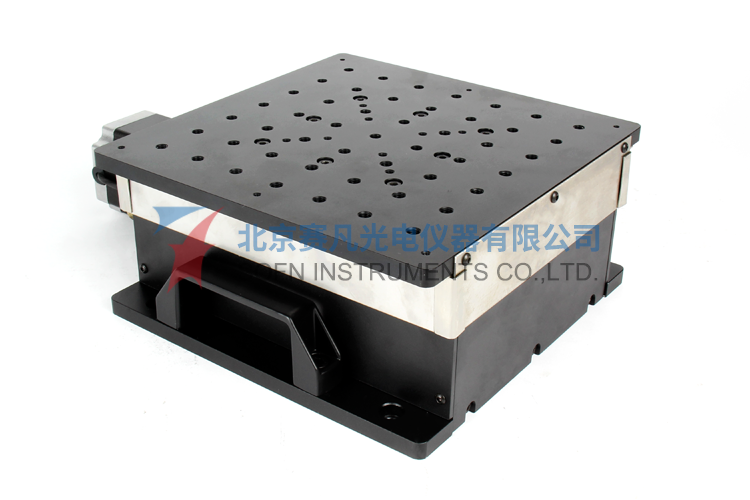

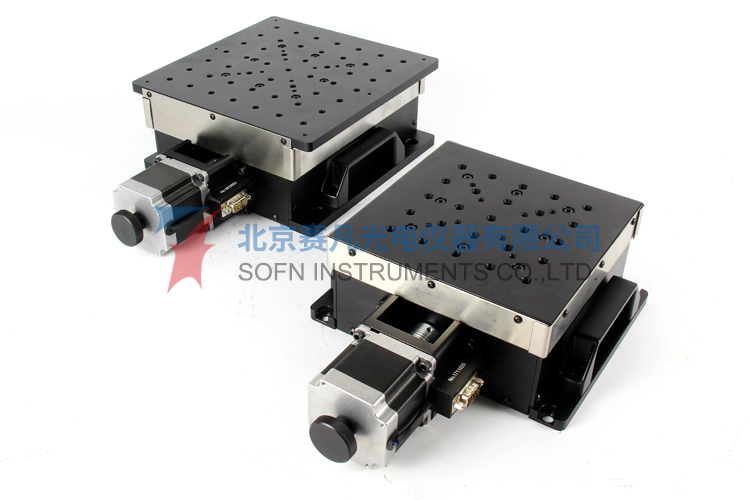

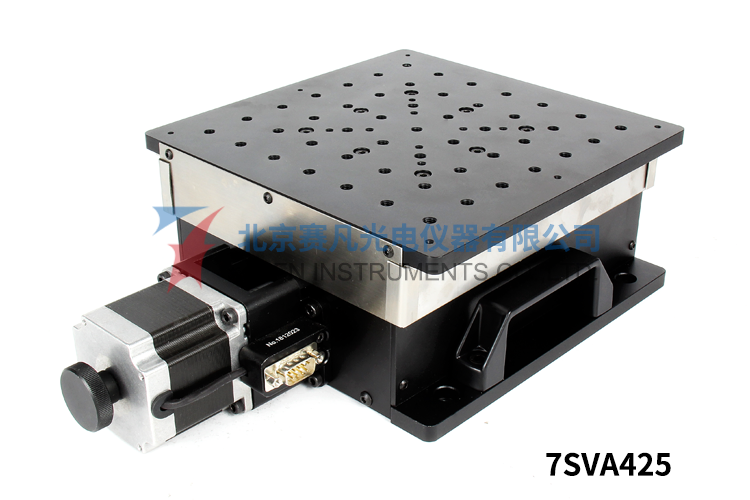

7SVA4 Series Motorized Precision Vertical Translation Stages
7SVA412、7SVA425
1、It is equipped with a standard stepping motor and a standard DB9 plug,with the 7SC series motion controller can realize the automatic control; 2、Driving by a precision screw rod ,high resolution; 3、The guide rail adopts cross roller cylinder guide,comfortable motion,good linearity,large bearing capacity; 4、Wedge type vertical translation,the lower overall height and stable running; 5、The vertical guide adopts a precision linear slide block guide rail,high precision of positioning,good stability;
7SVA4 Series Motorized Precision Vertical Translation Stangs
Characteristics:
1、It is equipped with a standard stepping motor and a standard DB9 plug,with the 7SC series motion controller can realize the automatic control;
2、Driving by a precision screw rod ,high resolution;
3、The guide rail adopts cross roller cylinder guide,comfortable motion,good linearity,large bearing capacity;
4、Wedge type vertical translation,the lower overall height and stable running;
5、The vertical guide adopts a precision linear slide block guide rail,high precision of positioning,good stability;
6、The seal device is made of stainless steel,hot resistant and laser resistant;
7、The ferromagnetic stainless steel stage will be replaceable,used with the 7MBM series of magnetic base together,a devide can be fixed on the arbitrary position.
Ancillary product:

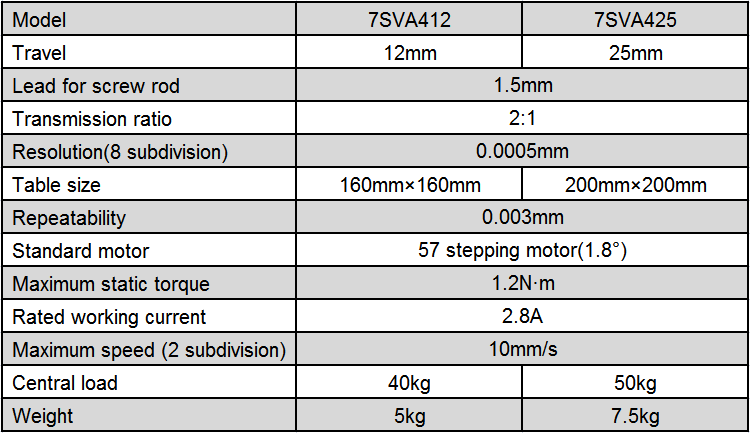

Specifications:

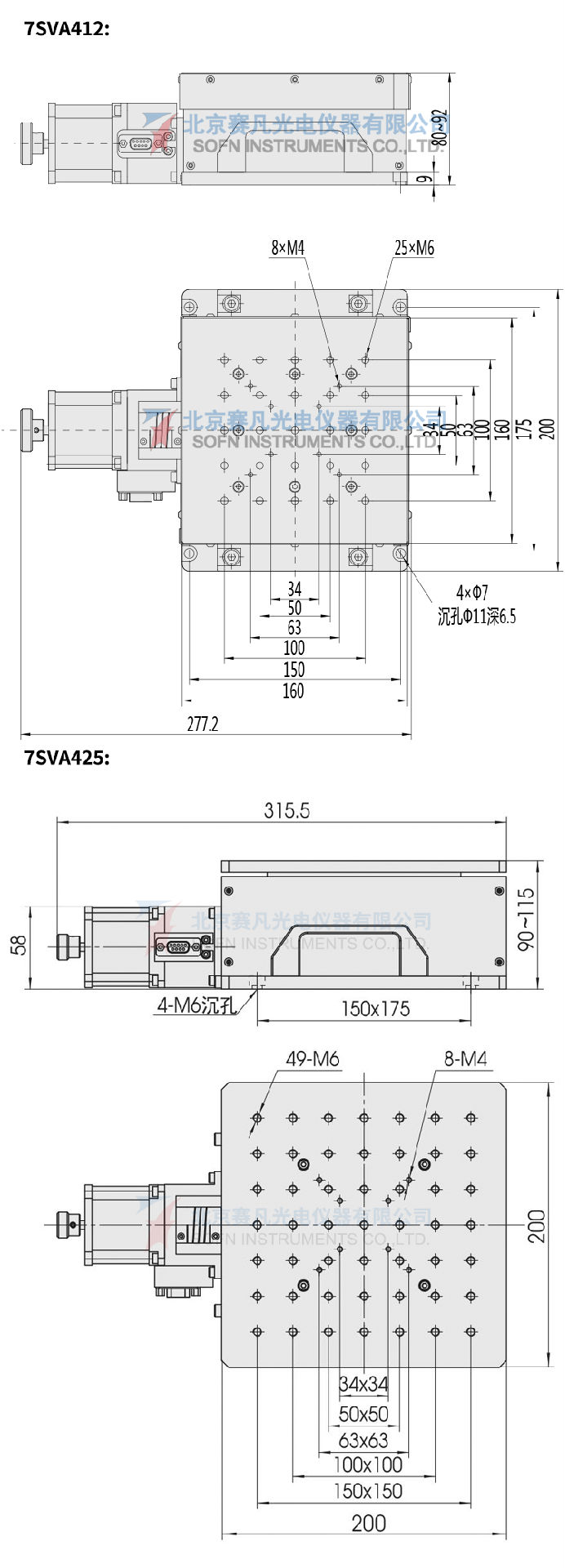

Product drawings:
7SVA412、7SVA425
