7SVA160 Motorized Precision Vertical Translation Stage
7SVA160
1、Equipped with a stepping motor and a standard SB9 plug, 7SC series motion controllers for automatic control; 2、Big travel,not quantitative,vertical translation with heavy load; 3、Scissor support,driving by precision grinding screw rod,dual guide rails with five axes over-location ensures absolute smooth,comfortable,high precision and big load; 4、Multi holes on both upper and lower surfaces,either one can be the installation surface.
7SVA160 Motorized precision Vertical Translation Stage
Characteristics:
1、Equipped with a stepping motor and a standard SB9 plug, 7SC series motion controllers for automatic control;
2、Big travel,not quantitative,vertical translation with heavy load;
3、Scissor support,driving by precision grinding screw rod,dual guide rails with five axes over-location ensures absolute smooth,comfortable,high precision and big load;
4、Multi holes on both upper and lower surfaces,either one can be the installation surface.
Ancillary products:

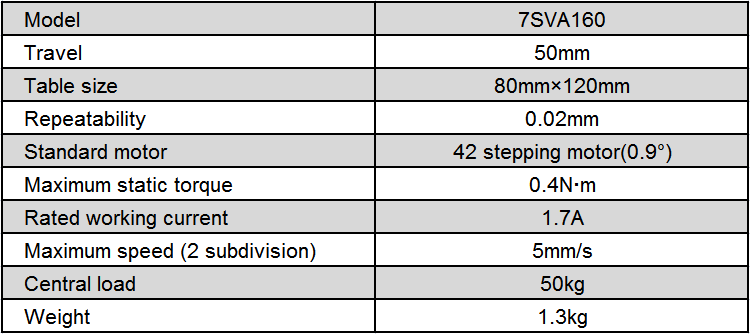

Specifications:

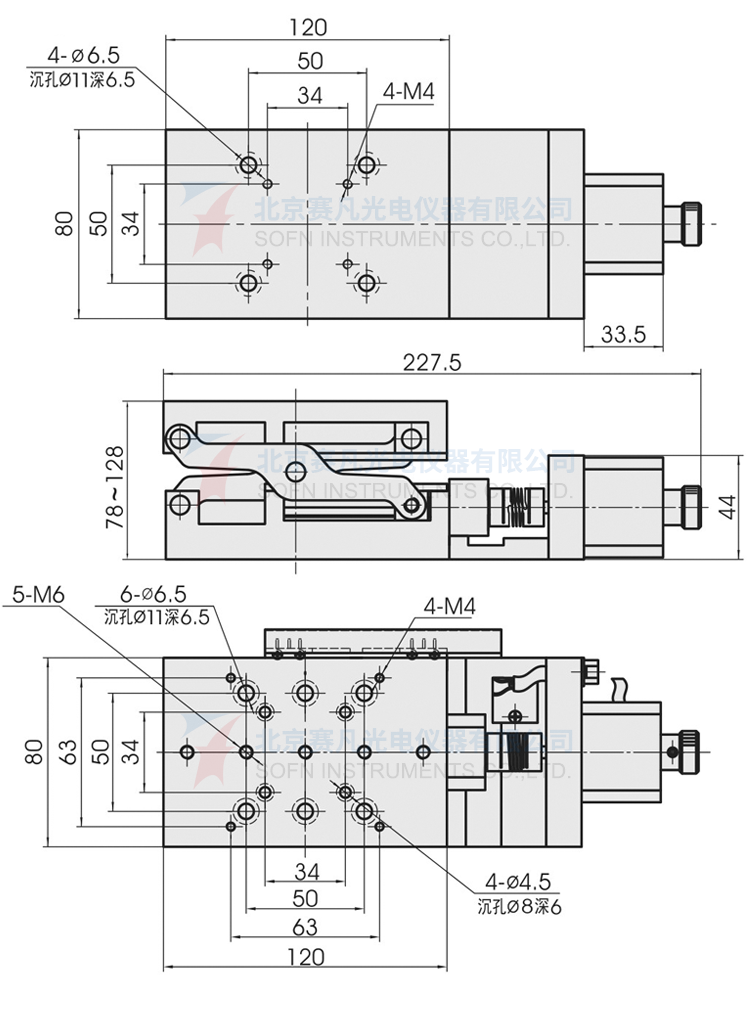

Product drawings:
7SVA160
