7STM01213 Precision Translation Stage
7STM01213
1、Precision steel ball with grinding steel rods,high precision,low cost and low load bear;2、The displacement adjustment adopts micrometer head; 3、Micrometer head on one side of the stage,saving space; 4、Spring reset to eliminate the axial clearance; 5、Mounting holes with standard distance are distributed on the surface and the base for installation and combination; 6、Can be combined with other series stages to compose a multi dimensional adjusting rack.

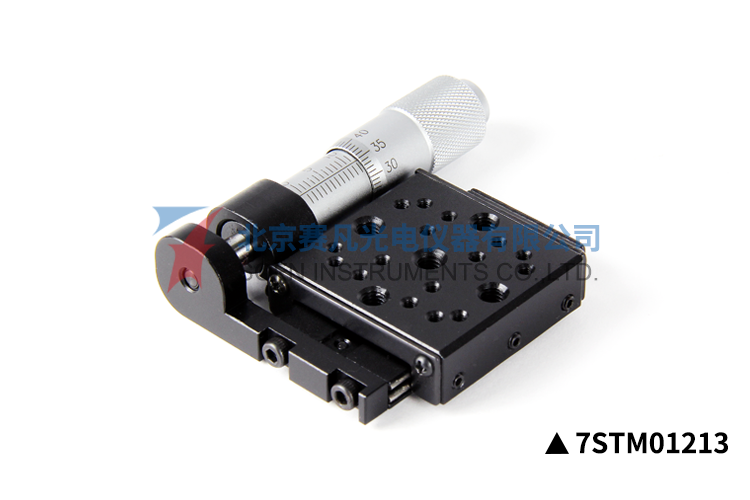

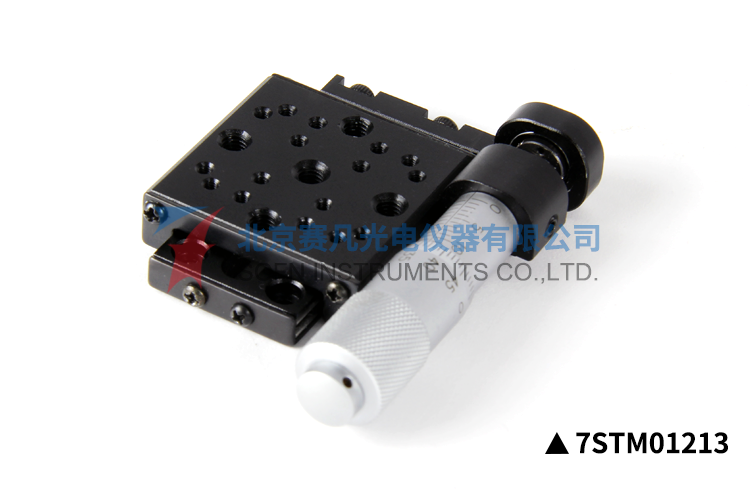

7STM01213 Lithe Precision Translation Stage
Characteristics:
1、Precision steel ball with grinding steel rods,high precision,low cost and low load bearing;
2、The displacement adjustment adopts micrometer head;
3、Micrometer head on one side of the stage,saving space;
4、Spring reset to eliminate the axial clearance;
5、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
6、Can be combined with other series stages to compose a multi dimensional adjusting rack.
Ancillary products:

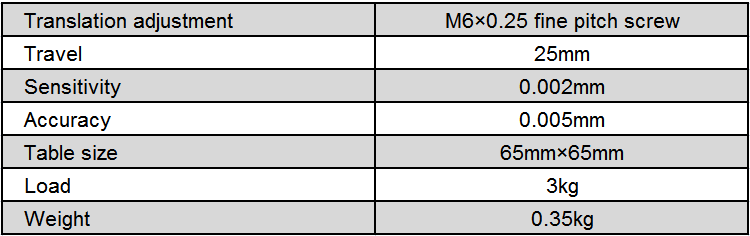

Specifications:

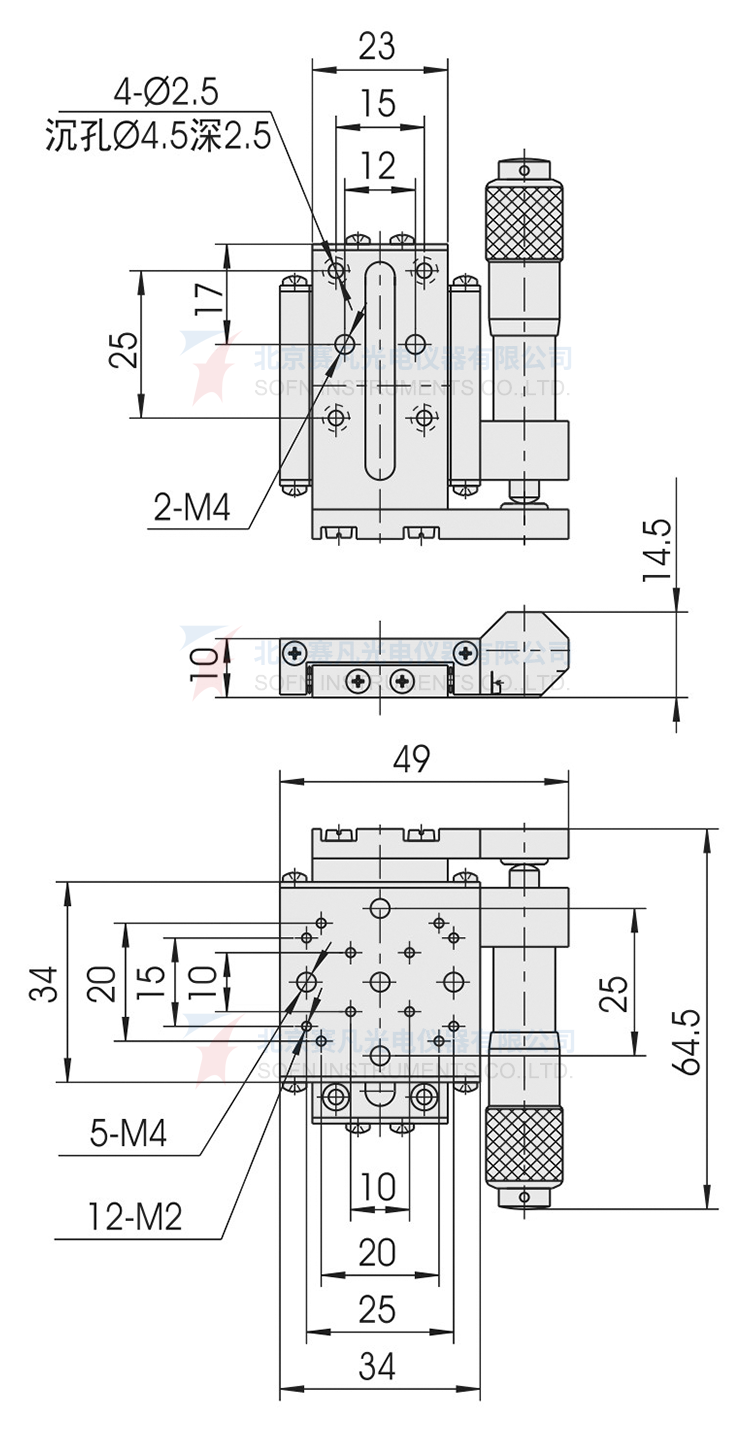

Product drawings:
7STM01213
