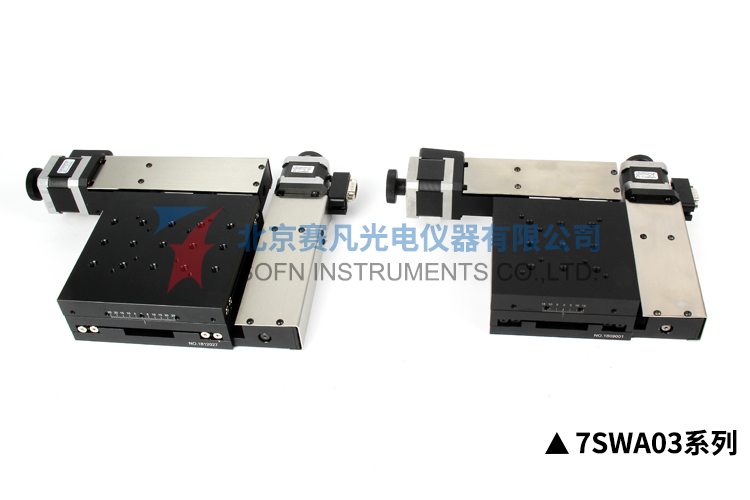

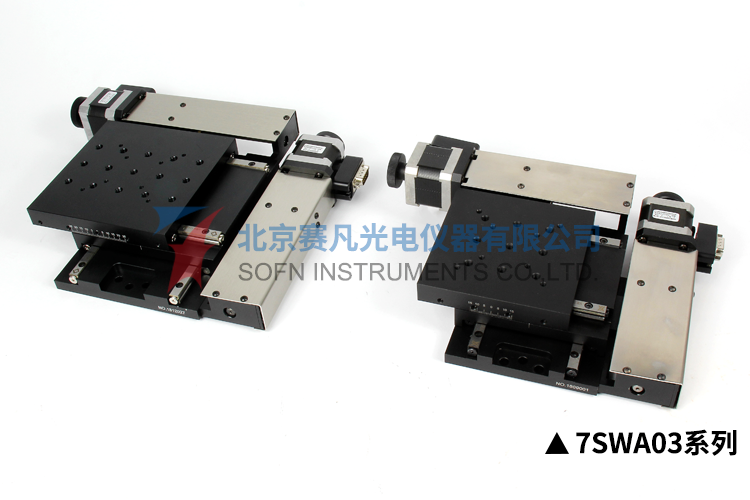

7SWA03 Series Motorized Biaxial Translation Stage
7SWA0330、7SWA0350
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;2、Compact integral design driving by the side of screw rod,saving space;3、Driving by precision grinding screw rod,high resolution;4、Cross roller guide with comfortable movement,high precision and big load;5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
7SWA03 Series Motorized Biaxial Translation Stages
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Compact integral design driving by the side of screw rod,saving space;
3、Driving by precision grinding screw rod,high resolution;
4、Cross roller guide with comfortable movement,high precision and big load;
5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
6、Hand wheel to adjust by manual;
7、With zero and limit switch,convenient for accurate positioning and protection;
8、Mounting holes are distributed on the surface and the base for installation and combination.
Ancillary product:

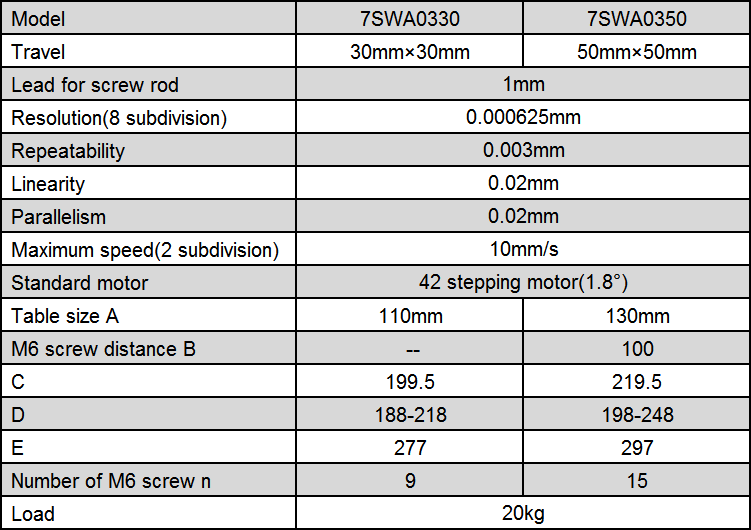

Specifictions:

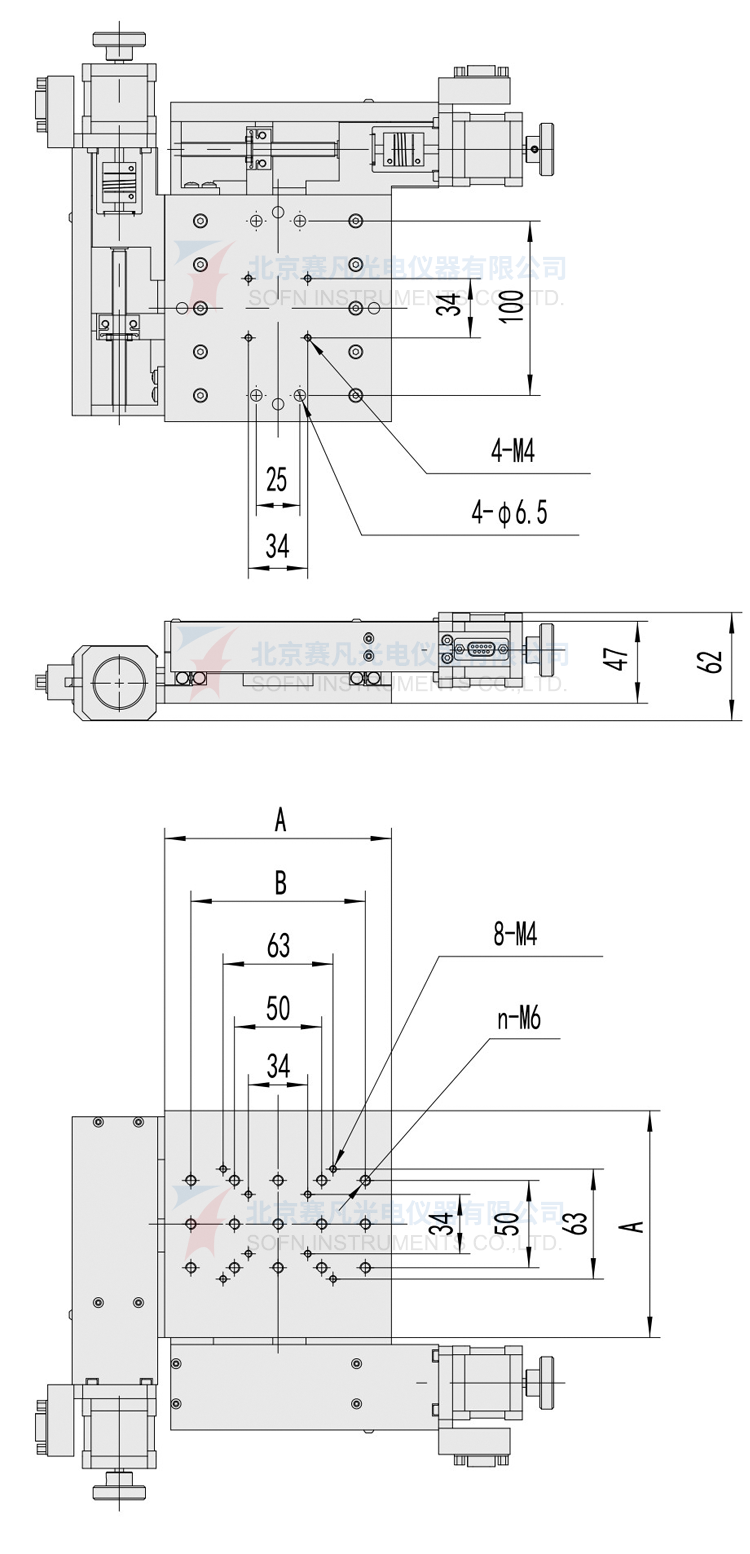

Product drawings:

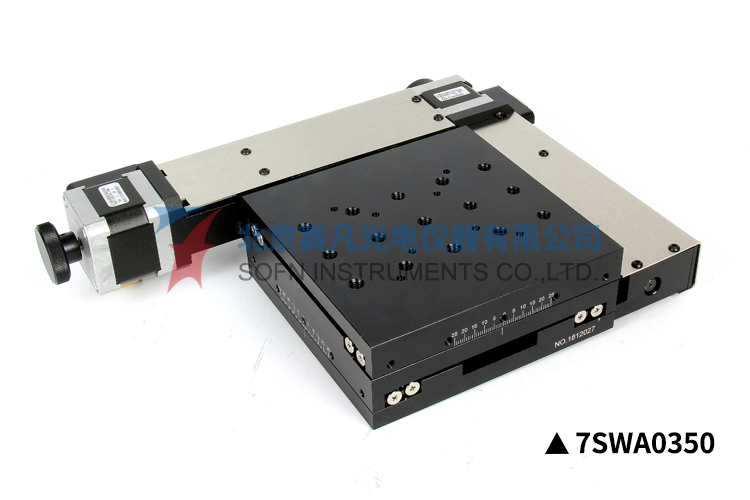

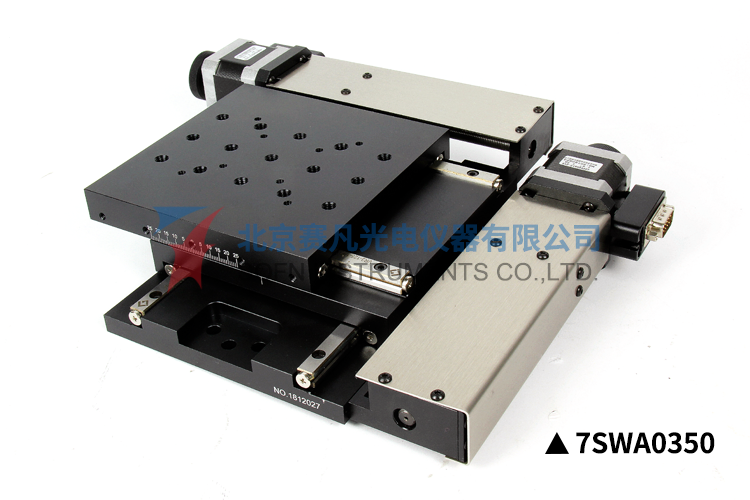

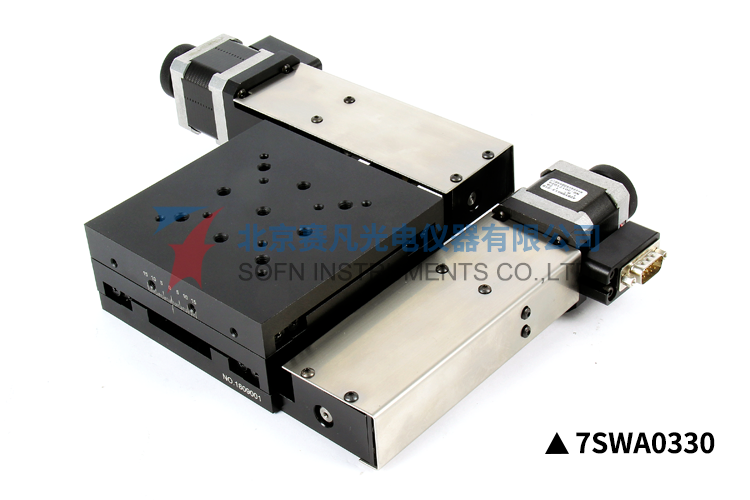

7SWA0330、7SWA0350
