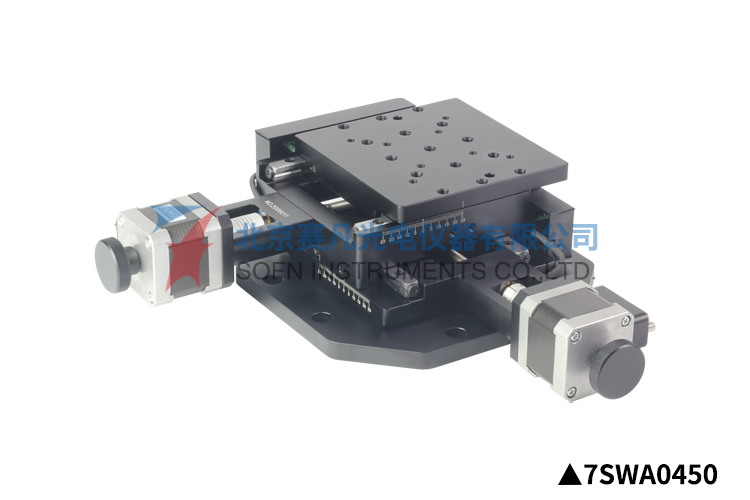

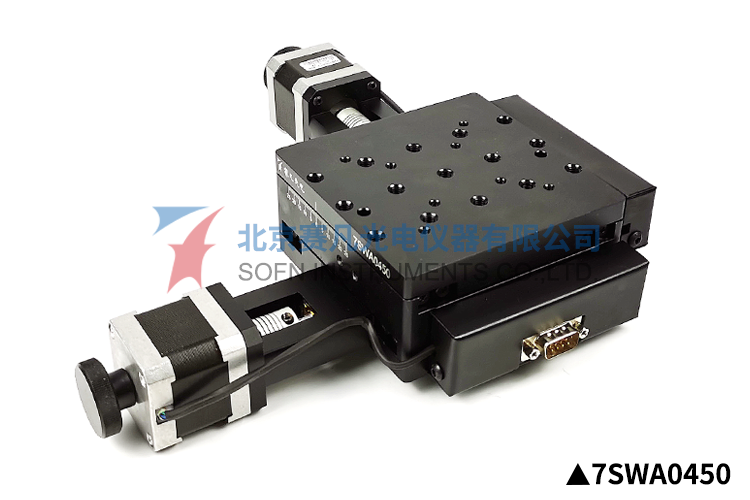

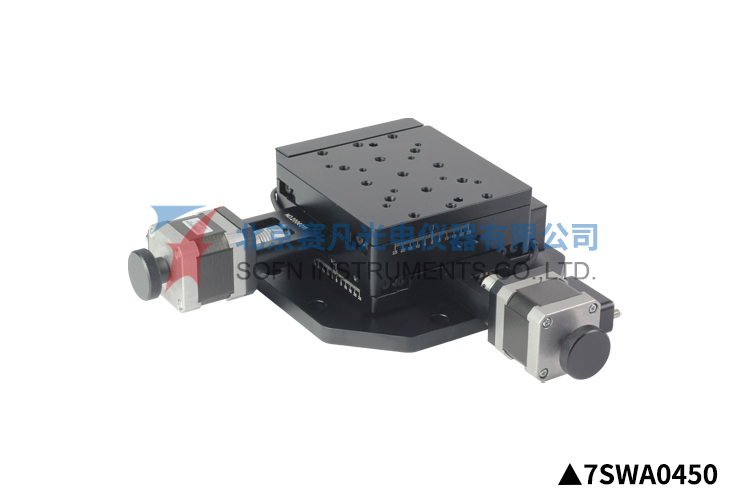

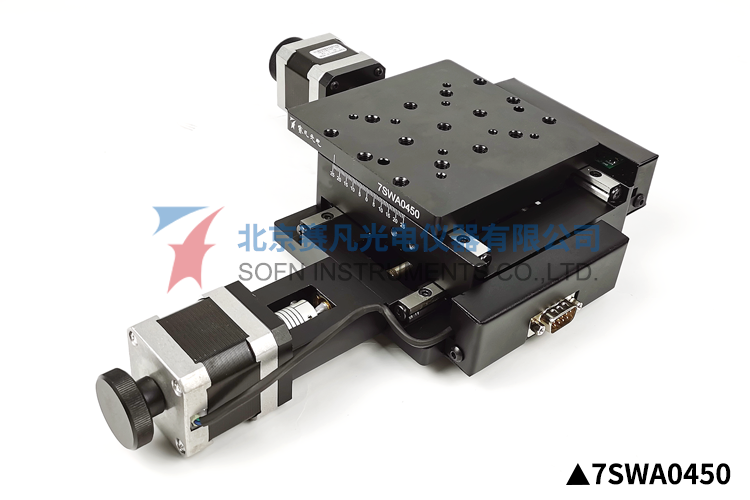

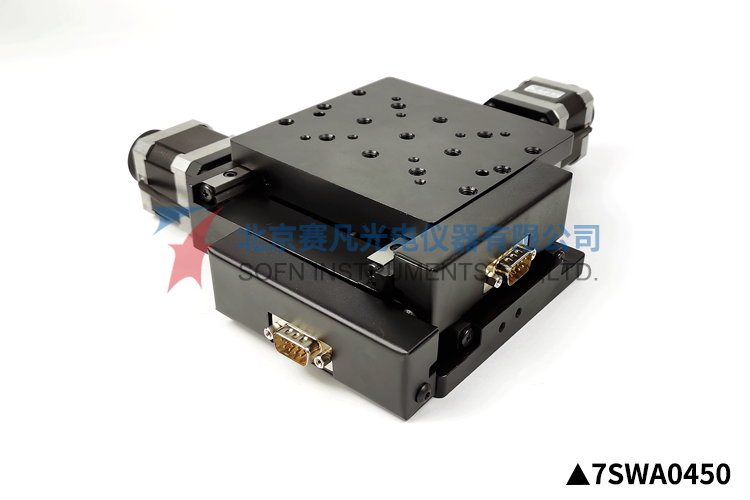

7SWA04 Series Motorized Biaxial Translation Stage
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug, 7SC series motion controllers for automatic control;
2、Compact integral design driving by the center of screw rod, saving space;
3、Driving by precision grinding screw rod, high resolution;
4、Cross roller guide with comfortable movement, high precision and big load;
5、High quality elastic coupling for connecting motor and ball screw rod, synchronous transmission and little noise;
6、Hand wheel to adjust by manual;
7、With zero and limit switch,convenient for accurate positioning and protection;
8、Mounting holes are distributed on the surface and the base for installation and combination.
Ancillary product:

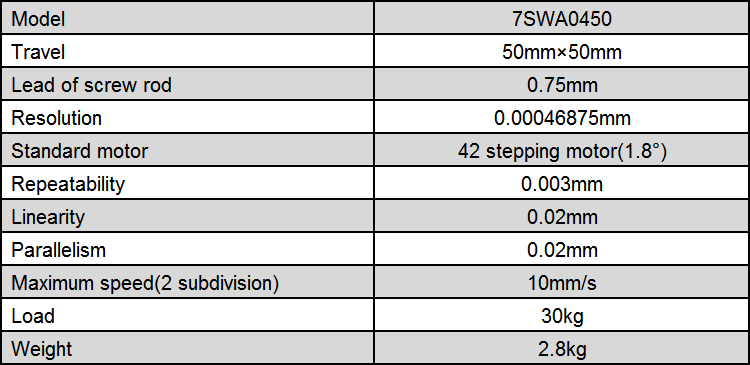

Specifictions:

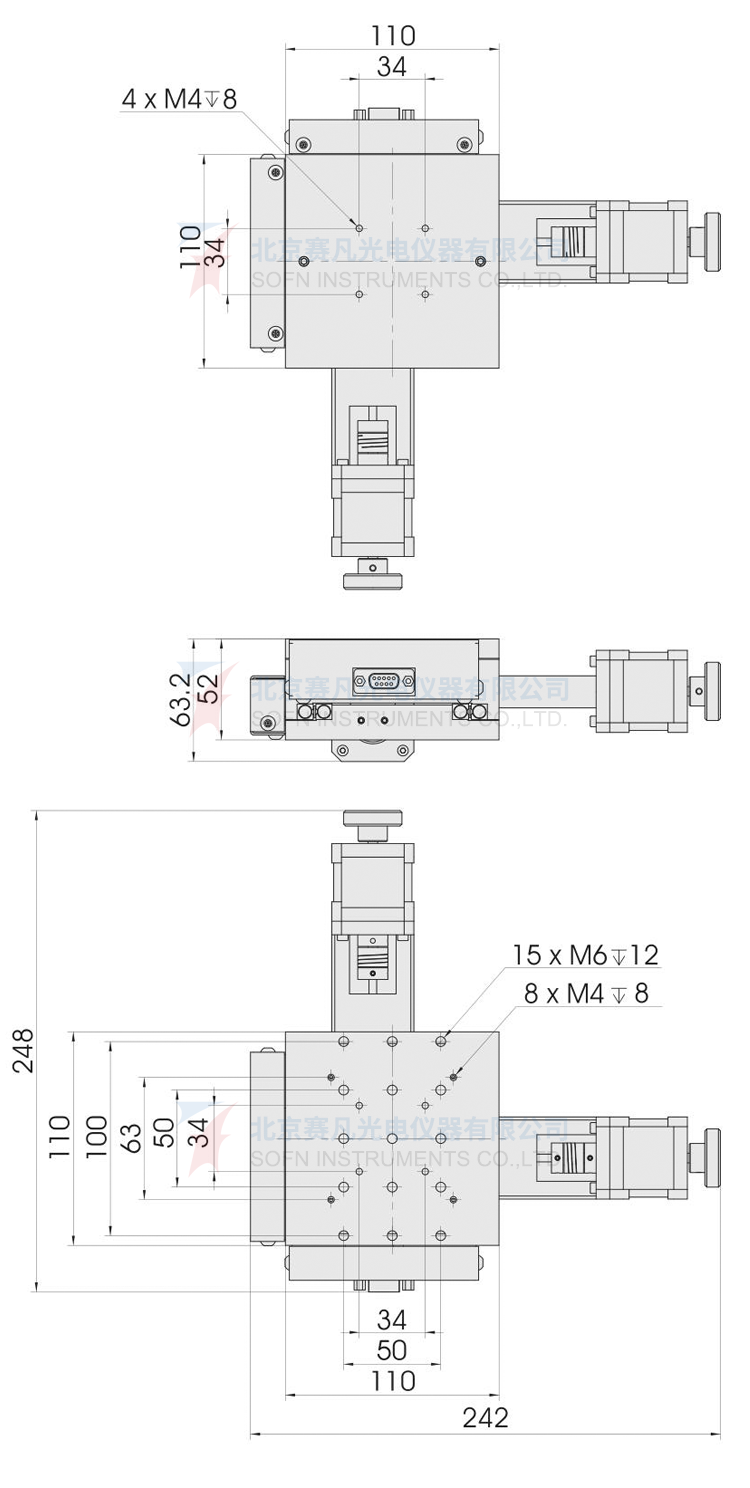

Product drawings:
7SWA0450
