7SWA01 Series Motorized Biaxial Translation Stages
7SWA01100、7SWA01100A、7SWA01200、7SWA01200A
1、Equipped with a stepping motor and a standard DB9 or aviation plug,7SC series motion controllers for automatic control;2、Compact integral design,high precision of orthogonal;3、Driving by high quality ball screw rod,good repeatability,long life,big load; 4、Cross roller guide with comfortable movement,high precision and big load;5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
7SWA01 Series Motorized Biaxial Translation Stages
Characteristics:
1、The ordinary model is equipped with a stepper motor and an aviation plug, and the A model is equipped with a stepper motor and a standard DB9 connector, which can be used with the 7SC series motion controller to achieve automatic control;
2、Compact integral design,high precision of orthogonal;
3、Driving by high quality ball screw rod,good repeatability,long life,big load;
4、Cross roller guide with comfortable movement,high precision and big load;
5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
6、With zero and limit switch,convenient for accurate positioning and protecion;
7、Square hole in the center,suitable for light through or mounting loading glass;
8、Mounting holes are distributed on the surface and the base for installation and combination.
Ancillary products:

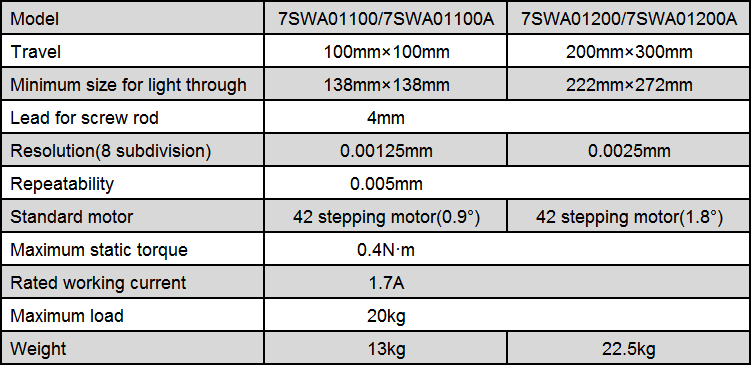

Specifications:

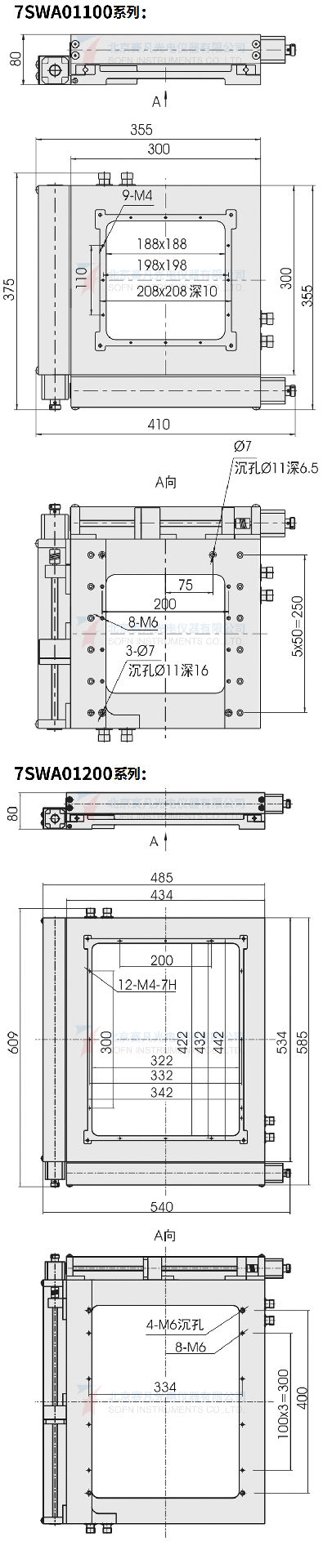

Product drawings:
7SWA01100、7SWA01100A、7SWA01200、7SWA01200A
