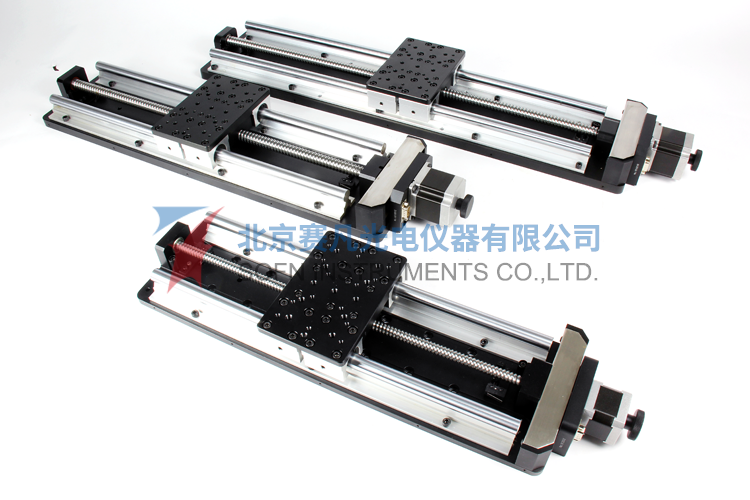

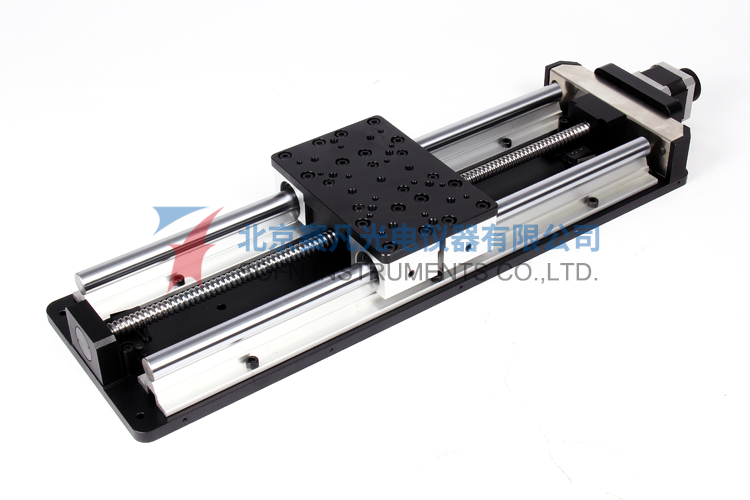

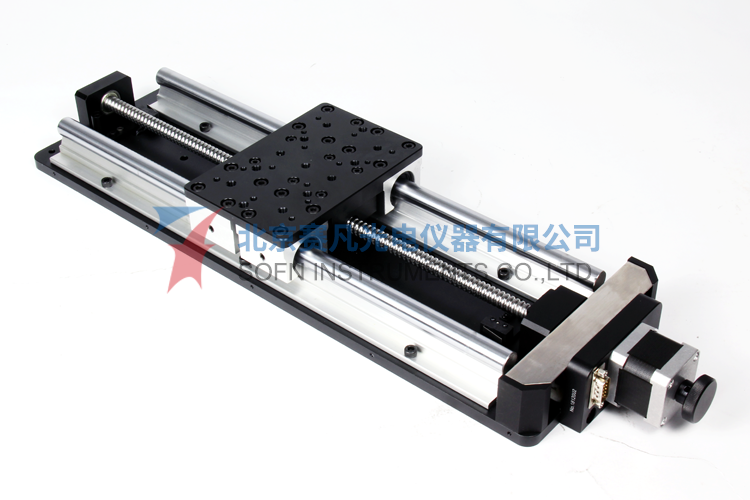

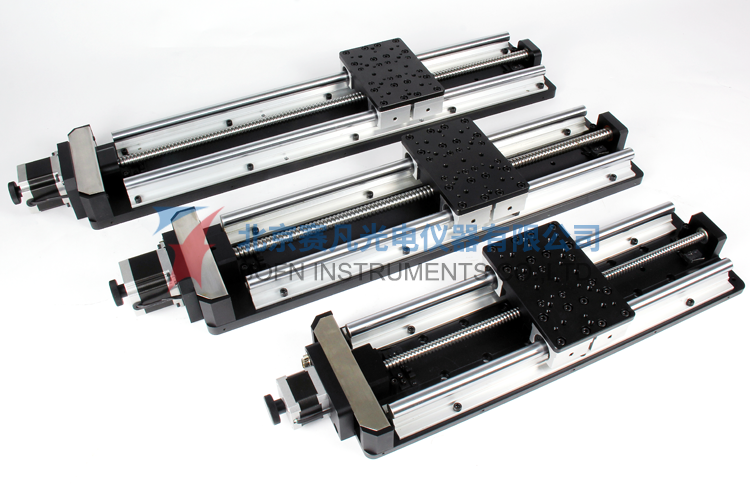

7STA04B Series Motorized Precision Translation Stages
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Driving by high quality ball screw rod,good repeatability and accurary,long life;
3、Screw rod adopts three bearing mounting structure,locking the end of axis to prevent loose,suitable for high speed reciprocating use;
4、Linear bearing guide rail with support(whole body connected with base),comfortable movement,big load,suitable for single axis with middle loading or multi axes;
5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
6、Hand wheel to adjust by manual;
7、With zero and limit switch, convenient for accurate positioning and protection;
8、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
9、Servo motor can be replaced for high speed or big load,particularly suitable for industrial applictions such as laser welding machine.
Ancillary products:

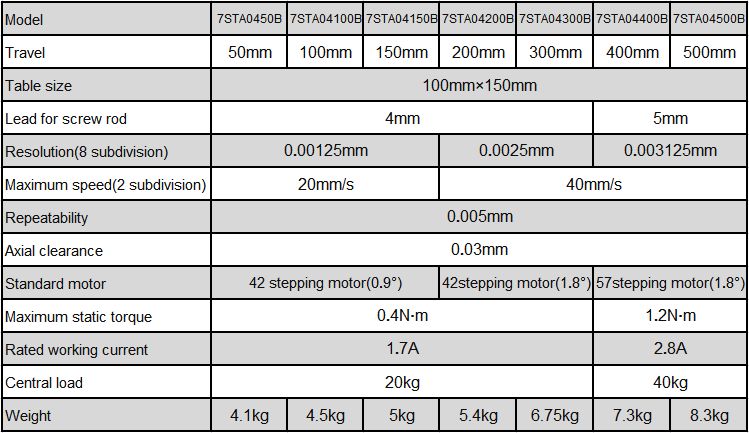

Specifications:

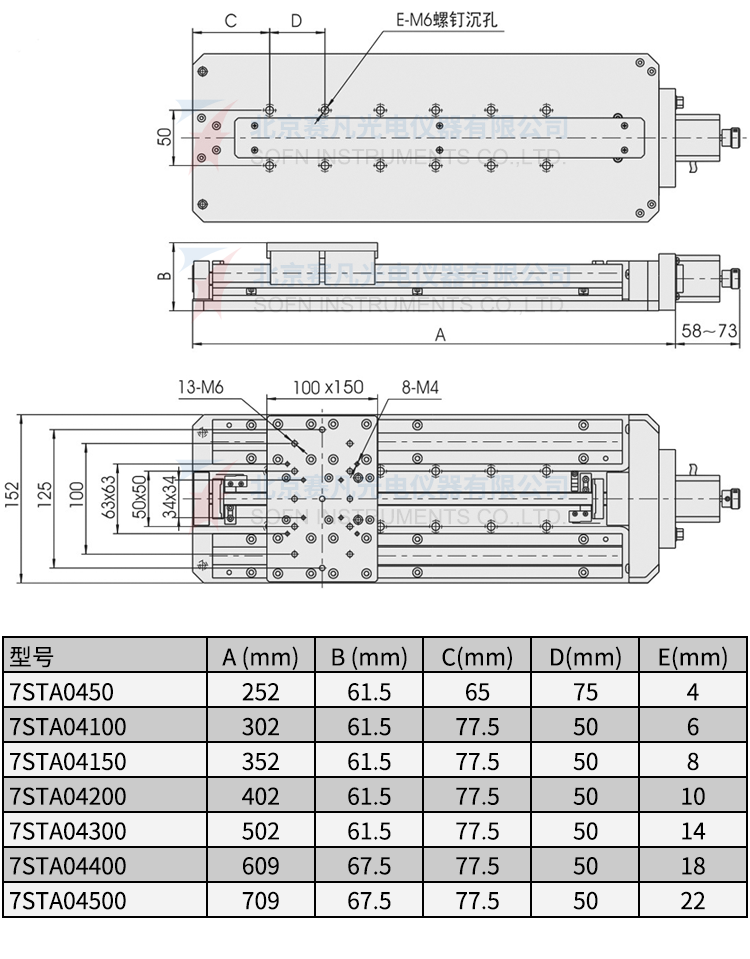

Product drawings:
7STA0450、7STA04100、7STA04150、7STA04200、7STA04300、7STA04400、7STA04500
