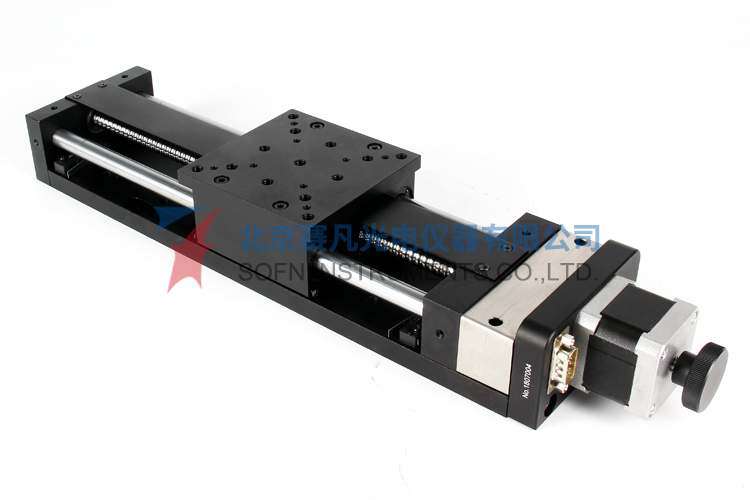

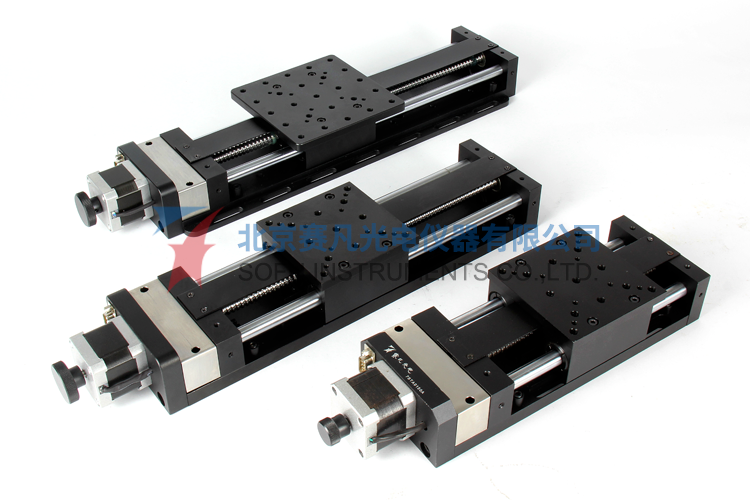

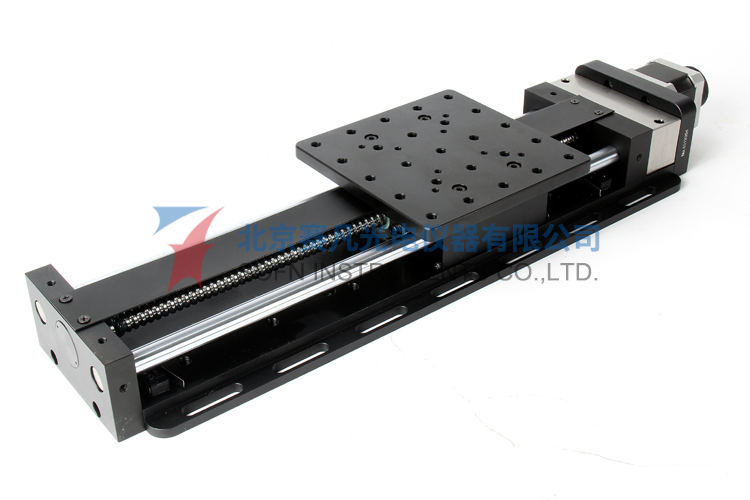

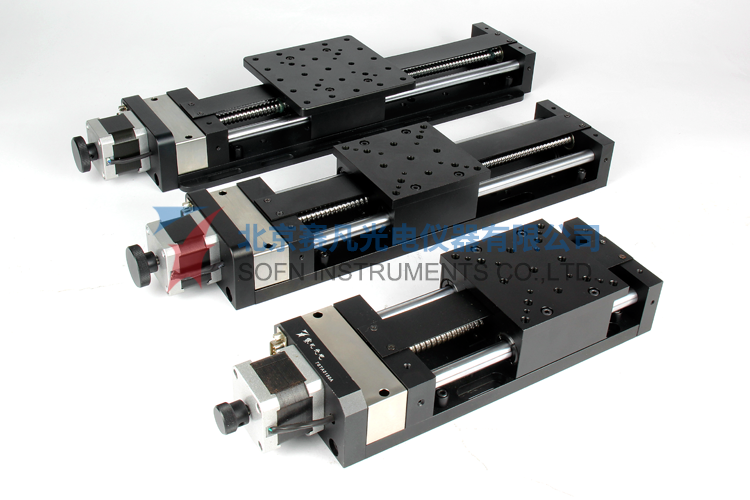

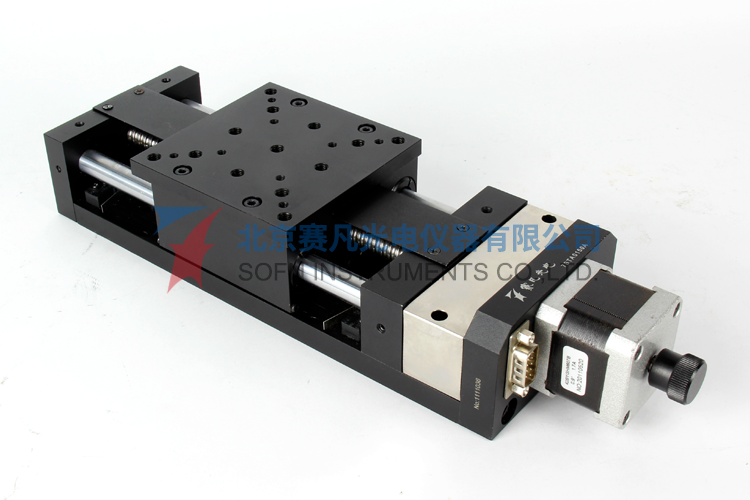

7STA01B Motorized Precision Translation Stages
7STA0150B 、7STA01100B、 7STA01150B 、7STA01200B等
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control; 2、Driving by high quality ball screw rod,good repeatibility,long life; 3、Screw rod adopts three bearing mounting structure,locking the end of axis to prevent loose,suitable for high speed reciprocating use; 4、Precision linear bearing guide rail (supporting for with the middle suspended),comfortable movement,smaller load,suitable for single axis or vertical use; 5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
7STA01B Series Motorized Precision Translation Stages
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug,7SC series motion controllers for automatic control;
2、Driving by high quality ball screw rod,good repeatibility,long life;
3、Screw rod adopts three bearing mounting structure,locking the end of axis to prevent loose,suitable for high speed reciprocating use;
4、Precision linear bearing guide rail (supporting for with the middle suspended),comfortable movement,smaller load,suitable for single axis or vertical use;
5、High quality elastic coupling for connecting motor and ball screw rod,synchronous transmission and little noise;
6、Hand wheel to asjust by manual;
7、With zero and limit switch,convenient fot accurate positioning and protection;
8、Mounting holes with standard distance are distributed on the surface and the base for installation and combination;
9、Servo motor can be replaced for high speed or big load;
10、The one on the bottom has no table when composed to two-zxis stages to reduce height.
Ancillary products:

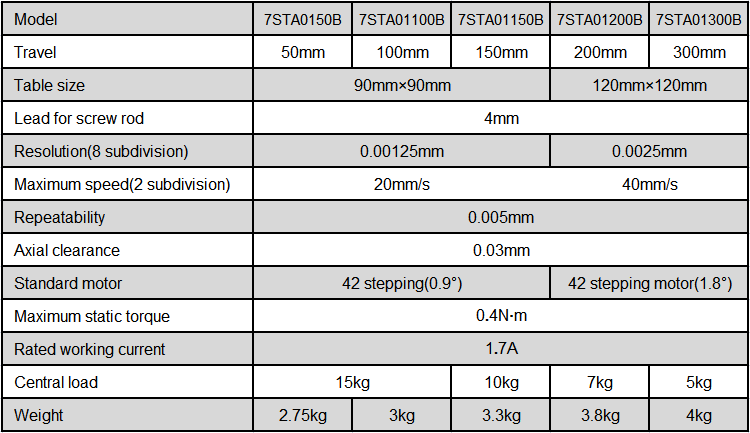

Specifications:

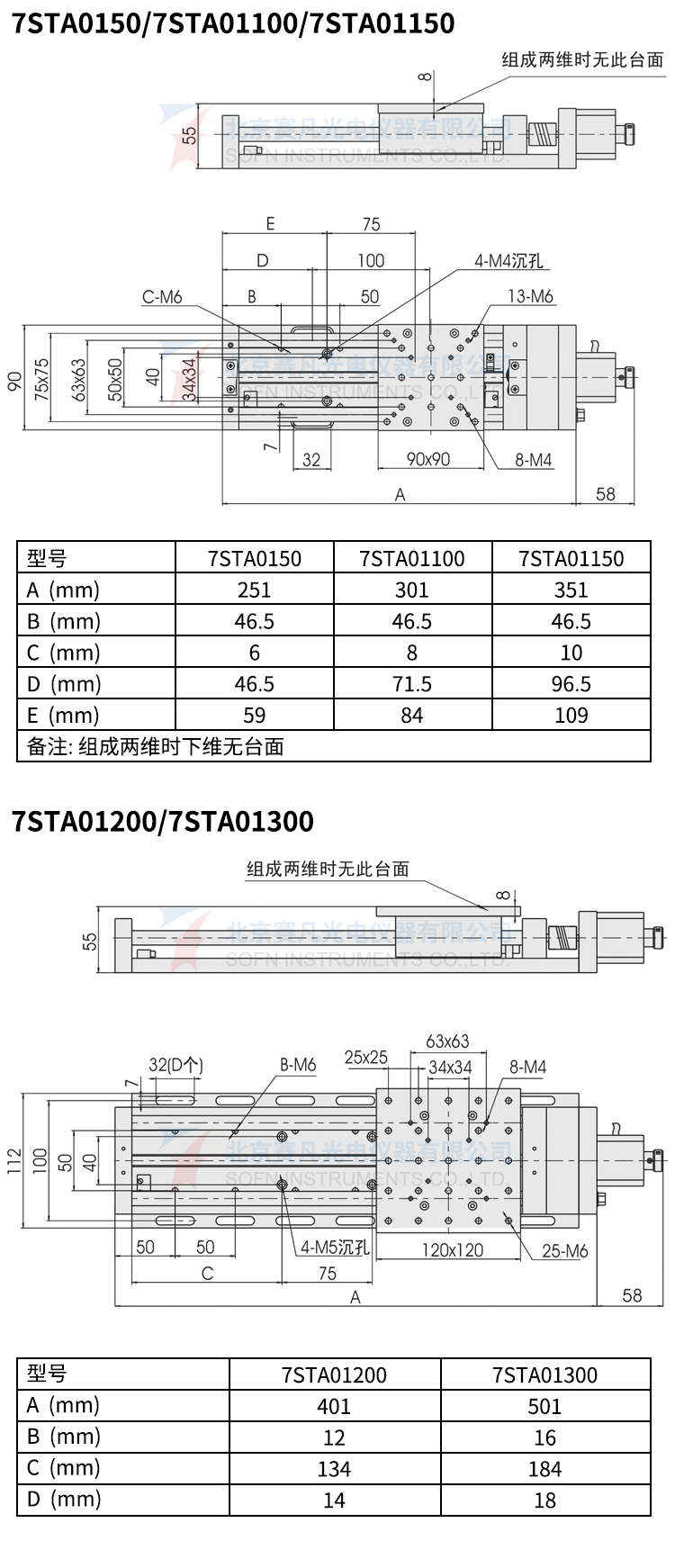

Product drawings:
7STA0150B、7STA01100B、7STA01150B、7STA01200B、7STA01300B
