7SWM03113/7SWM03213 Lithe Triaxial Translation stage

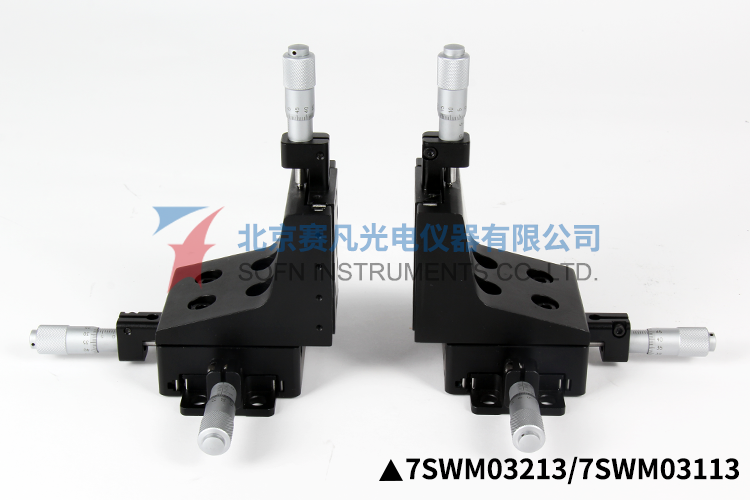

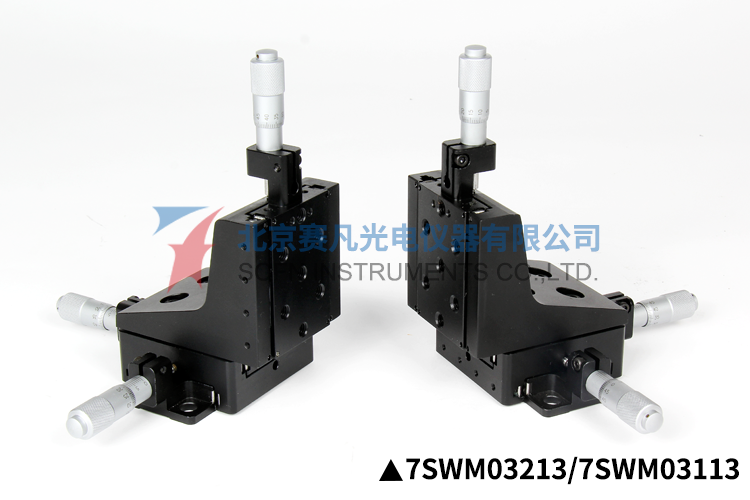

7SWM03113（右手型）/7SWM03213（左手型）
1、Compact structure design,three axes translation adjustment in small space,high precision of orthogonal; 2、Precision steel ball with grinding steel rods,high precision and comfortable movement; 3、Micrometer drive for quantitative reading,spring reset,eliminates backlash; 4、Design for pair of hands,both micrometers are arranged in the same horizontal plane,convenient to operate; 5、Rigid lifting drive,bigger load than spring lifting; 6、Combined with 7MFP02 series two-dimensional tilt mounts,specially for the adjustment of optical fiber devices.

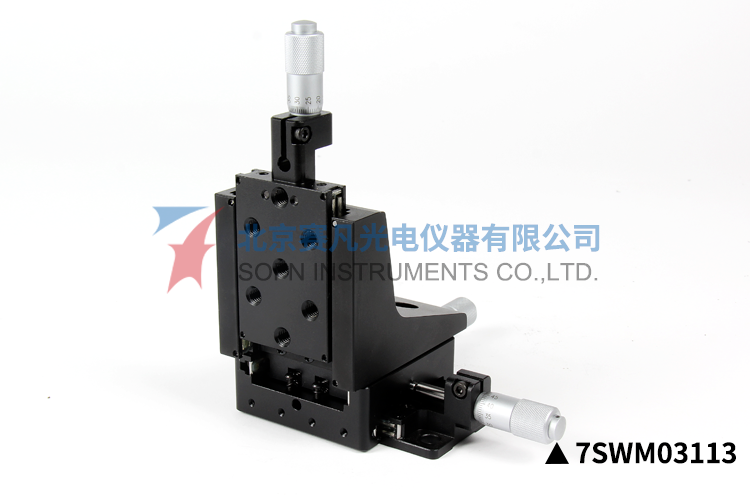

7SWM03113 Lithe Triaxial Translation Stage (right-hand)

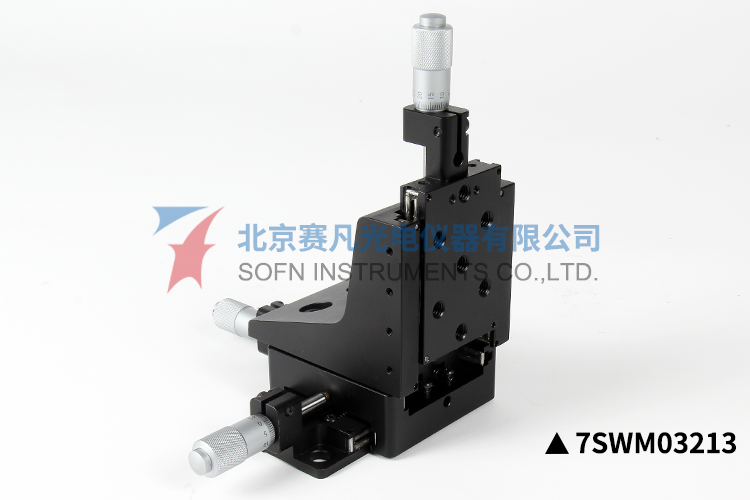

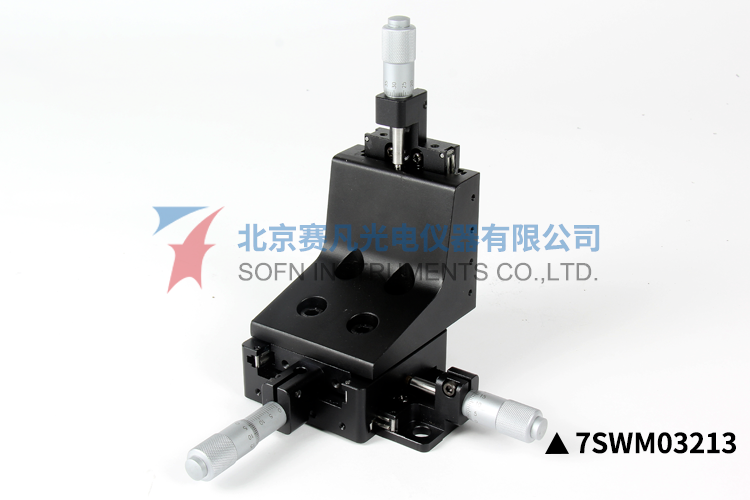

7SWM03213 Lithe Triaxial Translation Stage (left-hand)
Characteristics:
1、Compact structure design,three axes translation adjustment in small space,high precision of orthogonal;
2、Precision steel ball with grinding steel rods,high precision and comfortable movement;
3、Micrometer drive for quantitative reading,spring reset,eliminates backlash;
4、Design for pair of hands,both micrometers are arranged in the same horizontal plane,convenient to operate;
5、Rigid lifting drive,bigger load than spring lifting;
6、Combined with 7MFP02 series two-dimensional tilt mounts,specially for the adjustment of optical fiber devices.
Ancillary products:
Specifications:

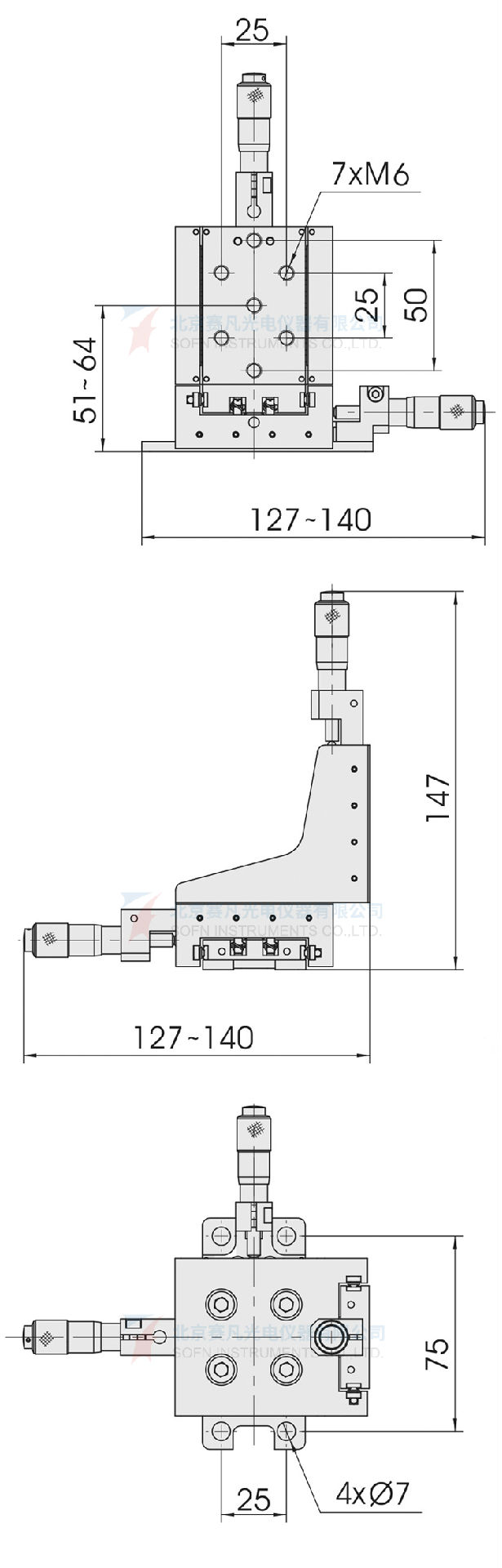

Product drawings:
7SWM03113、7SWM03213
