7SWM02125/7SWM02225 Resolute Biaxial Translation Stage
7SWM02125（右手型）/7SWM02225（左手型）
1、Compact structure design,two axes translation adjustment in small space,high precision of orthogonal; 2、Cross roller guide with comfortable movement,high precision and big load; 3、Micrometer drive for quantitative reading,spring reset, eliminates backlash; 4、Design for pair of hands, both micrometers are arranged in the same horizontal plane,convenient to operate.

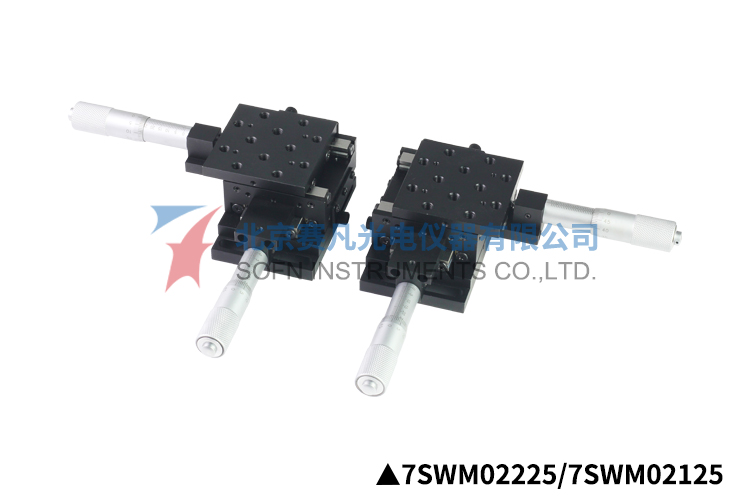

7SWM02125 Resolute Biaxial Translation Stage(right-hand)

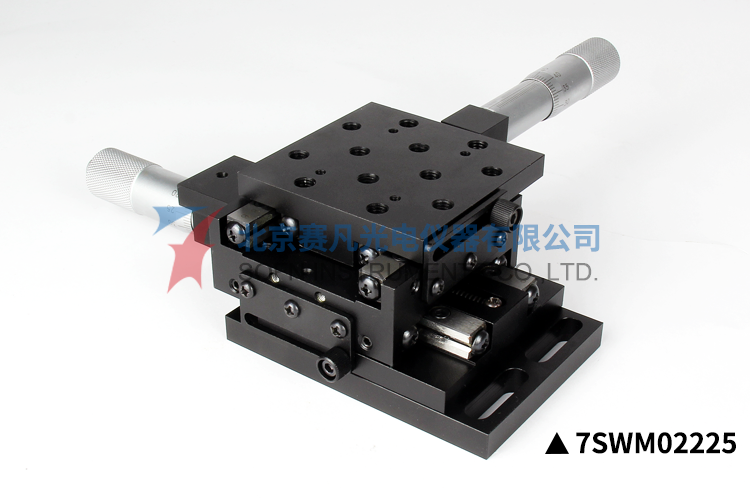

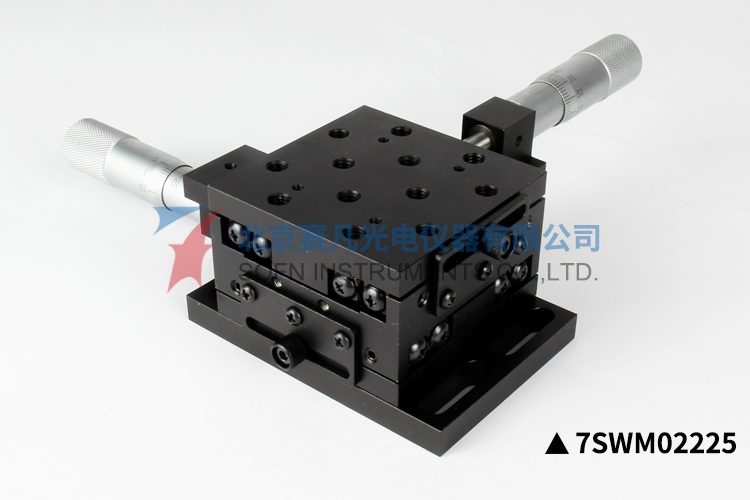

7SWM02225 Resolute Biaxial Translation Stage(left-hand)
Characteristics:
1、Compact structure design,two axes translation adjustment in small space,high precision of orthogonal;
2、Cross roller guide with comfortable movement,high precision and big load;
3、Micrometer drive for quantitative reading,spring reset, eliminates backlash;
4、Design for pair of hands, both micrometers are arranged in the same horizontal plane,convenient to operate.
Ancillary products:
Characteristics:

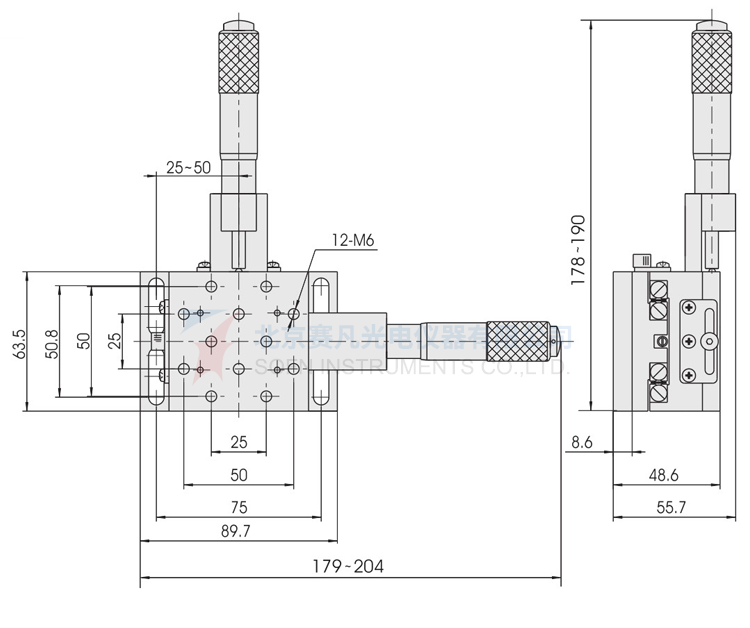

Product drawings:
7SWM02125、7SWM02225
