7SWM04113/7SWM04213 Resolute Triaxial Translation Stage
7SWM04113（右手型）/7SWM04213（左手型）
1、Compact structure design,three axes translation adjustment in small space,high precision of orthogonal; 2、Cross roller guide with comfortable movement,high precision and big load; 3、Micrometer drive for quantitative reading,spring reset,eliminates backlash; 4、Design for pair of hands,both micrometers are arrangde in the same horizontal plane,convenient to operate.
7SWM04113 Resolute Triaxial Translation Stage (right-hand)

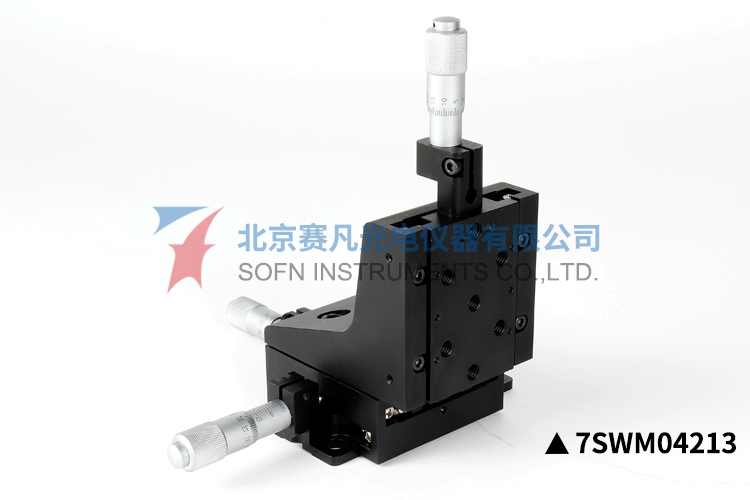

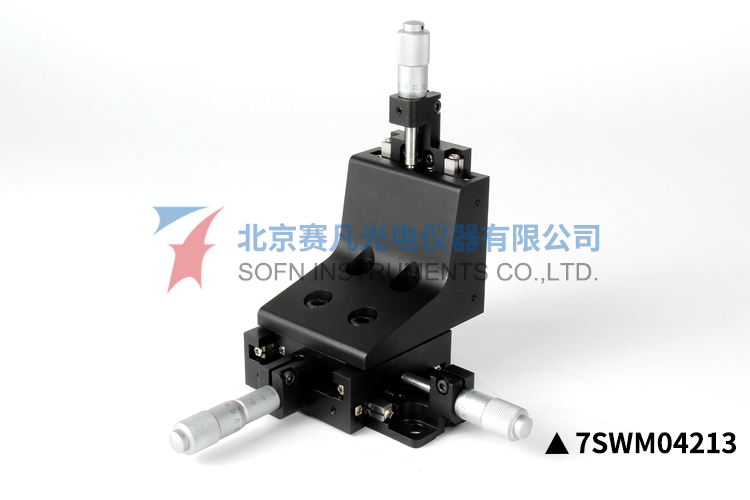

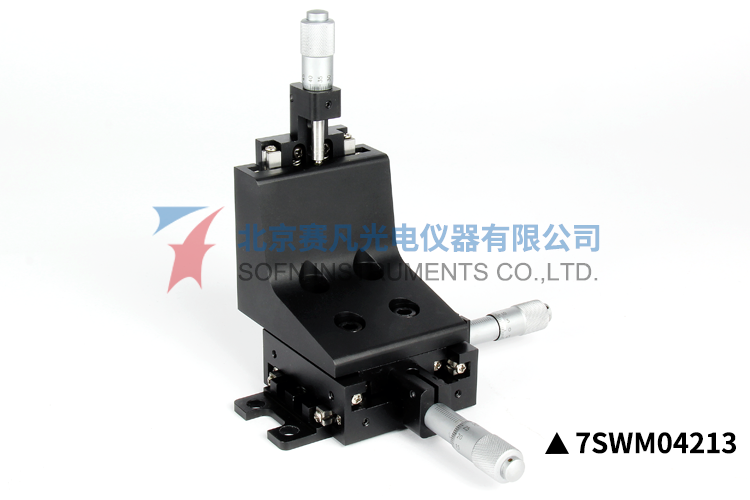

7SWM04213 Resolute Triaxial Translation Stage (left-hand)
Chatateristics:
1、Compact structure design,three axes translation adjustment in small space,high precision of orthogonal;
2、Cross roller guide with comfortable movement,high precision and big load;
3、Micrometer drive for quantitative reading,spring reset,eliminates backlash;
4、Design for pair of hands,both micrometers are arrangde in the same horizontal plane,convenient to operate.
Ancillary products:

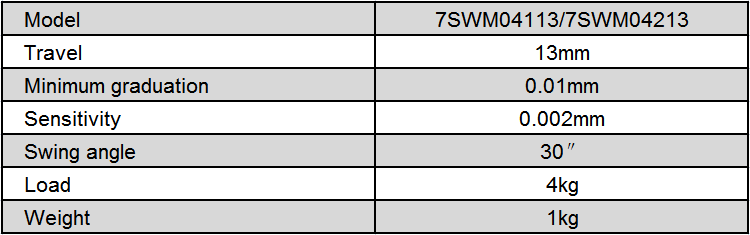

Specifications:

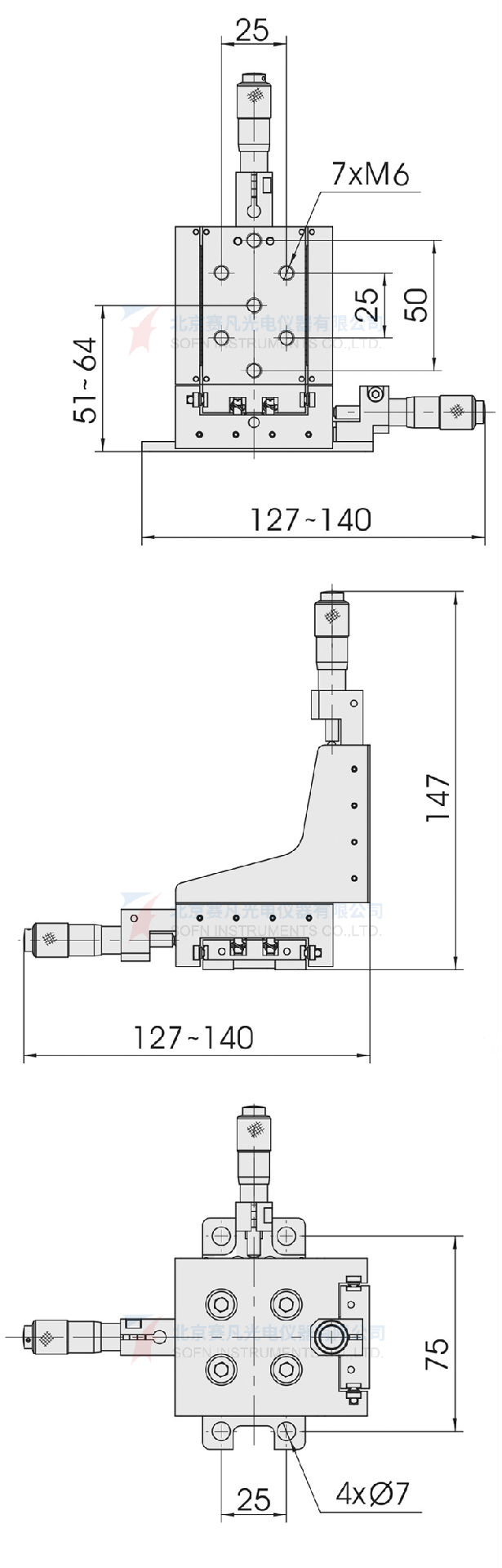

Product drawings:

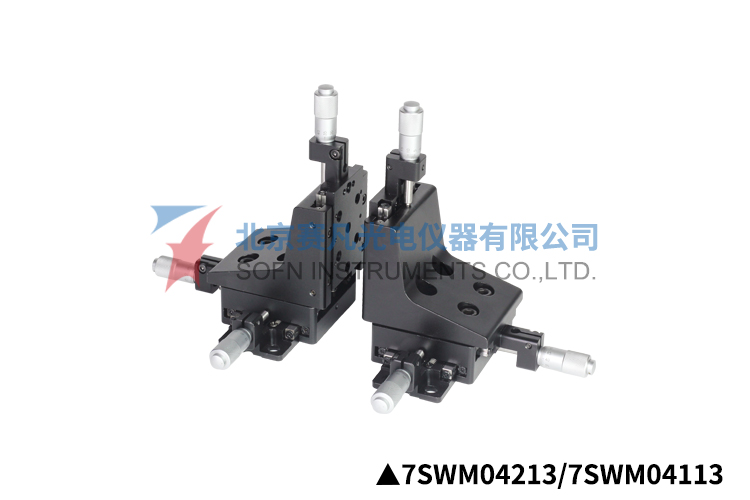

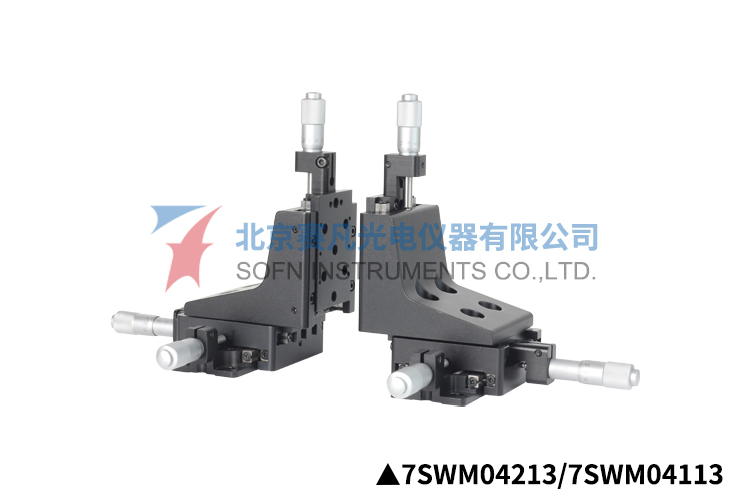

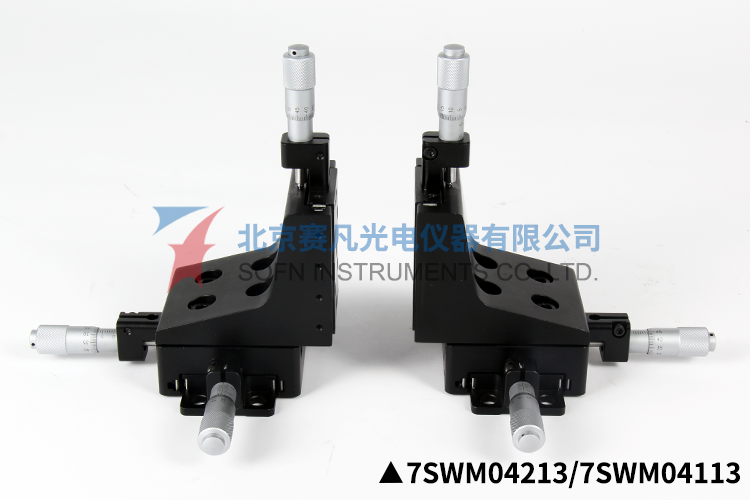

7SWM04113、7SWM04213
