7IS0503A series steady solar simulators
7IS0503A、7IS1003A、7IS1603A、7IS2003A
The 7ISxxx3A series solar simulator adopts a single lamp design and meets the AAA level performance standards. It is a light source instrument used to simulate standard sunlight without interruption all day long. Solar simulators are commonly used in the field of photovoltaic testing, providing efficient and convenient testing conditions for your production and experiments. The solar simulator can be used as a light source for various physical, biochemical, pharmaceutical, environmental protection, and other measurement instruments, as well as other laboratory light sources; It can also cooperate with data acquisition and processing equipment to achieve the measurement of solar cell electrical parameters.
7IS0503A series steady solar simulators
Product Introduction:
The 7ISxxx3A series solar simulator adopts a single-lamp design and meets the AAA-grade performance standard, serving as a light source instrument for simulating continuous standard sunlight under all weather conditions. Solar simulators are commonly used in photovoltaic testing, providing efficient and convenient testing conditions for production and experiments. They can be utilized as light sources for various physical, biochemical, pharmaceutical, environmental, and other measurement instruments, as well as for laboratory lighting. Additionally, when paired with data acquisition and processing equipment, they enable the measurement of electrical parameters of solar cells.
Product Features;
1. Meets the standards for AAA-grade simulators as specified in IEC 6904-9/ASTM E927-05/JIS C 8912:
Grade A spectral matching
Grade A spatial non-uniformity
Grade A Time Stability
2. The simulator light source contains an AM1.5G air mass filter, with an effective spectral range of 400~1100 nm
3. The light source direction of the simulator can be customized to four-way emission as needed, meeting various application scenarios
4. The simulator light source is equipped with an electronic quick-release shutter, allowing control of the light output status as needed
5. The simulator's light source structure is robust, ensuring the entire machine remains deformation-free with stable and long-lasting optical pathways
6. The output current of the power supply controller is adjusted via a knob, allowing the simulator's light intensity to be set within the range of 0.7 to 1.2 SUN

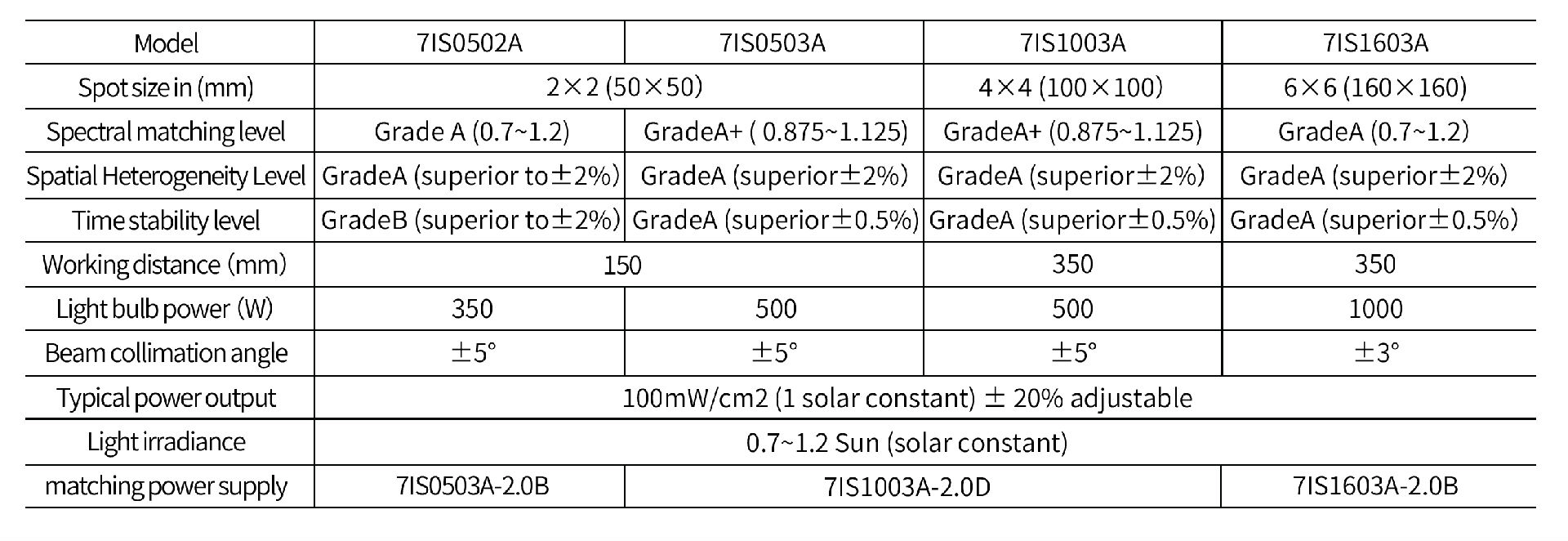

Product Parameters:
Ancillary products:
