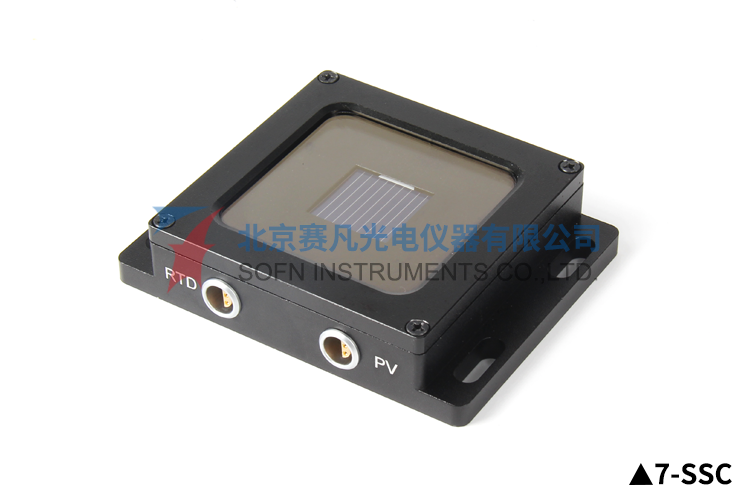

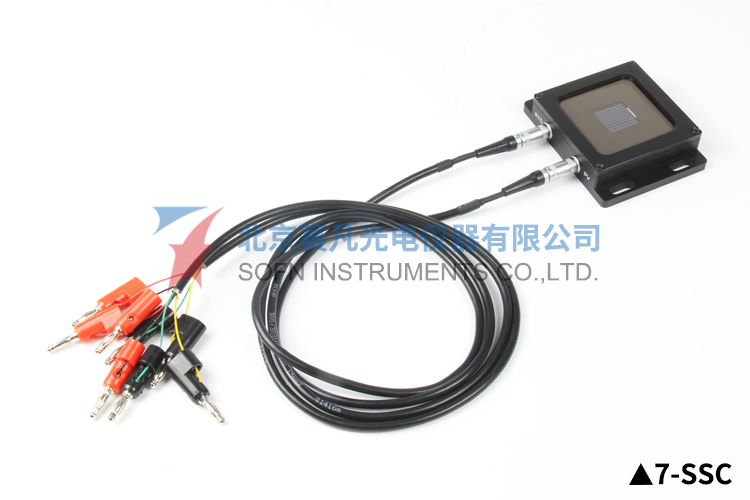

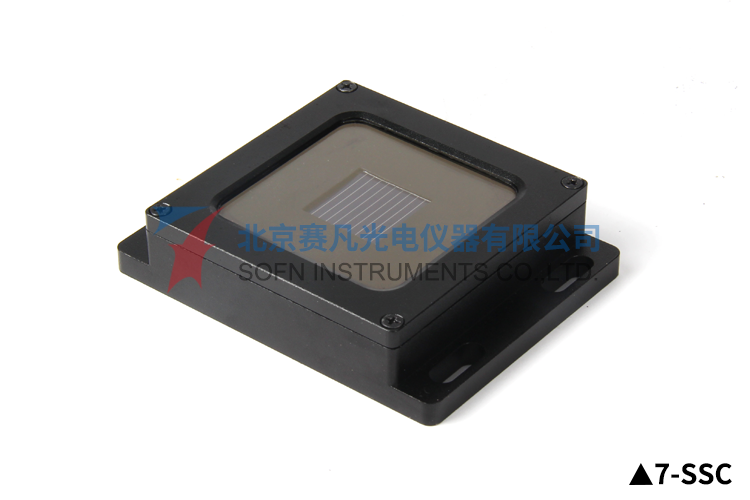

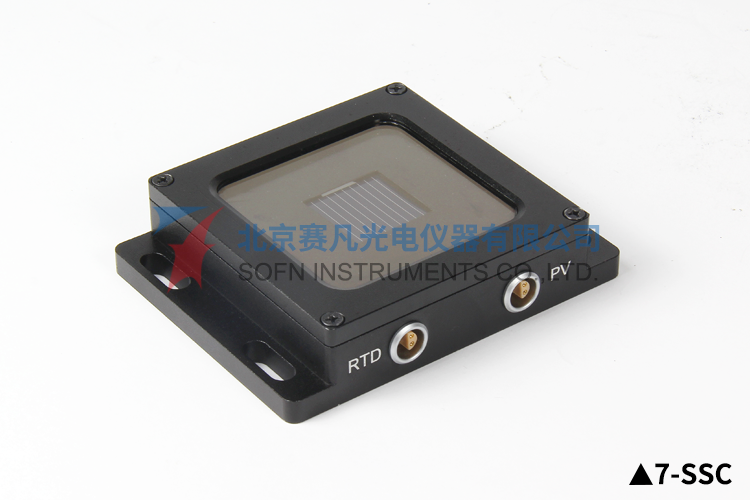

7-SSC series Standard Solar Cells
7-SSC10A、7-SSC10A-IV、7-SSC10A-IPCE、7-SSC10B
1、Photovoltaic cells of standard solar cell 2cm×2cm with mono-crystalline silicon or polycrystalline silicon (can be customized based on needs of users); 2、Cells with uniform surface and good stability will be sealed in a vacuum package after aging and selection; 3、Solar cell will be set on the center of the square aluminum base and equipped with a glass widow for radiation protection, which is with good transparency. The photosensitive glue for sealing is with a similar temperature coefficient; 4、Below the solar cell, a platinum resistance temperature sensor Pt100 has been installed and it is demarcated before packaging; 5、Kelvin connection mode with four outputs.
7-SSC series Standard Solar Cells
Characteristics:
1、Cells with uniform surface and good stability will be sealed in a vacuum package after aging and selection;
2、Solar cell will be set on the center of the square aluminum base and equipped with a glass widow for radiation protection, which is with good transparency. The photosensitive glue for sealing is with a similar temperature coefficient;
3、Below the solar cell, a platinum resistance temperature sensor Pt100 has been installed and it is demarcated before packaging;
4、Kelvin connection mode with four outputs.

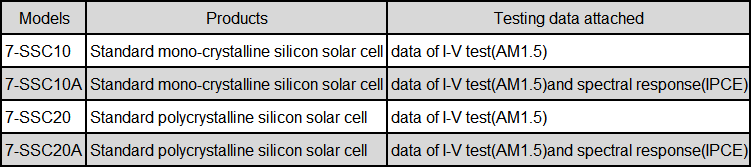

Specifications:

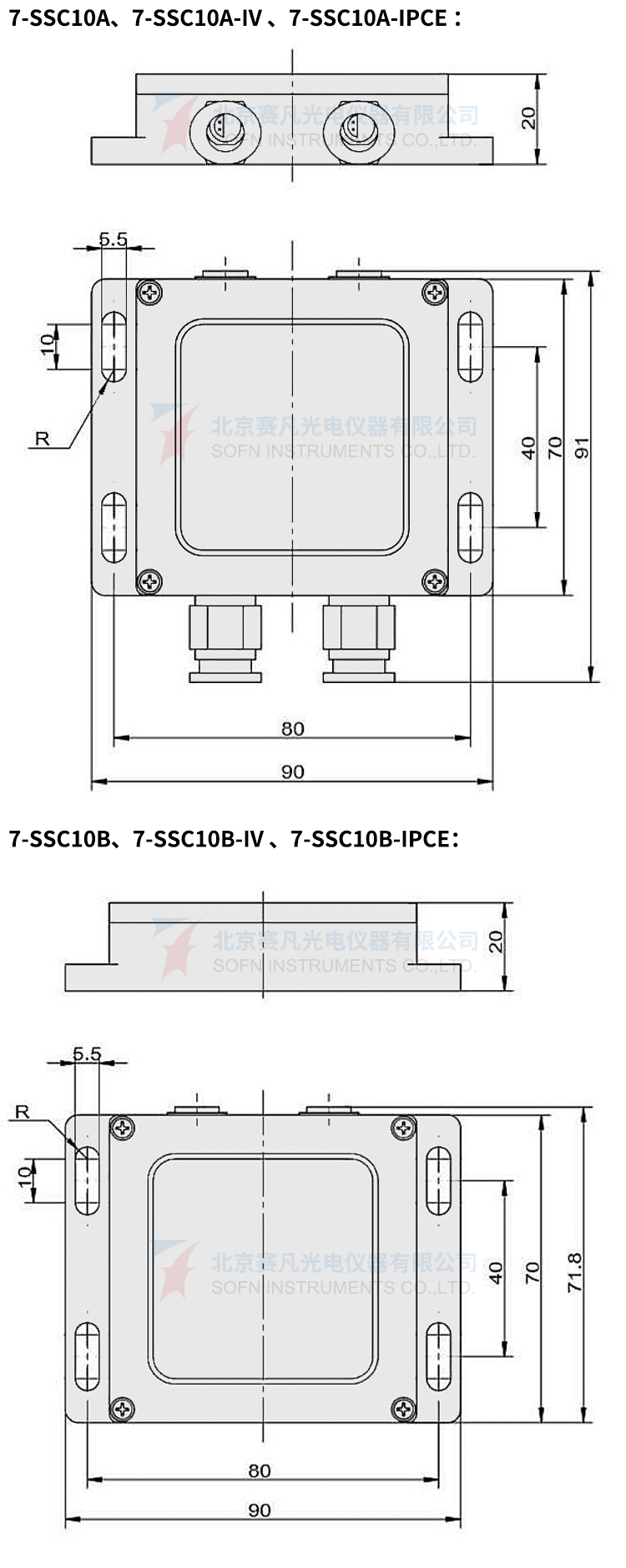

Product drawings:
7-SSC10A、7-SSC10A-IV、7-SSC10A-IPCE、7-SSC10B、7-SSC10B-IV、7-SSC10B-IPCE
