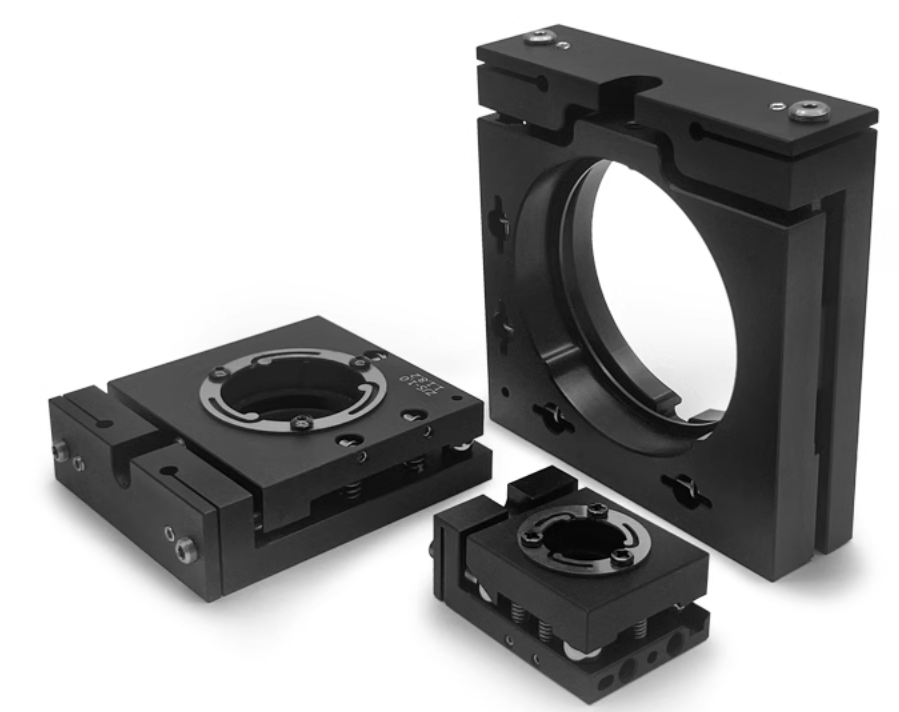

7MM26 series top adjustment two-dimensional adjustment frame
7MM26
The main body is made of high-quality aluminum alloy, and the surface is black anodized; The upper adjustment structure is easy to use: 1), the adjustment hand wheel is placed on the top, which greatly reduces the overall thickness of the adjustment frame, saves space, and there is no need to worry about the obstruction and influence of the light path during adjustment; 2), the product thickness is greatly optimized, and it is more suitable for narrow environments; 3), 3 spring tension distribution makes the tension distribution more uniform; the structure is more stable; 4), high sensitivity: 2 ultra-fine thread pairs with a pitch of 0.25mm are used for adjustment, which has a higher adjustment sensitivity; 5) The bottom M4 threaded hole and φ3 pin positioning hole are used to install and fix the adjustment frame.
Features of the 7MM26 series top-adjustable two-dimensional mirror frame: l The main body is made of high-quality aluminum alloy with black anodized surface; l The top-adjustable structure is easy to use: 1. The adjustment handwheel is placed on the top, which greatly reduces the overall thickness of the adjustment frame, saves space, and does not need to worry about blocking and affecting the optical path during adjustment; 2. The product thickness is greatly optimized and is more suitable for narrow environments; 3. The 3-spring tension distribution makes the tension distribution more uniform; the structure is more stable; 4. High sensitivity: 2 ultra-fine thread pairs with a pitch of 0.25mm are used for adjustment, which has a higher adjustment sensitivity; 5. The bottom M4 threaded hole and φ3 pin positioning hole are used to install and fix the adjustment frame.
