7MMRA1200 Electric Two-dimensional Rotating Mirror Mount
7MMRA1200
1、Equipped with a stepping motor and a standard DB9 plug, 7SC series motion controllers for automatic control ;2、Compact integral desing, high prdcision of orthogonal; 3、Precision grinding worm and worm gear, the stage rotate reverible and comfortable with little backlash;4、High quality elastic coupling for connecting motor and worm,synchronous transmission and little moise; 5、Eacha axis can be rotated 360°;6、Clamping lens easy and reliable;7、Can be customized for other dimensions.
7MMRA1200
Electric Two-dimensional Rotating Mirror Mount
Characteristics:
1、Equipped with a stepping motor and a standard DB9 plug, 7SC series motion controllers for automatic control ;
2、Compact integral desing, high prdcision of orthogonal;
3、Precision grinding worm and worm gear, the stage rotate reverible and comfortable with little backlash;
4、High quality elastic coupling for connecting motor and worm,synchronous transmission and little moise;
5、Eacha axis can be rotated 360°;
6、Clamping lens easy and reliable;
7、Can be customized for other dimensions.

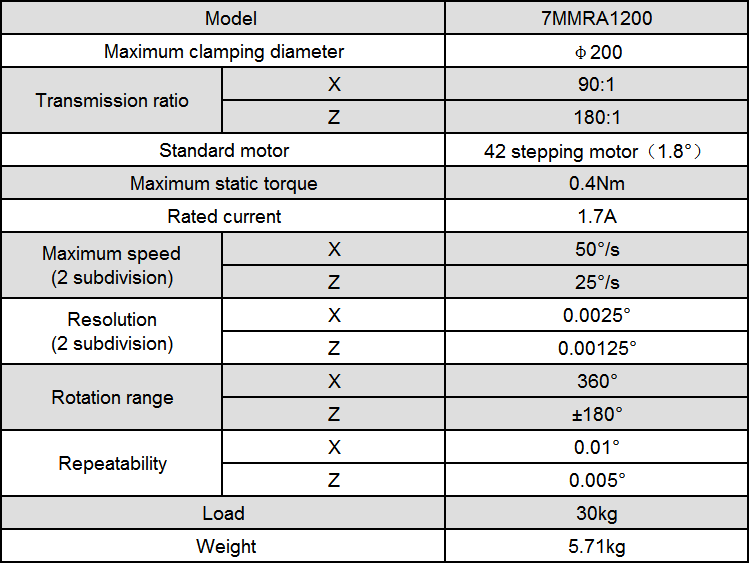

Specifications:

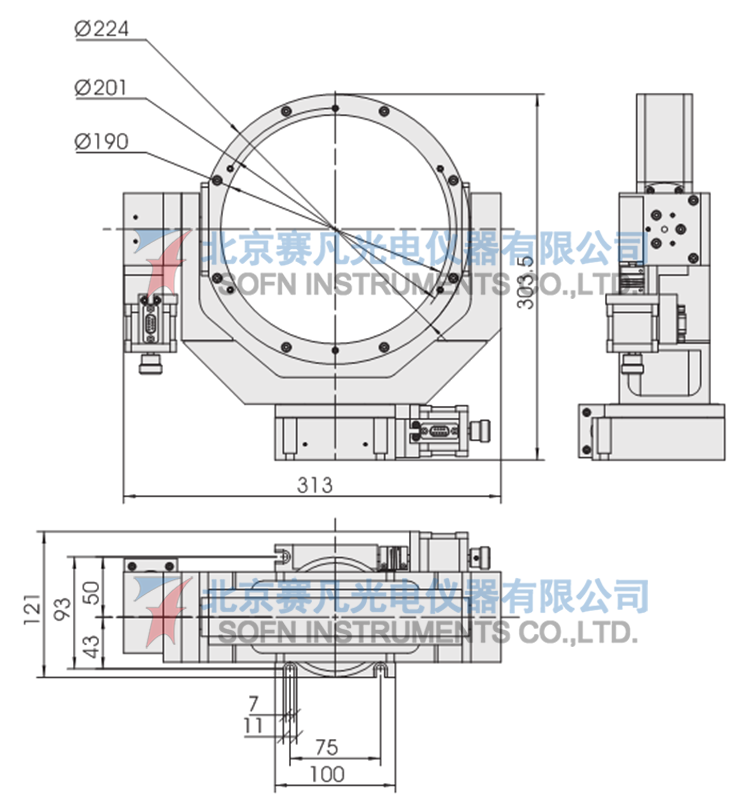

Product drawings:
7MMRA1200
