Home > PRODUCTS > Opto-mechanics > Precision prism mounts

    7MMR4 系列轴棱镜台

    Model：

    7MMR3

    Characteristics：

    主要用于装卡棱镜、立方分束器、角立方等光学元件; 采用2个 0.25mm 螺距的超细牙螺纹副驱动，可实现精细调节; 可以实现对夹持物进行俯仰、旋转和平移的调整; 调整架带有一个安装平板和可拆卸高度可调的夹持压臂; 主体材料为铝合金，表面氧化黑处理，强度较高、耐磨性好; 通用安装孔位，方便向下连接组合，适配性强

    Product?Inquiry Product Inquiry
    CAD?Download CAD Download
    Overviews Details

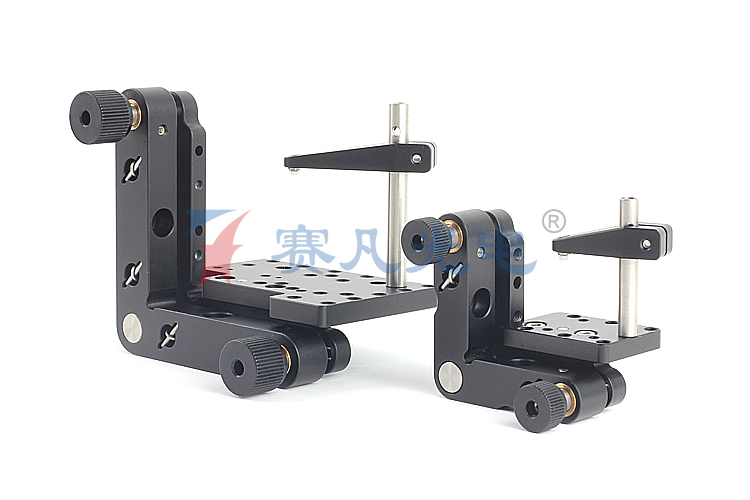

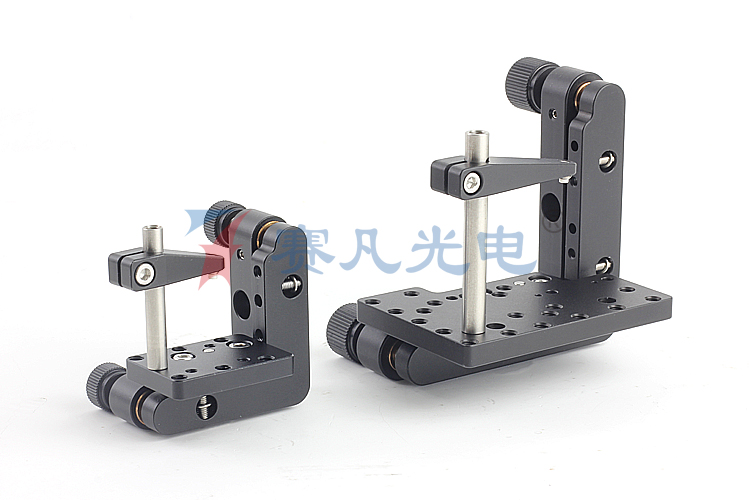

    7MMR4 系列二维调整棱镜台

    特点：

    1、主要用于装卡棱镜、立方分束器、角立方等光学元件

    2、采用 2 个 0.25mm 螺距的超细牙螺纹副驱动，可实现精细调节

    3、可以实现对夹持物进行俯仰、旋转的调整

    4、调整架带有一个安装平板和可拆卸高度可调的夹持压臂

    5、主体材料为铝合金，表面氧化黑处理，强度较高、耐磨性好

    6、通用安装孔位，方便向下连接组合，适配性强


    型号

    二维倾斜调整范围

    装卡高度/mm

    台面尺寸/mm

    自重/g

    7MMR401

    ±3°


    25.4MAX

    25.4x35

    100


    7MMR402

    50.8MAX

    48x70

    200

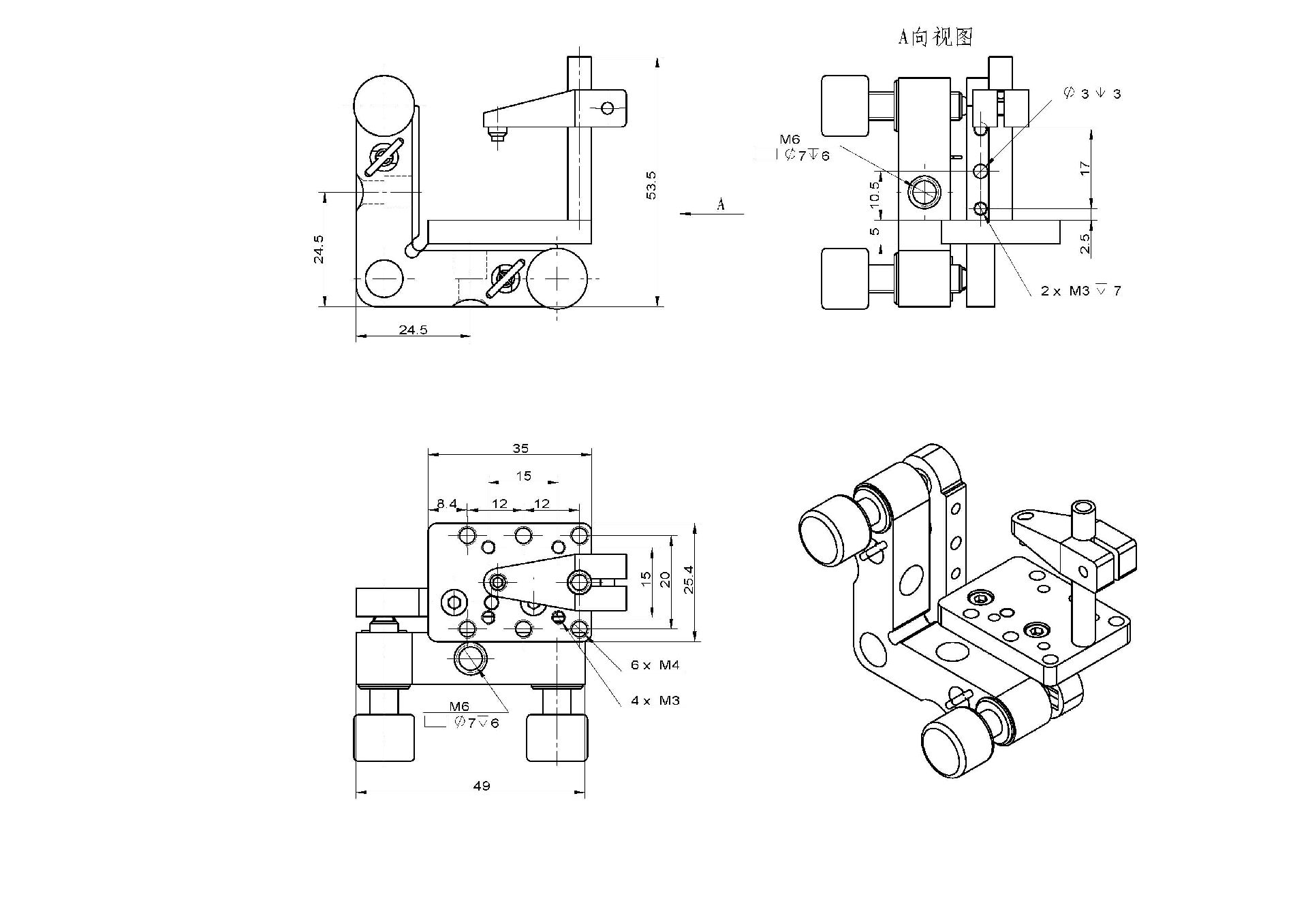

    7MMR401：

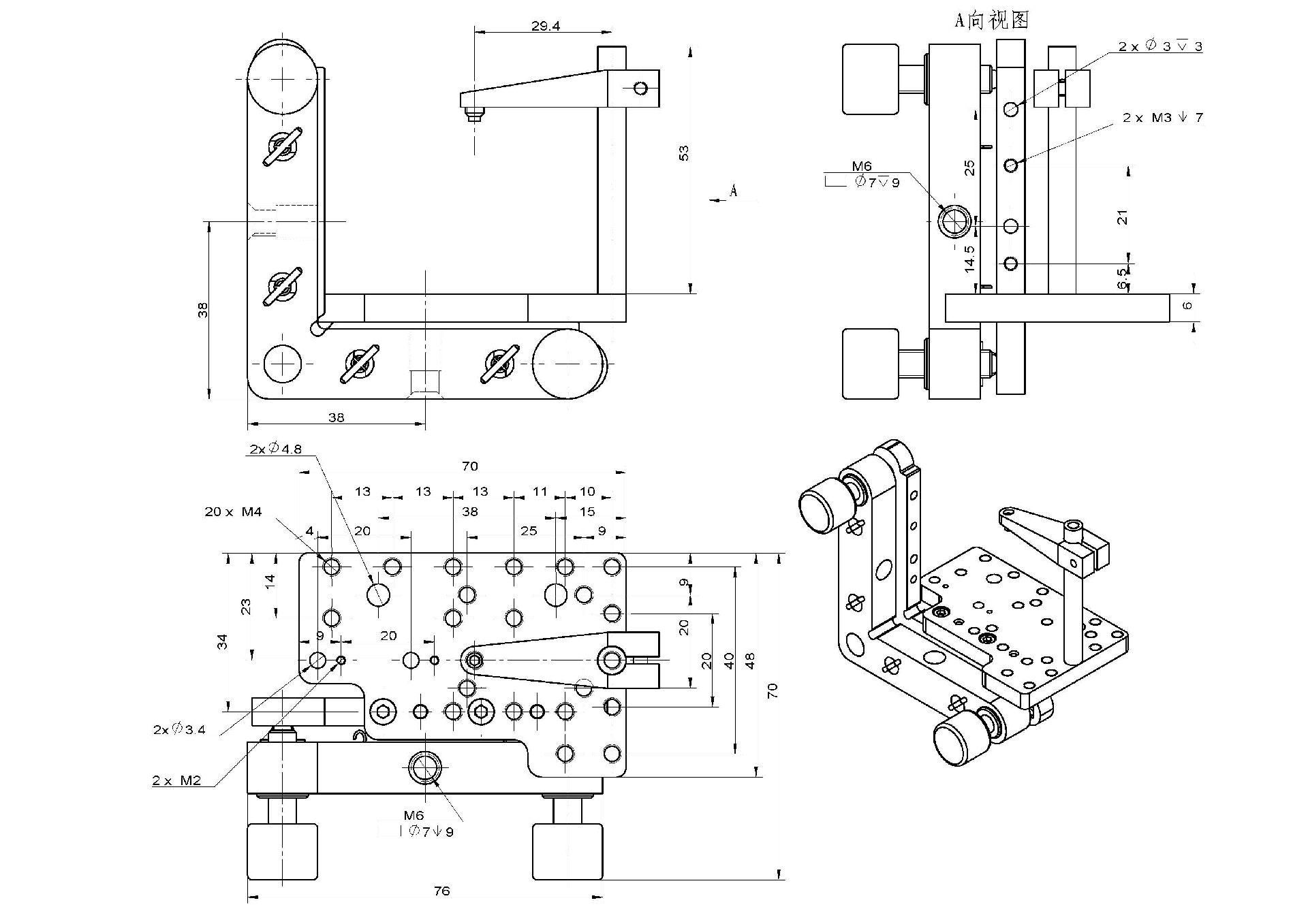

    7MMR402：
